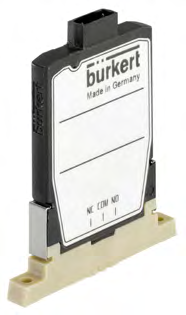

6650 Series Solenoid Valve
The Bürkert 6650 Series Solenoid Valve is a compact, direct-acting 2/2-way solenoid valve with a width of 4.5 mm. It features a media-separated design, making it suitable for aggressive fluids. The valve is designed for high performance in applications requiring precision and reliability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Valve Width | 4.5mm |
| Sealing Material | FFKM (Simriz) |
| Valve Body Material | PEEK |
| Internal Volume | 30μl |
| Fluid Volume | 37μl |
| 2/2-Way | Yes |
| Orifice | DN0.4 and DN0.8 |
| Response Time | <5ms (ISO 12238 standard) |
| Operating Voltage | 24VDC (12V optional) |
| Nominal Power | 5.7W |
| Holding Power | 0.7W |
| Switching Frequency | 15Hz |
| Voltage Tolerance | ±10% |
| Medium Temperature | +15°C to +50°C |
| Ambient Temperature | +10°C to +50°C |
| Protection Class | IP65 |
| Installation Position | Any |
| Installation Position | preferably with actuator upright |
| Pipeline Interface | Corrosion-resistant |
| Connection Method | 2504 type electrical connection |
