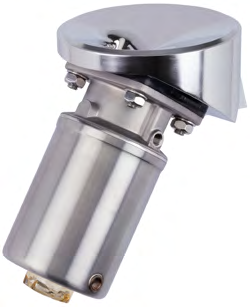

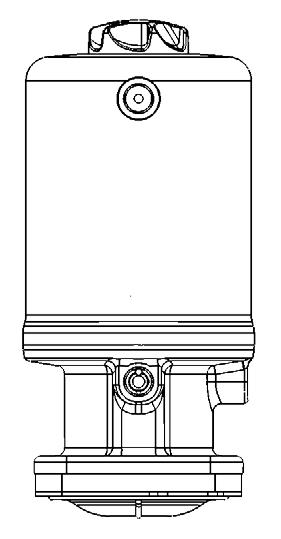

Type 2065 Tank Bottom Diaphragm Valve
The Type 2065 is an externally controlled diaphragm valve with a pneumatically operated stainless steel piston actuator, a diaphragm, and a tank bottom valve body. It is designed for hygienic and sterile applications, offering high flow rates and a wide range of possible uses.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Block body (VH/VI) | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M |
| Diaphragm Material | EPDM (AD), PTFE/EPDM (EA), Advanced PTFE/EPDM (EU), laminate of GYLON and EPDM (ER) |
| Actuator casing | Stainless steel 1.4404 |
| Diaphragm socket | Stainless steel 1.4308 |
| Diaphragm size | 8...50 |
| Standard surface quality | Internally electrically polished: Ra≤0.38μm (NO17) (ASME BPE SF4/DIN HE4); Internally mechanically polished: Ra≤0.5μm (NO14) (ASME BPE SF1) |
| Maximum pilot pressure CF A | 10.5bar |
| Maximum pilot pressure for actuator size 130 | 7.5bar |
| Pilot Air Port | Thread G1/8 |
| Operating Medium | Neutral gases and liquids |
| Operating Medium | highly purified |
| Operating Medium | sterile |
| Operating Medium | aggressive or abrasive mediums |
| Medium Temperature Range | EPDM (AD): -10°C...+143°C; PTFE/EPDM (EA): -10°C...+143°C; PTFE/EPDM (EU): -5°C...+143°C; Laminate of GYLON and EPDM (ER): -5°C...+130°C |
| Control Medium | Neutral gases |
| Control Medium | air |
| Port connection nominal diameter | DN08...DN65 |
| Welded Connection | DIN EN ISO 1127/ISO 4200/DIN 11866 series B; DIN 11850-2/DIN 11866 series A/DIN EN 10357 series A; ASME BPE/DIN 11866 series C |
| Clamp Connection | DIN 32676 series A (DIN pipe); DIN 32676 series B (ISO pipe); ASME BPE |
| Installation Position | 0°C...+80°C, autoclavable |
| Ambient Temperature | 0°C...+80°C, autoclavable |
