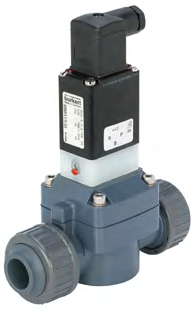

Type 0142 Diaphragm Valve
The Type 0142 is a servo-assisted diaphragm valve designed for aggressive and contaminated media. It features a plastic body, media-separated design, and manual override for service-friendly operation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Seal: FKM, EPDM; Body: PVC; Coil: Epoxy; Valve inner parts: PVDF |
| Port Connection | True union connection |
| Port Connection | threaded socket |
| Electrical Connection | Plug contacts according to DIN EN 175301-803 form A |
| Switching Time | Opening: 100ms-800ms; Closing: 1000ms-4000ms |
| Operating Voltage | 12VDC, 24VDC, 24V50/60Hz, 48V50/60Hz, 110V50/60Hz, 120V50/60Hz, 230V50/60Hz |
| Power Consumption | AC: Inrush power 20VA, Holding power 11VA; DC: Inrush power 5W, Holding power 5W |
| Operating Medium | EPDM: Alkalis, alkaline washing, bleaching lyes; FKM: Oxidizing acids, substances, salt solutions |
| Medium Temperature | PVC: 0°C to +50°C |
| Ambient Temperature | PVC: 0°C to +40°C |
| Degree of Protection | IP65 with cable plug |
| Explosion Protection | Optional: Category 2 (zone 1/21) |
| Installation | As required |
| Installation | preferably with actuator upright |
| Dimensions | Refer to dimension chart |
| Pressure Range | 0.5-6bar |
| Kv Value | 5.0-36.0m³/h |
| Pipe Diameter | DN15-DN50 |
| Thermal Insulation Class | Epoxy coil class H |
