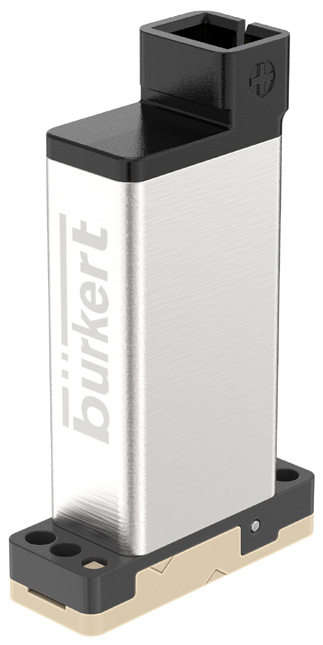

6732 Whisper Valve
The 6732 Whisper Valve is designed for precise fluid control with minimal internal volume, making it ideal for applications requiring high cleanliness and efficiency.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 5 |
| Material | FFKM |
| Material | EPDM |
| Material | PEEK |
| Material | PPS |
| Sealing | FFKM |
| Sealing | EPDM |
| Fluid Volume | Approx. 1.2μl |
| Internal Volume | Approx. 6.5μl |
| Nominal Diameter | DN0.8 |
| Circuit Function | A |
| Service Life | 30 million switching cycles |
| Pressure Range | Up to 3bar (relative pressure: 200mbar) |
| Outlet Pressure | 0 to 1.2bar |
| Duty Cycle | 100% ED |
| Switching Time | <3ms (pressure increase 0 to 10%) |
| Closing Time | <3ms (pressure decrease 100% to 90%) |
| Operating Voltage | 12VDC, 24VDC |
| Electrical Power Consumption | Approx. 1W |
| Electrical Connection | 2503 type plug |
| Pipeline Connection | Burkert 法兰 (7x18.2mm) |
| Protection Class | IP10 with 2503 type plug |
| Ambient Temperature | +15°C to +55°C |
| Ambient Humidity | Any |
| Ambient Humidity | provided no condensation |
| Food and Beverage/Hygiene Certification | FDA |
| Food and Beverage/Hygiene Certification | USP |
