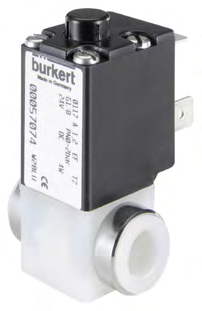

Type 0117 2/2 Way Plunger Solenoid Valve
The Type 0117 is a normally-closed, direct-acting plunger-type solenoid valve with a PTFE-coated diaphragm. It isolates the fluid from the solenoid system, ensuring efficient operation and durability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | PTFE/EPDM, PTFE/FKM, EPDM/FKM |
| Seal | PTFE/EPDM, PTFE/FKM, EPDM/FKM |
| Body | ETFE (TEFZEL) |
| Coil | Epoxy |
| Orifice | DN1.2...DN2.0 |
| Thermal insulation class of solenoid coil | Epoxy coil class H |
| Duty Cycle | 100% continuous operation |
| Switching Frequency | Max. 300c.p.m. |
| Switching Time | Opening: approx. 20ms, Closing: approx. 20ms |
| Operating Voltage | 12VDC, 24VDC, 24VUC, 220/230VUC |
| Electrical power consumption | 4W |
| Voltage Tolerance | ±10% |
| Operating medium with PTFE/EPDM | Alkalis |
| Operating medium with PTFE/EPDM | mineral acids and organic acids |
| Operating medium with PTFE/EPDM | washing and bleaching lyes |
| Operating medium with PTFE/FKM | Oxidising acids and lyes |
| Operating medium with PTFE/FKM | saline solutions |
| Operating medium with PTFE/FKM | oils and waste gases |
| Medium temperature | -10°C...+70°C |
| Viscosity | Max. 21mm²/s |
| Electrical Connection | Plug contacts according to industry standard form A for cable plug Type 2507, Flying leads with 300mm are available on request |
| Degree of Protection | IP65 with cable plug |
| Installation Position | As required |
| Installation Position | preferably with actuator upright |
| Ambient Temperature | Max. +55°C |
| Circuit Function | A |
| Port Connection | G1/8, NPT1/8, UNF1/4-28 |
| Kv value water | 0.06m³/h (1.6mm orifice), 0.09m³/h (2.0mm orifice) |
| Pressure Range | 0...1.5bar (1.6mm orifice), 0...10bar (2.0mm orifice) |
| Seal Material | PTFE/EPDM, PTFE/FKM |
