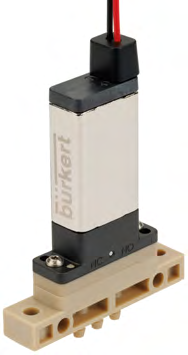

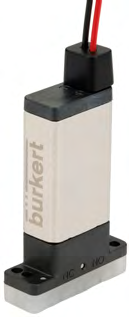

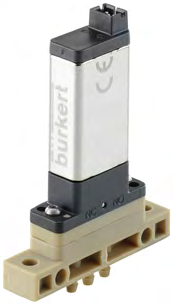

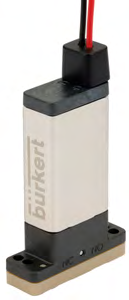

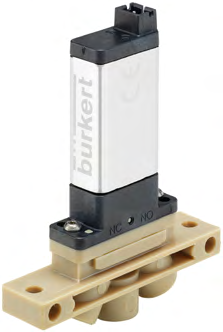

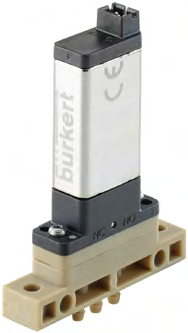

6724 Type
The 6724 Type is a compact solenoid valve designed for precise fluid control in various applications. It features high chemical resistance, low noise operation, and fast switching capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 9×26mm, 26×57mm, UNF1/4英寸-28 |
| Material | PEEK |
| Material | PPS |
| Material | PVDF |
| Material | FFKM |
| Material | EPDM |
| Material | FKM |
| Internal Volume | 38μl, 93μl, 59μl |
| Nominal Diameter | DN0.8, DN1.2 |
| Pressure Range | 真空-5bar, 真空-3bar |
| Switching Time | 3ms (压力增加10-90%), 3ms (压力下降100-90%) |
| Electrical Connection | 12VDC, 24VDC |
| Power Consumption | 1.25W |
| Voltage Tolerance | -10%/+5% (标准版本), ±5% (胶片版本) |
| Medium Temperature | +15°C至+50°C (FFKM), 0°C至+50°C (FKM), 0°C至+50°C (EPDM) |
| Ambient Temperature | +15°C至+50°C (FFKM), 0°C至+50°C (FKM), 0°C至+50°C (EPDM) |
| Viscosity | 最大21mm²/s |
| Certification | IP40, FDA (EPDM版本) |
