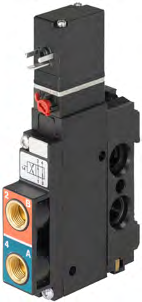

5470 Series Solenoid Valve
The 5470 series solenoid valve is a compact and robust pneumatic valve designed for two-position three-way and two-position four-way applications. It features low power consumption, modular expandability, and compatibility with various actuator types.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 4 and 5 |
| Material | NBR |
| Material | Ultramid |
| Internal Valve Weight | Approx. 120g |
| Pneumatic Base Module Number | MP05 |
| Pressure Range | 2至10bar |
| Duty Cycle | Continuous operation 100% ED |
| Flow Capacity | 300l/min |
| Switching Time (DC) | 打开:15ms, Close:12ms |
| Switching Time (AC) | 打开:15ms, Close:20ms |
| Operating Voltage | 24VDC, 110至120VDC, 220至240VDC |
| Power Consumption | 2至3W |
| Ambient Temperature | -10°C至+55°C |
| Protection Class | IP65 with 2516 type electrical connector |
| Pneumatic Connection | G1/8, NPT1/8, SL6/4mm |
| Certification | ATEX |
| Certification | IECEx |
| Certification | UL Recognized |
| Explosion Protection | PTB 01 ATEX 2175, IECEx PTB 06.0102 |
| North America Certification | UL429, CAN/CSA-C22.2 No.139 |
