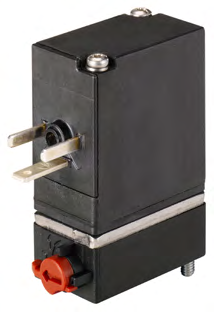

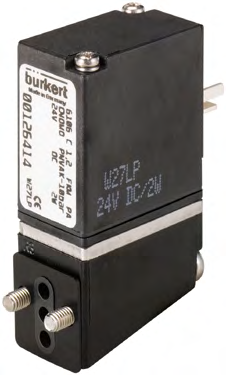

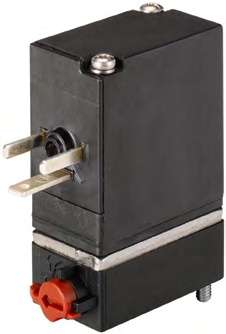

6106 Type Solenoid Valve
The 6106 type solenoid valve is designed for pneumatic applications, featuring a compact design and compatibility with ATEX Ex ia standards.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 16mm |
| Material | FKM |
| Material | PA |
| Material | Stainless Steel |
| Nominal Diameter | 0.9mm, 1.2mm |
| Medium Pressure | Vacuum to 10bar |
| Switching Time | Open: ~25ms, Close: ~25ms |
| Operating Voltage | 12-24V DC |
| Power Consumption | 1W, 2W |
| Frequency | 16Hz |
| Ambient Temperature | -10°C to +55°C |
| Protection Class | IP65 (with 2516 connector), IP30 (with 2505 connector) |
| Working Medium | Filtered air (5μm) |
| Connection Interface | Burkert base (16x27mm), CNOMO base |
| Certification | ATEX II 2G Ex ia IIC T5, T6 Gb, IECEx Ex ia IIC T5, T6 Gb |
