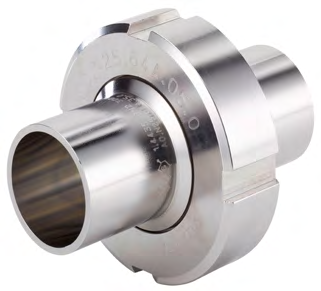

Type BBS-03 Hygienic Threaded Connection
The Type BBS-03 is a hygienic threaded connection designed according to DIN 11864-1 standards, ensuring sterile applications with virtually gap-free connections. It is part of the BBS modular system and supports traceability of all wetted materials.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material (Wetted) | Stainless steel 1.4435/316L |
| Material (Non-wetted) | Stainless steel 1.4305/303 or equivalent |
| Seal Material | EPDM |
| Seal Material | FEP |
| Surface Quality | Wetted surface: RA ≤ Ra 0.76μm (ASME BPE SF3), other surfaces on request |
| Operating Pressure (Aseptic Variant) | DIN DN10-DN40: 40bar, DIN DN50-DN100: 25bar, ISO DN08-DN25: 40bar, ISO DN32-DN80: 25bar, ASME DN½''-DN1½'': 40bar, ASME DN2''-DN4'': 25bar |
| Operating Pressure (Sterile Orbital Variant) | 0.2bar abs.-16bar |
| Operating Medium | Gases or liquids |
| Medium Temperature (EPDM) | -40°C to +90°C (short-term: +140°C) |
| Medium Temperature (FEP) | -60°C to +160°C (short-term: +205°C) |
| Nominal Diameter (Aseptic Variant) | DIN DN10-DN100, ISO DN08-DN80, ASME DN½''-DN4'' |
| Nominal Diameter (Sterile Orbital Variant) | DIN DN04-DN50, ISO DN06-DN50, ASME DN¼''-DN2'' |
| Port Connection | Rounded thread according to DIN 405-1 (aseptic variant) or metric fine thread (sterile orbital variant) |
| Ambient Temperature | -20°C to +80°C |
| Certificate | Material certificate 3.1 |
| Food and Beverage Hygiene Certification | FDA |
| Food and Beverage Hygiene Certification | USP |
