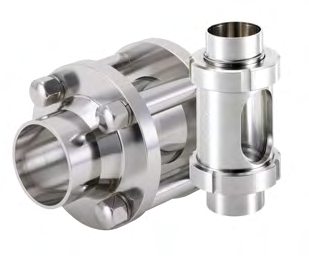

Type BBS-3F Inline Sight Glass
The Type BBS-3F inline sight glass enables quick visual control of ongoing processes. It is available in full view and partial view variants, providing a 360° or 180° monitoring window for liquid flow visibility. Suitable for horizontal or vertical installation, it is designed for CIP and SIP applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material Wetted | Stainless steel 1.4435/316L |
| Material Non-wetted | Stainless steel 1.4305/303 or equivalent |
| Seal Material | EPDM |
| Seal Material | FEP |
| Glass Material | Borosilicate glass |
| Surface Quality | Wetted surface: RA ≤ Ra 0.76μm (ASME BPE SF3) |
| Operating Pressure | 0.2bar abs...8bar |
| Operating Medium | Gases or liquids |
| Medium Temperature EPDM | -20°C...+90°C, short-term...+140°C |
| Medium Temperature FEP | -20°C...+130°C, short-term...+150°C |
| Ambient Temperature | -20°C...+80°C |
| Certificate | Material certificate 3.1 |
| Food and Beverage Hygiene Certification | FDA |
| Food and Beverage Hygiene Certification | USP |
| Full View Variant Nominal Diameter | DIN DN08...DN100, ISO DN08...DN100, ASME DN¼"...DN4" |
| Standard Variant Nominal Diameter | DIN DN08...DN50, ISO DN08...DN50, ASME DN¼"...DN2" |
