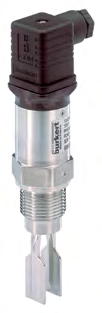

Type 8110 Vibrating Level Switch
The Type 8110 is a vibrating level switch designed for liquid level detection, utilizing a tuning fork as the sensor element. It is suitable for industrial applications such as overflow or run-dry protection and operates reliably even under challenging conditions like turbulence, air bubbles, or foam generation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Plastic PEI (Polyetherimide) and stainless steel 316L (1.4404) |
| Surface Quality | Ra<3.2μm (thread)/Ra<0.8μm (clamp) |
| Weight | Approx. 250g |
| Measured quantity | Limit level of liquids |
| Operating Mode | Min/max changeover by electrical connection |
| Hysteresis | Approx. 2mm with vertical installation |
| Switching Delay | Approx. 500ms (On/Off) |
| Operating Voltage | 9.6...35VDC (PNP, IO-Link), 20...253VAC/DC (Contactless electronic switch) |
| Voltage Loss | Max. 3VDC |
| Switching Voltage | Max. 34VDC |
| Load Current | Max. 250mA |
| Resistive Load | R<0.5kΩ |
| Power Consumption | Max. 0.5W |
| Resonance Frequency | Approx. 1100Hz |
| Process Temperature | -40...+100°C (-40...+212°F), +150°C (+302°F for clamp process connection) |
| Process Pressure | 1...64bar/100...6400kPa (14.51...928.64psi) |
| Dynamic Viscosity η | 0.1...10000mPa·s |
| Density | Standard sensitivity: 0.7...2.5g/cm³ (High sensitivity: 0.5...2.5g/cm³ on request) |
| Flow Velocity | Max. 6m/s (with a viscosity of 10000mPa·s) |
| Process Connection | Thread G or NPT, ½", ¾", 1"; clamp 2" |
| Ambient Temperature | -40...+70°C (-40...+158°F) |
| Storage and Transport Temperature | -40...+80°C (-40...+176°F) |
| Relative air humidity | 20...85%, without condensation |
| Electrical Connection | Cable plug acc. to EN 175301-803 or M12×1 male connector |
| Degree of Protection | IP65/IP66/IP67 with respective connectors |
