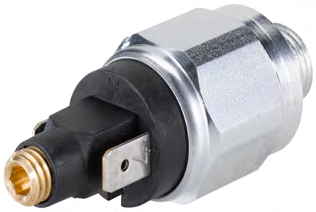

Type TCD001 Pressure Switch
The pressure switch is designed to convert adjustable pneumatic signals into electrical signals, suitable for neutral gases and liquids.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Housing Material | Brass |
| Housing Material | Galvanized steel |
| Housing Material | Stainless steel |
| Diaphragm Material | NBR |
| Diaphragm Material | UR seal |
| Switching Function | Normally open contact |
| Switching Function | Normally closed contact |
| Switching Function | Changeover contact |
| Mechanical Service Life | 10⁶ |
| Reference Voltage | Max. 42V, Max. 250V |
| Switching Current | Max. 2A, Max. 5A |
| Setting Range | 0.3...2bar / 1...10bar / 10...70bar / 50...200bar |
| Bursting Pressure | 20bar / 300bar |
| Switch-back Difference | 10...15% / 15...25% |
| Switching Frequency | Max. 200/min |
| Operating Medium | Air |
| Operating Medium | Hydraulic oil |
| Operating Medium | Oil emulsion |
| Operating Medium | Water |
| Medium Temperature | -25...+85°C |
| Protection Class | IP00 (IP20 with protection cap), IP65 (cable plug Type 2518) |
