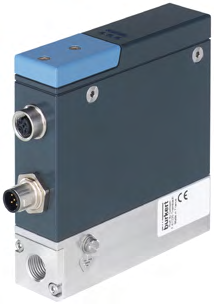

Type 8752 Liquid Flow Controller (LFC)
The Type 8752 Liquid Flow Controller (LFC) is a high-precision device designed for dynamic control of liquid flow rates in industrial processes. It ensures accurate and reliable flow measurement and control, making it suitable for a wide range of applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 4 |
| Materials | FKM |
| Materials | EPDM |
| Materials | FFKM |
| Sealing | FKM |
| Sealing | EPDM |
| Sealing | FFKM |
| Base Body | 1.4404/316L |
| Materials in Contact with Media | 1.4404/316L, 1.4435/316L, PCTFE, Sealing materials |
| Weight | Approx. 1000g |
| LED Indicator | RGB-LED compliant with NAMUR NE107 standard |
| Flow Range (Qn) | 0.9-55l/min (15-916.67ml/min) (water) |
| Operating Pressure Range | Min. 0 to Max. 6bar |
| Measurement Accuracy | ±0.5% o.r. ±0.5% F.S. (under reference conditions) |
| Repeatability | ±0.5% F.S. |
| Response Time (t95) | <500ms |
| Electrical supply voltage | 24VDC |
| Power Consumption | LFM: <1W, LFC: max. 3 to 6W (depending on type/model) |
| Residual Ripple | ±2% |
| Electrical Connection | M12 plug, 5-pin |
| Ambient Temperature | -10°C to +55°C |
| Media temperature | -10°C to +70°C |
| Storage Temperature | -10°C to +70°C |
| Viscosity | 0.4 to 4mPa·s |
| Analog signal interface | 0 to 20mA, 4 to 20mA, 0 to 10V, 0 to 5V |
| Input Impedance | >20kΩ (voltage), <300Ω (current) |
| Output impedance | <10mA (current output) |
| Digital Communication Interface | büS/CANopen, PROFIBUS DPV1, Industrial Ethernet, EtherCAT, EtherNet/IP, Modbus TCP, PROFINET |
| Pipeline Interface | G1/4, NPT1/4, G3/8, NPT3/8, bottom connection, clamp connection |
| Protection Class | IP65 |
| Environment and installation | Horizontal or vertical installation |
| Relative Humidity | 55°C, <95%, non-condensing |
