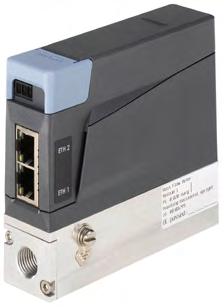

8741 Type Gas Mass Flow Controller (MFC)/Mass Flow Meter (MFM)
The 8741 Type Gas Mass Flow Controller (MFC)/Mass Flow Meter (MFM) is designed for various industrial applications, offering precise gas flow control and measurement with high reliability and fast response time.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section '4. Size' |
| Material | FKM or EPDM, PC, stainless steel 1.4404/316L |
| Operating Pressure | MFM: max 25bar, MFC: max 25bar |
| Flow Range | 10ml/min to 160l/min |
| Accuracy | ±0.8% o.r., ±0.3% F.S. |
| Repeatability | ±0.1% F.S. |
| Response Time | <300ms |
| Operating Voltage | 24VDC |
| Current Consumption | MFM: max 5W, MFC: max 19.5W |
| Voltage Error | ±10% |
| Interface Versions | büS/CANopen, Modbus RTU |
| Ambient Temperature | -10°C to +70°C |
| Storage Temperature | -10°C to +70°C |
| Relative Humidity | <95%, non-condensing |
| Protection Class | IP20 |
| Typical Gas Flow Range | Refer to section '6.2 Typical Gas Flow' |
| Certifications | UL, FDA, USP, EC 1935/2004 |
| Connection Methods | büS/CANopen, Modbus RTU, Industrial Ethernet |
| Display | RGB-LED compliant with NAMUR NE107 |
| Signal Input | 4-20mA, 0-20mA, 0-10V, 0-5V |
| Signal Output | 4-20mA, 0-20mA, 0-10V, 0-5V |
| Digital Communication Interface | büS/CANopen, Modbus RS-485/RTU, Industrial Ethernet |
| Pipeline Connection | G¼, NPT¼, VCR fittings |

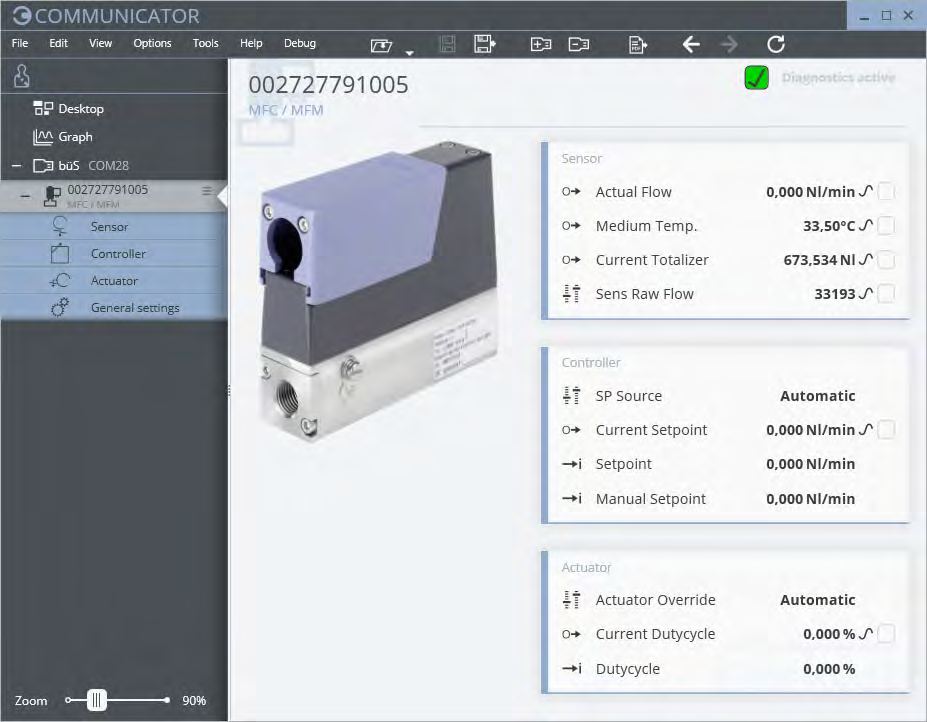

| Software | Burkert Communicator |
