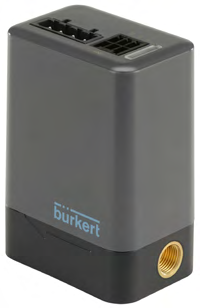

8763 Pressure Controller
The 8763 pressure controller is designed for precise pressure measurement and control in fluid systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 18-35VDC |
| Power Consumption | <6W (typical 24W, <12W for connected heating element) |
| Working Medium | Non-corrosive gases (e.g., nitrogen, air) |
| Operating Temperature | +15°C to +40°C |
| Connection Type | G 1/4 threaded version |
| Output Interface | UNF 1/4 thread or 28 thread |
| Protection Class | IP20 |
| Flow Characteristics | 0.02-10bar (±3.5mbar), 0.04-2.0bar (±7mbar), 0.2-5.0bar (±25mbar) |
| Stability | <0.35% FS for 0.35bar version, <0.75% FS for 5bar version |
| Filter | 36μm filter at inlet |
| Pressure Range | 0.2-3bar (pressure control version), 0.5-6bar (pressure control version), control pressure up to 5bar |
| Measurement Time | 50ms, 500ms |
| Fluid Channel Material | PPS |
| Fluid Channel Material | FFKM |
| Fluid Channel Material | FKM |
| Fluid Channel Material | PTFE |
| Dimensions | Refer to technical drawings |
| Weight | Refer to technical drawings |
