680nm Bandpass Filter
This 680nm bandpass filter is designed for precise optical filtering applications, ensuring high transmission at the target wavelength while effectively blocking unwanted wavelengths.
Save to Favorites
Overview
Specifications

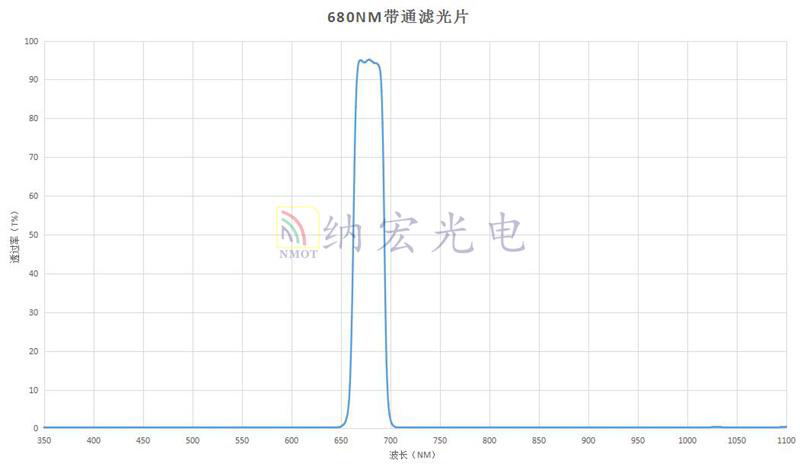

| Parameter | Value |
|---|---|
| Center Wavelength | 680nm |
| Half Bandwidth | 10nm |
| Peak Transmission | ≥90% |
| Blocking Range | 350-1100nm |
| Blocking Depth | OD4 |
Applications
Key Features
Datasheet
