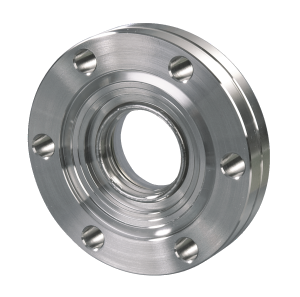

DN16-DN160 CF-F Sight Glass
INFICON provides a wide range of sight glasses suitable for all applications requiring observation ports. Available in materials such as kodial glass and sapphire glass, these sight glasses are compatible with ISO-KF, ISO-K, ISO-F, and CF connections.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Type DN16 CF-F | kodial glass |
| Type DN40 CF-F | kodial glass |
| Type DN40 CF-F (sapphire glass) | sapphire glass |
| Type DN63 CF-F | kodial glass |
| Type DN100 CF-F | kodial glass |
| Type DN160 CF-F | kodial glass |
| Vacuum Connection DN16 CF-F | stainless steel304/1.4301 |
| Vacuum Connection DN40 CF-F | stainless steel304/1.4301 |
| Vacuum Connection DN40 CF-F (sapphire glass) | stainless steel304/1.4301 |
| Vacuum Connection DN63 CF-F | stainless steel304/1.4301 |
| Vacuum Connection DN100 CF-F | stainless steel304/1.4301 |
| Vacuum Connection DN160 CF-F | stainless steel304/1.4301 |
| Sealing Material DN16 CF-F | iron/nickel |
| Sealing Material DN40 CF-F | iron/nickel |
| Sealing Material DN40 CF-F (sapphire glass) | iron/nickel |
| Sealing Material DN63 CF-F | iron/nickel |
| Sealing Material DN100 CF-F | iron/nickel |
| Sealing Material DN160 CF-F | iron/nickel |
| Baking Temperature | 400°C |
| Leak Rate | 5×10^-11mbar·L/s |
| Pressure (Absolute) Minimum | 1×10^-10mbar |
| Pressure (Absolute) Maximum at 400°C | 1bar |
| Pressure (Absolute) Maximum at 200°C | 1.5bar |
| Window Thickness DN16 CF-F | 1.5mm |
| Window Thickness DN40 CF-F | 3mm |
| Window Thickness DN40 CF-F (sapphire glass) | 3mm |
| Window Thickness DN63 CF-F | 3.5mm |
| Window Thickness DN100 CF-F | 6mm |
| Window Thickness DN160 CF-F | 8mm |
| Weight DN16 CF-F | 0.04kg |
| Weight DN40 CF-F | 0.24kg |
| Weight DN40 CF-F (sapphire glass) | 0.35kg |
| Weight DN63 CF-F | 0.85kg |
| Weight DN100 CF-F | 1.4kg |
| Weight DN160 CF-F | 2.8kg |
