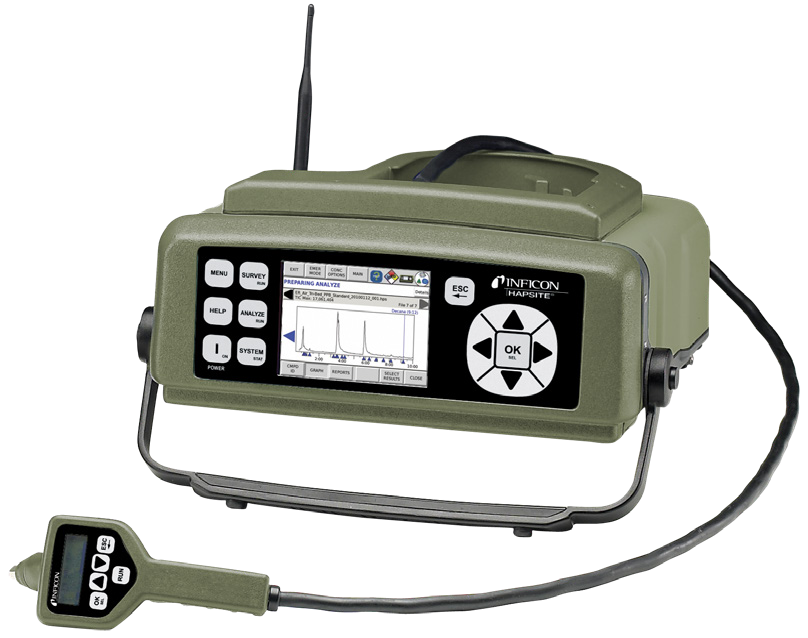

HAPSITE ER Chemical Identification System
HAPSITE ER is a portable Gas Chromatograph/Mass Spectrometer (GC/MS) designed for on-site chemical identification and analysis. It provides fast, accurate, and reliable results for identifying and quantifying volatile organic compounds (VOCs) and semi-volatile organic compounds (SVOCs) in various environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | 5–45°C |
| Dimensions (L×W×H) | 46×43×18cm (18×17×7in) |
| Weight | Approximately 19kg (42lb) with battery |
| Power Supply | Rechargeable NiMH battery pack or AC converter |
| Battery Life | 2–3hrs |
| Power Requirement | 24V(dc), 30watts at normal operating conditions |
| Hard Drive | 16GB internal storage |
| Flash Drive | USB |
| Display | 6.5in VGA color display with touch screen |
| Sample Introduction | Air probe (included) or optional accessory |
| Carrier Gas | Nitrogen |
| Data System | Intel Pentium processor |
| Communication | 802.11G wireless or direct Ethernet connection |
| Data Analysis | AMDIS Mass Spectral Libraries, NIOSH, NIST (on optional laptop) |
| Sample Type | VOCs and select SVOCs |
| Detection Limit | PPT for most analytes |
| Mass Range | 41–300AMU (1–300AMU using SIM) |
| Scan Rate | 1000AMU/sec @10 points per AMU |
| Ionization Mode | 70eV Electron Impact |
| Detector | Electron multiplier |
| Vacuum System | Non-evaporative getter (NEG) pump |
| Dynamic Range | 7 decades |
| GC Column | 15M, Rtx-1MS, 0.25mm i.d., 1.0um df (included) |
| Temperature Range | 45–200°C |
