HAPSITE CDT Chemical Identification System

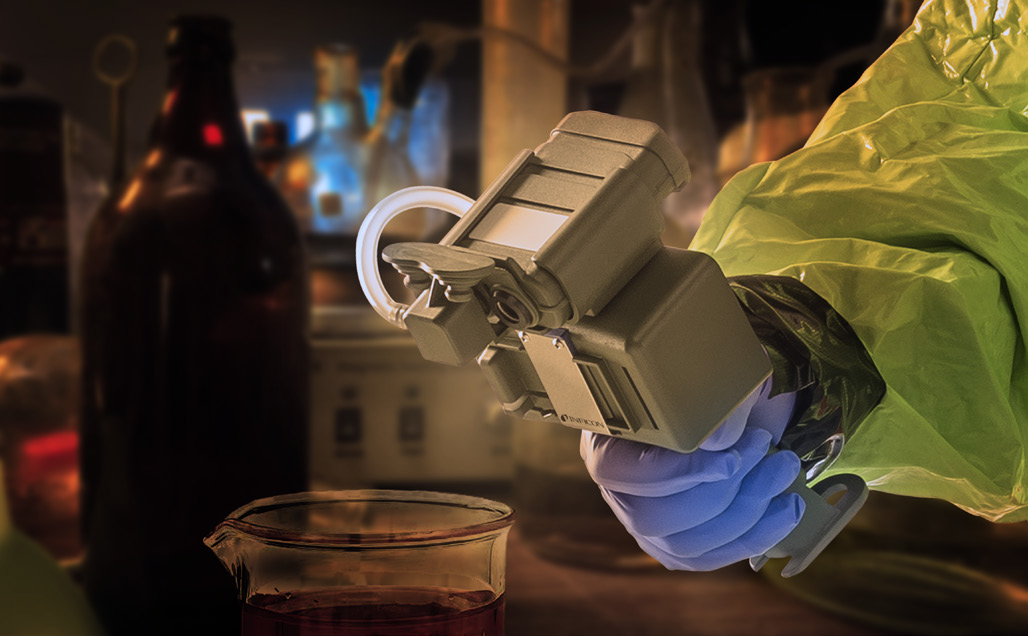

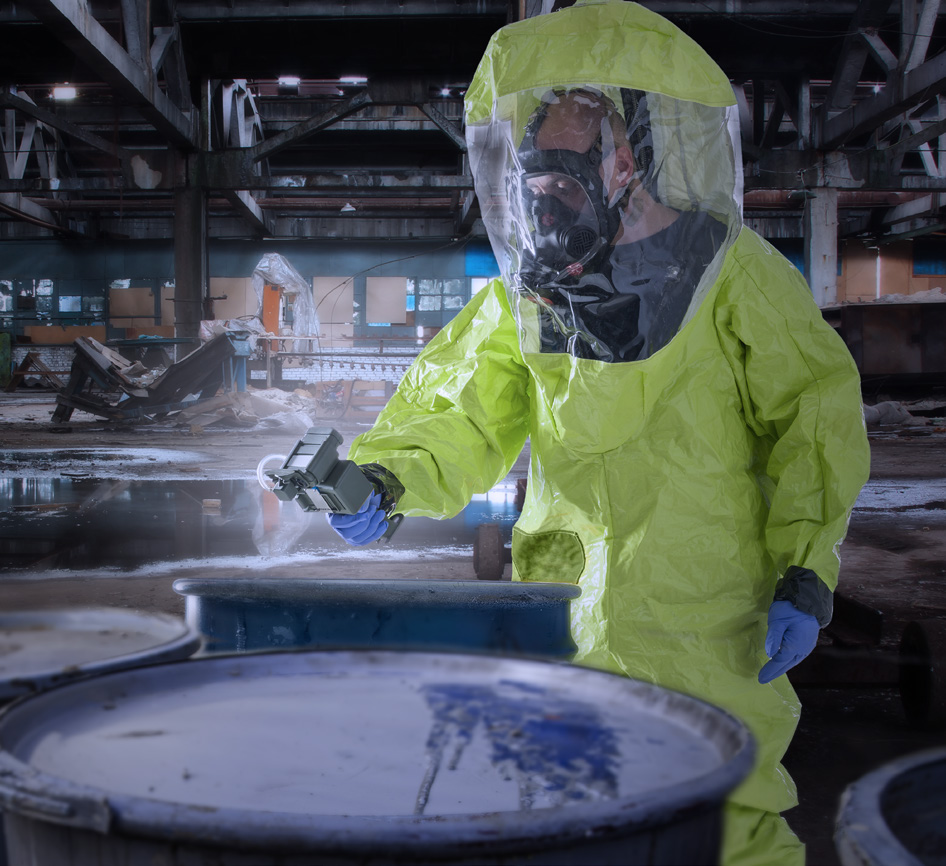

HAPSITE CDT is a portable chemical identification system designed for military, civilian, and hazardous response teams to identify and quantify chemical threats such as narcotics, chemical warfare agents, explosives, and toxic industrial chemicals. It provides lab-quality results on-site within minutes, enabling critical health risk assessments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions (L×W×H) | 51.3×50.4×20.0cm |
| Weight | 19.2kg with 1 battery |
| Operating Temperature | 0-45°C |
| Operating Humidity | 5-95% relative humidity |
| Power | 24VDC Ext Power, 28VDC Li-Ion Battery |
| Battery Life | 5 hours w/ analysis mode (2 batteries) |
| Sample Inlets | Air cartridge |
| Sample Inlets | syringe injector |
| Mass Range | 10-424AMU (1-424AMU in SIM Mode) |
| External Communication | 802.11G, USB, GPS, Ethernet |
| GC Column | Restek RXi-5ms 10m×0.25mm ID, 0.25μm |
| Maximum Column Temperature | 220°C |
| Carrier Gas | Nitrogen |
| Start Up Time | <15 minutes |
| Mass Analyzer Type | Quadrupole |
| Vacuum System | Non-evaporable getter (NEG) pump/ion pump and optional mechanical pumping accessory |
| Quantitative Methods | Yes |
| Libraries | AMDIS w/ configurable targeted library: NIST, NIOSH |
| Certifications | CE, IP65 |
| Warranty | 2 years included |
