Augent™ OPG550 Optical Plasma Vacuum Gauge
The INFICON Augent™ OPG550 Optical Plasma Vacuum Gauge is a compact and intelligent solution for vacuum monitoring. It combines two sensor technologies into one device for gas type monitoring and total pressure measurement, offering high precision and reliability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measurement System | Cold Cathode according inverted magnetron principle and Thermal conductivity according Pirani principle |
| Measurement Range N2 (mbar) | 1×10⁻⁷...5 |
| Measurement Range N2 (Torr) | (7.6×10⁻⁸...3.8) |
| Detection limit 25 liter chamber O2 leaks in pressure rise method (mTorr/min) | >=0.3 |
| O2 leaks during pump down from atmosphere with N2 backfill (mTorr/min) | >=1 |
| Accuracy total pressure reading N2 1×10⁻⁷...100mbar (% of reading) | 30 |
| Accuracy total pressure reading N2 100...1000mbar (% of reading) | 50 |
| Repeatability total pressure reading N2 1×10⁻⁷...100mbar (% of reading) | 5 |
| Pressure limited to inert gases <50°C (bar absolute) | <=10 |
| Temperature Operation (ambient) (°C) | +5...+50 |
| Temperature Storage (°C) | -20...+70 |
| Bakeout at flange with electronic unit (°C) | <=80 |
| Bakeout at flange w/o electronic unit (°C) | <=120 |
| Relative humidity for 30 days a year (%) | <=95 (non-condensing) |
| Supply voltage at gauge (Vdc) | +14.5...+30 |
| Supply voltage ripple (V p-p) | <=1 |
| Supply voltage power consumption (W) | <=5 |
| Supply voltage fuse to be connected (AT) | 1 |
| Digital Output Signal | RS232C |
| Electrical Connection | D-Sub, 9-pin, male |
| High voltage (in the measuring chamber) Ignition voltage (kV) | <=4.5 |
| High voltage (in the measuring chamber) Operating voltage (kV) | <=3.3 |
| Materials exposed to vacuum General | Al2O3, Stainless steel 1.4435 |
| Materials exposed to vacuum Anode | Molybdenum |
| Materials exposed to vacuum Ionization chamber | Titanium, stainless steel 1.4016 |
| Materials exposed to vacuum Ignition aid | Stainless steel 1.4310 |

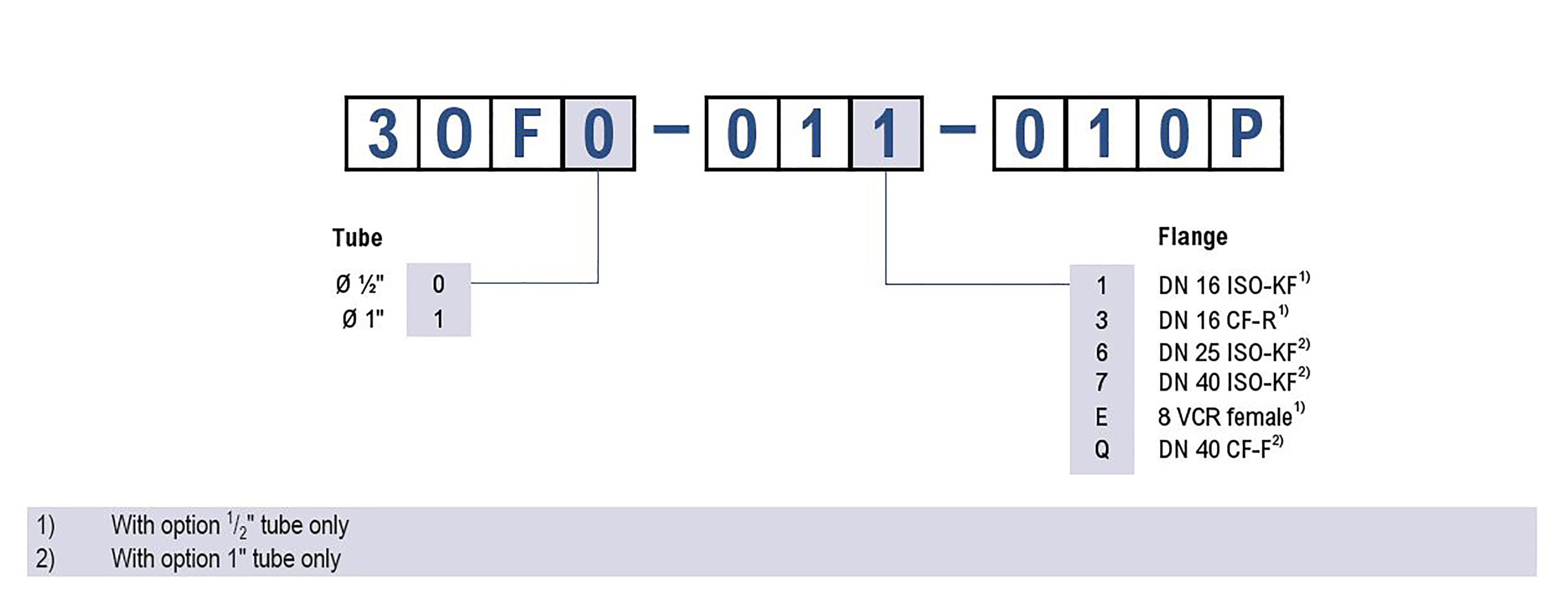

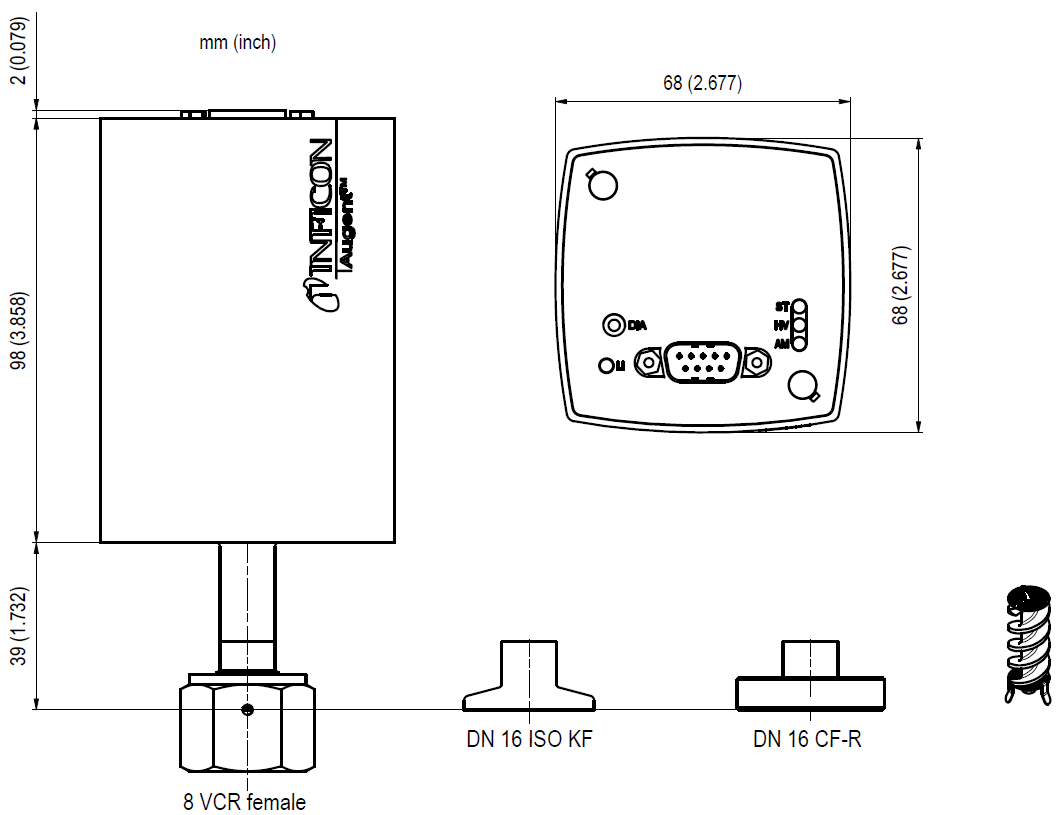

| Vacuum flange 1/2 in. tube (spiral baffle) | DN16 ISO-KF, DN16 CF-R, 8-VCR female |

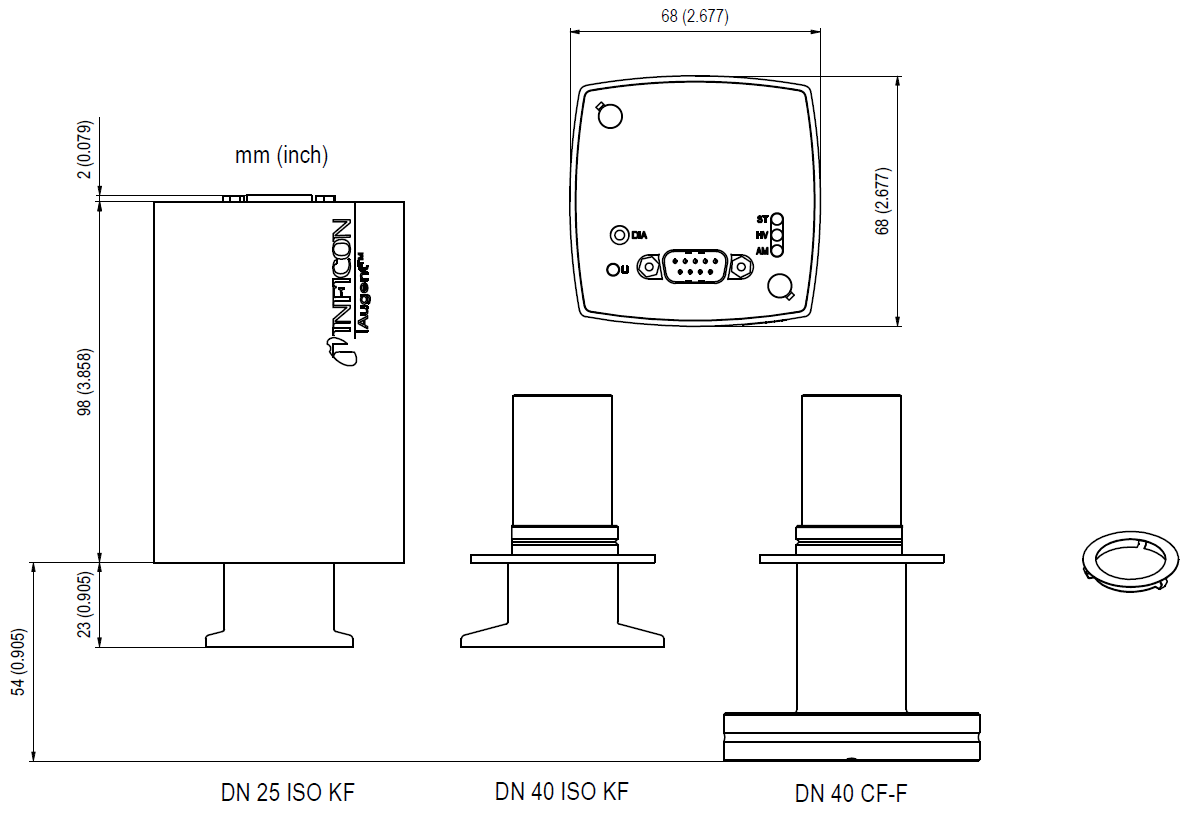

| Vacuum flange 1 in. tube (standard baffle) | DN25 ISO-KF, DN40 ISO-KF, DN40 CF-F |
| Internal volume (cm³) | <=46 (2.81) |
| Weight (g) | <=700 |
| Dimensions Footprint (mm) | 68×68 |
| Dimensions Height (mm) | <=154 |
| Protection type | IP40 |
| Standards | CE |
