Fusion Splicer
A high-performance fusion splicer designed for precise fiber optic splicing, featuring advanced technology for efficient and reliable operations.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Electrode Life | 3000次 |
| Battery Capacity | 5200mAh |
| Input Voltage | DC11.1V |
| Charging Input | AC100-240V,50/60Hz |
| Splicer Dimensions | 156×155×152mm |
| Weight (Bare Machine) | 1.74KG |
| Weight (With Accessories) | 4.7KG |
| Working Environment | Temperature(°C):-15~+50 Altitude:0-5000m Humidity:<95%RH (non-condensing) Wind:<15m/s |
| Storage Conditions | Temperature(°C):-40~+80 Humidity:0-95% Battery Temperature:-20°C~+30°C |
| Lighting Method | Automatic/Manual |
| Charging Time | <3.5小时 |
| USB Output | 5V/500mA |
| Charger Output | DC13.5V/4A |
| Toolbox Dimensions | 360×305×200mm |

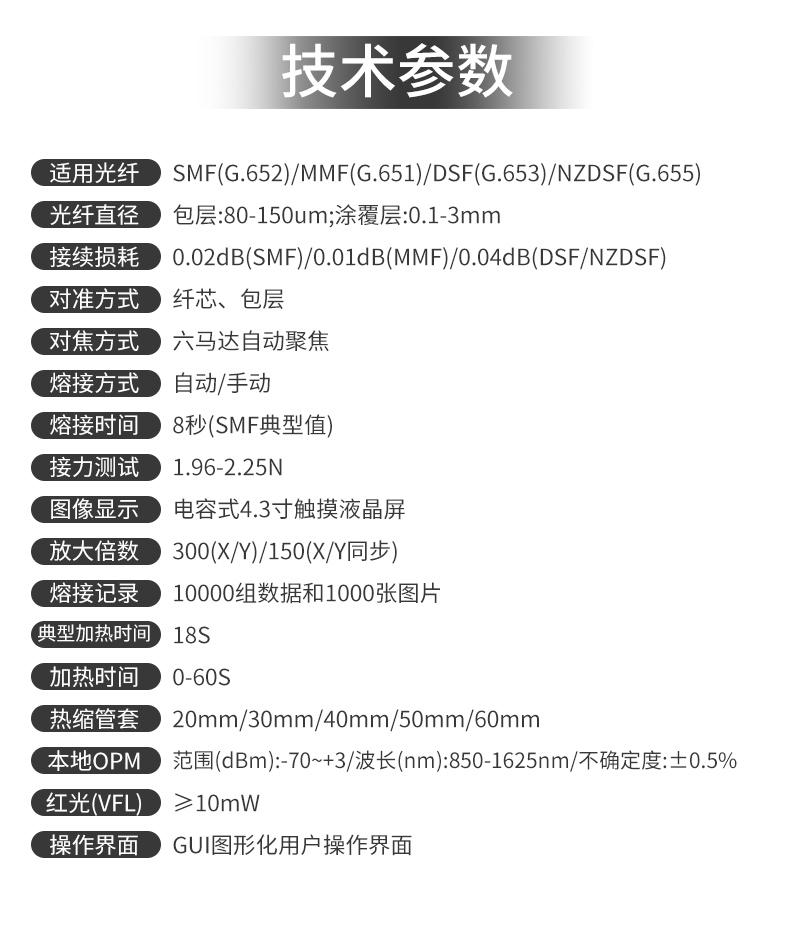

| Applicable Fiber | SMF(G.652)/MMF(G.651)/DSF(G.653)/NZDSF(G.655) |
| Fiber Diameter | Cladding:80-150um; Coating:0.1-3mm |
| Splicing Loss | 0.02dB(SMF)/0.01dB(MMF)/0.04dB(DSF/NZDSF) |
| Alignment Method | Fiber Core |
| Alignment Method | Cladding |
| Focusing Method | Six-motor automatic focusing |
| Splicing Method | Automatic/Manual |
| Splicing Time | 8 seconds (typical for SMF) |
| Tension Test | 1.96-2.25N |
| Image Display | 4.3-inch touch LCD screen |
| Magnification | 300(X/Y); 150(X/Y step) |
| Splicing Records | 10000 sets of data and 1000 images |
| Typical Heating Time | 18 seconds |
| Heating Time | 0-60 seconds |
| Heat Shrink Sleeve | 20mm/30mm/40mm/50mm/60mm |
| Local OPM | Range(dBm):-70~+3/Wavelength(nm):850-1625nm/Accuracy:±0.5% |
| Red Light (VFL) | >10mW |
| Operation Interface | GUI graphical user interface |
