701936 Deskew Correction Signal Source

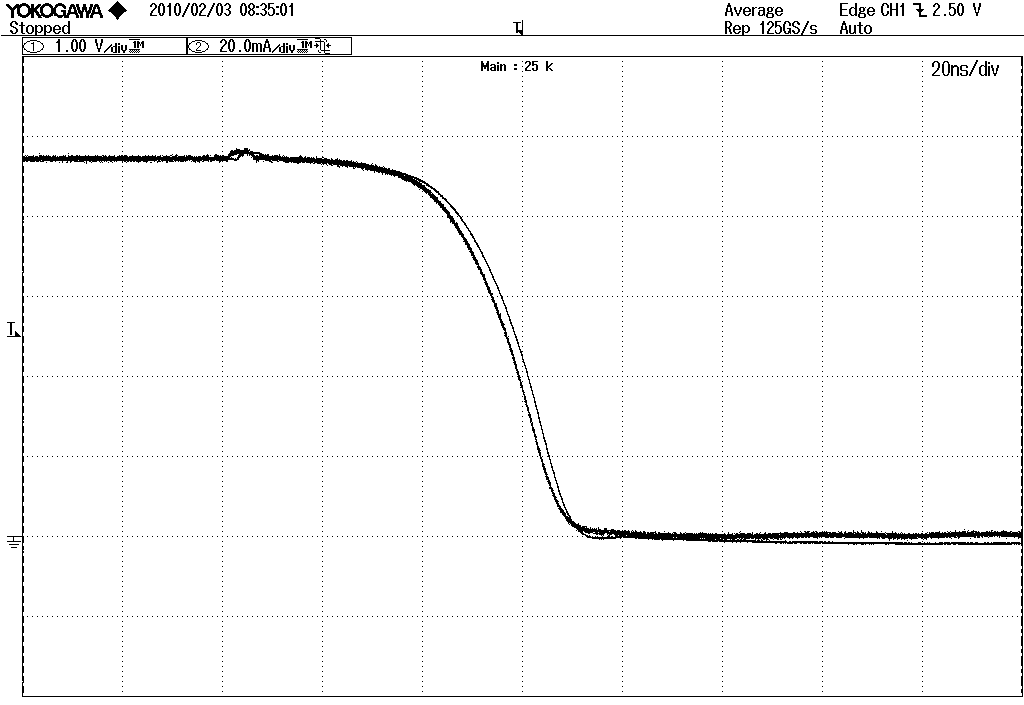

The 701936 Deskew Correction Signal Source is designed to correct the difference in signal transfer time (skew, delay) between voltage and current probes. It is compatible with Yokogawa DL series digital oscilloscopes and provides a rectangular wave output for precise calibration.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Frequency | Approx.15kHz |
| Output voltage (current rectangular wave) | Approx.±5V |
| Output Current | Approx.100mA (I1), Approx.1A (I2) |
| Rise Time | Small current terminal (I1): ≤2.3ns±0.05ns, Large current terminal (I2): ≤14.5ns±1ns |
| Operating Temperature Range | 0 to 50°C |
| Operating humidity range | 20 to 80% RH (no condensation) |
| Storage Temperature Range | -20 to 60°C |
| Storage Humidity Range | 20 to 80% RH (no condensation) |
| Power Supply | Supplied from the USB connector provided by the DL series oscilloscope |
| Dimensions | 100mm(W)×48mm(H)×60mm(D) |
| Weight | Approx.100g |
| Standard Accessories | USB cable (1 piece), Cable (banana plugs on both ends, 1 piece), User’s Manual (1 piece) |
| EMC Standards | EN61326-1 Class A, EN55011 Class A Group 1 |
| Environmental standards | EU RoHS Directive compliant |
