Attenuation Fiber

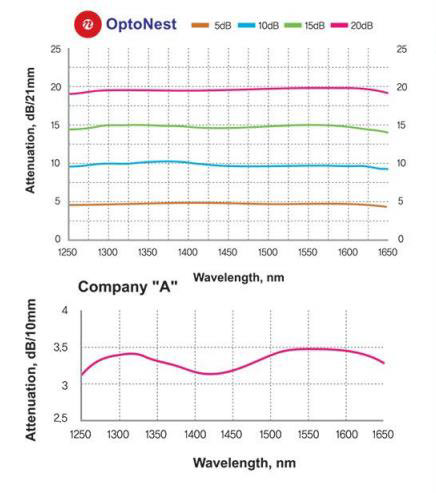

OptoNest's specialty optical fibers are designed for DWDM attenuator applications with flat attenuation properties, offering high reliability and stable input power endurance. These fibers are suitable for fixed or in-line type attenuators and terminators, covering optical communication wavelengths from 1250 to 1650nm with 1-40dB/21mm.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Core Diameter | 8-10μm |
| Numerical aperture | 0.12±0.01 |
| Inner Cladding Diameter | 40-50μm |
| Outer Cladding Diameter | 125±0.5μm |
| Core to Cladding Concentricity Error | ≤0.8μm |
| Attenuation | 1~20dB(10mm)/1~30dB(15.4mm)/1~40dB(21,22.4mm) |
| Attenuation Tolerance | ±7.5% |
| Storage Temperature Range | -40°C~85°C |
| Operating Temperature Range | -40°C~75°C |
| Cut-off Wavelength | 1200±20nm |
| Operating Wavelength | 1250-1650nm |
| Optical Power Endurance | ≤0.2dB@200mW |
