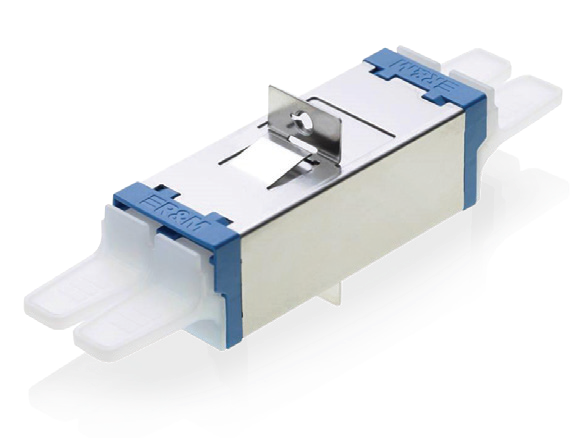

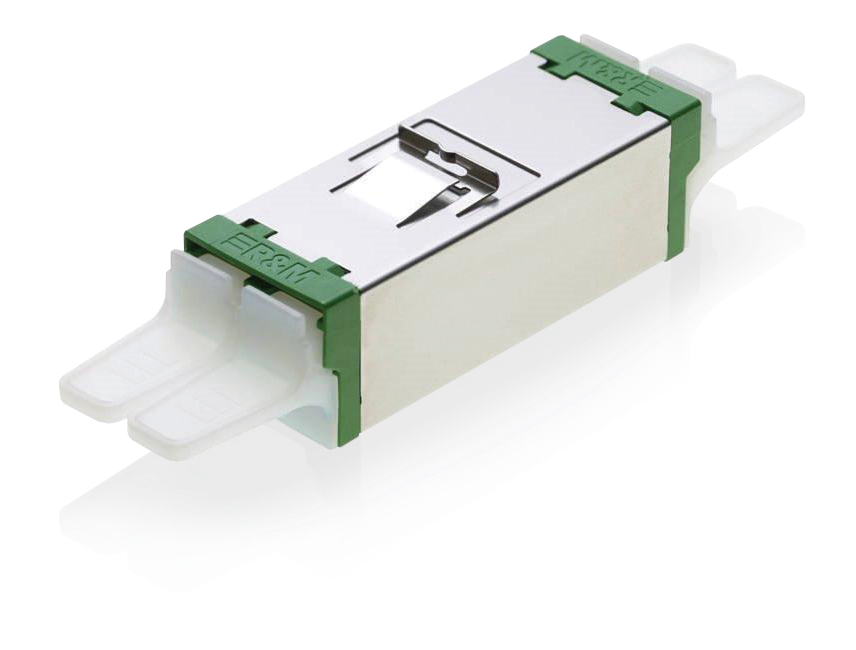

E2000 Duplex Adapter
The E2000 Duplex Adapter features injection-molded PBT housing rated to the UL94V-01 Flammability Index. Spring-loaded shutters protect against dust and scratching. A high-quality split ceramic sleeve ensures high performance over 1000 mating cycles. The adapter can be ordered with color-coded housing and frames. Mechanical coding is available upon request.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Nominal Fiber O/D PC | 125um±2 |
| Nominal Fiber O/D APC | 125um±2 |
| Insertion Loss PC | ≤0.2dB |
| Insertion Loss APC | ≤0.2dB |
| Return Loss PC | ≥50dB |
| Return Loss APC | ≥65dB |
| Mating Durability (500 Cycles) PC | ≤0.2dB |
| Mating Durability (500 Cycles) APC | ≤0.2dB |
| Temperature Stability PC | ≤0.3dB |
| Temperature Stability APC | ≤0.3dB |
| Mating Durability Temperature Range PC | -40°C~85°C |
| Mating Durability Temperature Range APC | -40°C~85°C |
| Temperature Stability Range PC | -40°C~85°C |
| Temperature Stability Range APC | -40°C~85°C |
