Amber600-8GE4GX-8PA
The Amber600-8GE4GX-8PA is a high-performance, managed Gigabit PoE switch with 8*10/100/1000Base-T auto-sensing Ethernet ports and 4*1000M SFP ports. All 8 Ethernet ports support PoE/PoE+, each port offering a maximum of 30W power. The switch supports Ethernet Ring Protection Switching (ERPS) as well as STP/RSTP/MSTP. It also supports Web-based network management, VLAN, QoS, SNMP, IGMP snooping, etc. Its rugged design with an IP40 enclosure and industrial level 3 protection makes it suitable for applications such as Intelligent Transportation Systems, IP surveillance, and industrial networks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| IEEE Standards | IEEE 802.3: 10Base-T, IEEE 802.3u: 100Base-Tx and 100Base-Fx, IEEE 802.3z: 1000Base-X, IEEE 802.3ab: 1000Base-Tx, IEEE 802.3af/at, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1W, IEEE 802.1s, IEEE 802.1X, IEEE 802.1AB |
| Ethernet Ports | 8*10/100/1000Base-T |
| SFP Ports | 4*1000Base-FX SFP |
| Console Interface | Micro USB 2.0, 115200bps, 8,N,1 |
| Alarm Output | Relay output for fault event alarm |
| Switching Capacity | 24Gbps |
| Throughput | 17.8Mpps |
| Switch Delay | 7μs |
| Priority Queues | 8 |
| Vlan | 4096 |
| VLAN ID Range | 1~4096 |
| MAC Table | 8K |
| Memory Buffer | 4M |
| Flow Control | 802.1Q VLAN, GVRP, GMRP, MVR, IGMPv1/v2 |
| Redundancy | ERPS |
| Redundancy | STP |
| Redundancy | RSTP |
| Redundancy | MSTP |
| Security Features | Enable/disable ports; Port-based network access control (802.1x); VLAN (802.1Q); MAC-based port security; RADIUS centralized password management; SNMP V1/V2c/V3 encrypted authentication and access security; SSH |
| Time Management | Syslog; NTP Server/Client |
| QoS | 802.1P |
| LED Indicator | Power1, Power2, RUN, ALARM |
| Management | IPv4/IPv6, SNMP V1/V2/V3, LLDP, RMON, DHCP, Server/Client, TFTP, HTTP, HTTPS, Telnet |
| Power Input | Dual 45~57VDC input, 5-pin terminal |
| Power Consumption | <10W; ≤30W on each PoE port |
| Overload Current Protection | Support |
| Reverse Polarity Protection | Support |
| Storage Temperature | -40~+85°C |
| Operating Temperature | -40~+75°C |
| Operating Humidity | 5%~95% non-condensing |
| Enclosure | Metal |

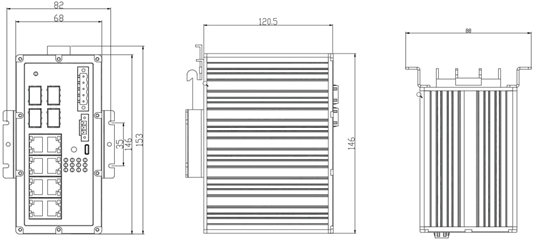

| Dimensions | 68x120.5x146mm |
