Amber600-16GE4GX
The Amber600-16GE4GX is a high-performance, managed Gigabit switch featuring 16*10/100/1000Base-T auto-sensing Ethernet ports and 4*1000M SFP ports. It supports Ethernet Ring Protection Switching (ERPS) and protocols such as STP/RSTP/MSTP. The switch also offers web-based network management, VLAN, QoS, SNMP, and IGMP snooping. Its rugged design with IP40 enclosure and industrial level 3 protection makes it ideal for applications in intelligent transportation systems, IP surveillance, and industrial networks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| IEEE Standards | IEEE 802.3: 10Base-T, IEEE 802.3u: 100Base-Tx and 100Base-Fx, IEEE 802.3z: 1000Base-X, IEEE 802.3ab: 1000Base-T, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1P, IEEE 802.1D, IEEE 802.1W, IEEE 802.1S, IEEE 802.1X, IEEE 802.1AB |
| Ethernet Ports | 16*10/100/1000Base-T |
| SFP Ports | 4*1000Base-FX SFP |
| Console Port | Micro USB 2.0,115200bps,8,N,1 |
| Alarm Output | Relay output for fault event alarm |
| Capacity | 40Gbps |
| Throughput | 29.76Mpps |
| Switch Delay | 7μs |
| Priority Queues | 8 |
| Vlan | 4096 |
| VLAN ID Range | 1~4096 |
| MAC Table | 8K |
| Memory Buffer | 4M |
| Flow Control | 802.1Q VLAN, GVRP, GMRP, MVR, IGMPv1/v2 |
| Redundancy Protocols | ERPS |
| Redundancy Protocols | STP |
| Redundancy Protocols | RSTP |
| Redundancy Protocols | MSTP |
| Security Features | MAC-based port security, RADIUS centralized password management, SNMP v1/v2c/v3 encrypted authentication and access security, SSH |
| Time Management | Syslog, NTP Server/Client |
| QoS | 802.1P |
| Device Management | IPv4/IPv6, SNMP v1/v2/v3, LLDP, RMON, DHCP, Server/Client, TFTP, HTTP, HTTPS, Telnet |
| Power Input | Dual 12~57VDC input, 5-pin terminal |
| Power Consumption | <18W |
| Overload Current Protection | Support |
| Reverse Polarity Protection | Support |
| Storage Temperature | -40~+85°C |
| Operating Temperature | -40~+85°C |
| Operating Humidity | 5%~95% non-condensing |
| Enclosure Material | Metal |

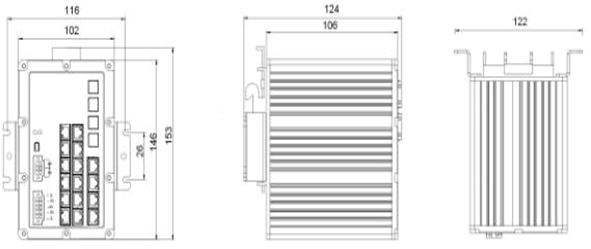

| Dimensions | 116x124x122mm |
Applications
Key Features
Datasheet
