MZ7.0X

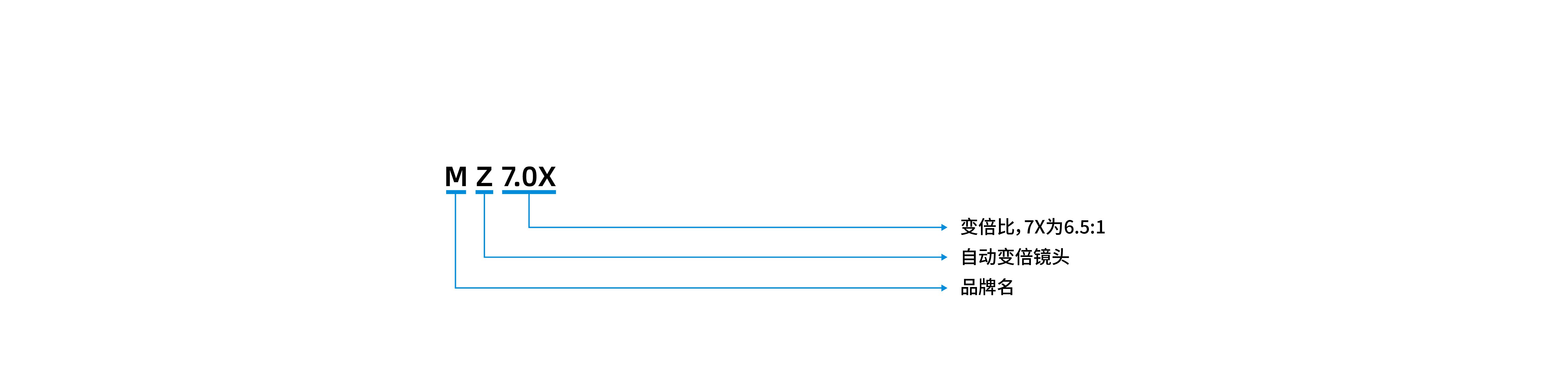

The MZ7.0X is an advanced automatic zoom lens designed for precision optical applications. It features a 7X zoom ratio (6.5:1) and supports high-resolution imaging, making it ideal for industrial and scientific use.
Save to Favorites
Overview
Specifications

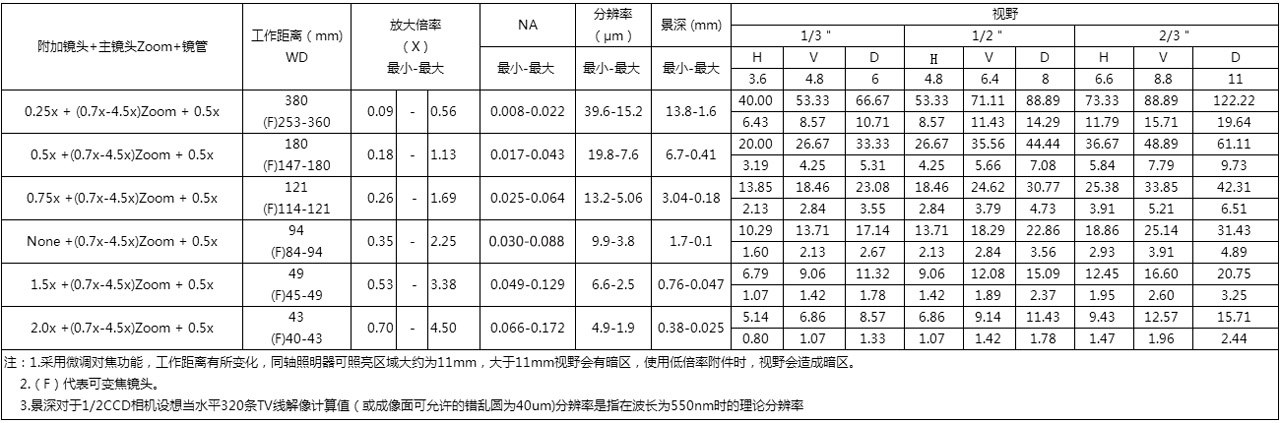

| Parameter | Value |
|---|---|
| Working Distance (mm) 0.25x + (0.7x-4.5x)Zoom + 0.5x | 380(F)253-360 |
| Working Distance (mm) 0.5x + (0.7x-4.5x)Zoom + 0.5x | 180(F)147-180 |
| Working Distance (mm) 0.75x + (0.7x-4.5x)Zoom + 0.5x | 121(F)114-121 |
| Working Distance (mm) None + (0.7x-4.5x)Zoom + 0.5x | 94(F)84-94 |
| Working Distance (mm) 1.5x + (0.7x-4.5x)Zoom + 0.5x | 49(F45-49) |
| Working Distance (mm) 2.0x + (0.7x-4.5x)Zoom + 0.5x | 43(F40-43) |
| Magnification (X) 0.25x + (0.7x-4.5x)Zoom + 0.5x | 0.09-0.56 |
| Magnification (X) 0.5x + (0.7x-4.5x)Zoom + 0.5x | 0.18-1.13 |
| Magnification (X) 0.75x + (0.7x-4.5x)Zoom + 0.5x | 0.26-1.69 |
| Magnification (X) None + (0.7x-4.5x)Zoom + 0.5x | 0.35-2.25 |
| Magnification (X) 1.5x + (0.7x-4.5x)Zoom + 0.5x | 0.53-3.38 |
| Magnification (X) 2.0x + (0.7x-4.5x)Zoom + 0.5x | 0.70-4.50 |
| Numerical Aperture (0.25x + (0.7x-4.5x)Zoom + 0.5x) | 0.008-0.022 |
| Numerical Aperture (0.5x + (0.7x-4.5x)Zoom + 0.5x) | 0.017-0.043 |
| Numerical Aperture (0.75x + (0.7x-4.5x)Zoom + 0.5x) | 0.026-0.069 |
| Numerical Aperture (None + (0.7x-4.5x)Zoom + 0.5x) | 0.030-0.090 |
| Numerical Aperture (1.5x + (0.7x-4.5x)Zoom + 0.5x) | 0.049-0.126 |
| Numerical Aperture (2.0x + (0.7x-4.5x)Zoom + 0.5x) | 0.066-0.172 |
| Resolution (μm) 0.25x + (0.7x-4.5x)Zoom + 0.5x | 39.6-15.2 |
| Resolution (μm) 0.5x + (0.7x-4.5x)Zoom + 0.5x | 19.8-7.6 |
| Resolution (μm) 0.75x + (0.7x-4.5x)Zoom + 0.5x | 13.2-5.06 |
| Resolution (μm) None + (0.7x-4.5x)Zoom + 0.5x | 9.9-3.8 |
| Resolution (μm) 1.5x + (0.7x-4.5x)Zoom + 0.5x | 6.6-2.5 |
| Resolution (μm) 2.0x + (0.7x-4.5x)Zoom + 0.5x | 4.9-1.9 |
| Depth of Field (mm) 0.25x + (0.7x-4.5x)Zoom + 0.5x | 13.8-1.6 |
| Depth of Field (mm) 0.5x + (0.7x-4.5x)Zoom + 0.5x | 6.7-0.41 |
| Depth of Field (mm) 0.75x + (0.7x-4.5x)Zoom + 0.5x | 4.0-0.24 |
| Depth of Field (mm) None + (0.7x-4.5x)Zoom + 0.5x | 2.8-0.15 |
| Depth of Field (mm) 1.5x + (0.7x-4.5x)Zoom + 0.5x | 1.7-0.10 |
| Depth of Field (mm) 2.0x + (0.7x-4.5x)Zoom + 0.5x | 1.1-0.07 |
| Field of View (mm) 1/3" 0.25x + (0.7x-4.5x)Zoom + 0.5x | H:53.33 V:71.11 D:88.89 |
| Field of View (mm) 1/3" 0.5x + (0.7x-4.5x)Zoom + 0.5x | H:26.67 V:35.56 D:44.44 |
| Field of View (mm) 1/3" 0.75x + (0.7x-4.5x)Zoom + 0.5x | H:17.78 V:23.70 D:29.63 |
| Field of View (mm) 1/3" None + (0.7x-4.5x)Zoom + 0.5x | H:13.71 V:18.28 D:22.86 |
| Field of View (mm) 1/3" 1.5x + (0.7x-4.5x)Zoom + 0.5x | H:9.14 V:12.19 D:15.24 |
| Field of View (mm) 1/3" 2.0x + (0.7x-4.5x)Zoom + 0.5x | H:6.86 V:9.14 D:11.43 |
| Field of View (mm) 1/2" 0.25x + (0.7x-4.5x)Zoom + 0.5x | H:66.67 V:88.89 D:122.22 |
| Field of View (mm) 1/2" 0.5x + (0.7x-4.5x)Zoom + 0.5x | H:33.33 V:44.44 D:61.11 |
| Field of View (mm) 1/2" 0.75x + (0.7x-4.5x)Zoom + 0.5x | H:22.22 V:29.63 D:40.74 |
| Field of View (mm) 1/2" None + (0.7x-4.5x)Zoom + 0.5x | H:17.14 V:22.86 D:31.43 |
| Field of View (mm) 1/2" 1.5x + (0.7x-4.5x)Zoom + 0.5x | H:11.43 V:15.24 D:20.57 |
| Field of View (mm) 1/2" 2.0x + (0.7x-4.5x)Zoom + 0.5x | H:8.57 V:11.43 D:15.71 |
| Field of View (mm) 2/3" 0.25x + (0.7x-4.5x)Zoom + 0.5x | H:88.89 V:122.22 D:122.22 |
| Field of View (mm) 2/3" 0.5x + (0.7x-4.5x)Zoom + 0.5x | H:44.44 V:61.11 D:61.11 |
| Field of View (mm) 2/3" 0.75x + (0.7x-4.5x)Zoom + 0.5x | H:29.63 V:40.74 D:40.74 |
| Field of View (mm) 2/3" None + (0.7x-4.5x)Zoom + 0.5x | H:22.86 V:31.43 D:31.43 |
| Field of View (mm) 2/3" 1.5x + (0.7x-4.5x)Zoom + 0.5x | H:15.24 V:20.57 D:20.57 |
| Field of View (mm) 2/3" 2.0x + (0.7x-4.5x)Zoom + 0.5x | H:11.43 V:15.71 D:15.71 |
