MT-16-AF5D-S
The MT-16-AF5D-S is a precision optical component designed for industrial applications, featuring a compact design and high-performance specifications.
Save to Favorites
Overview

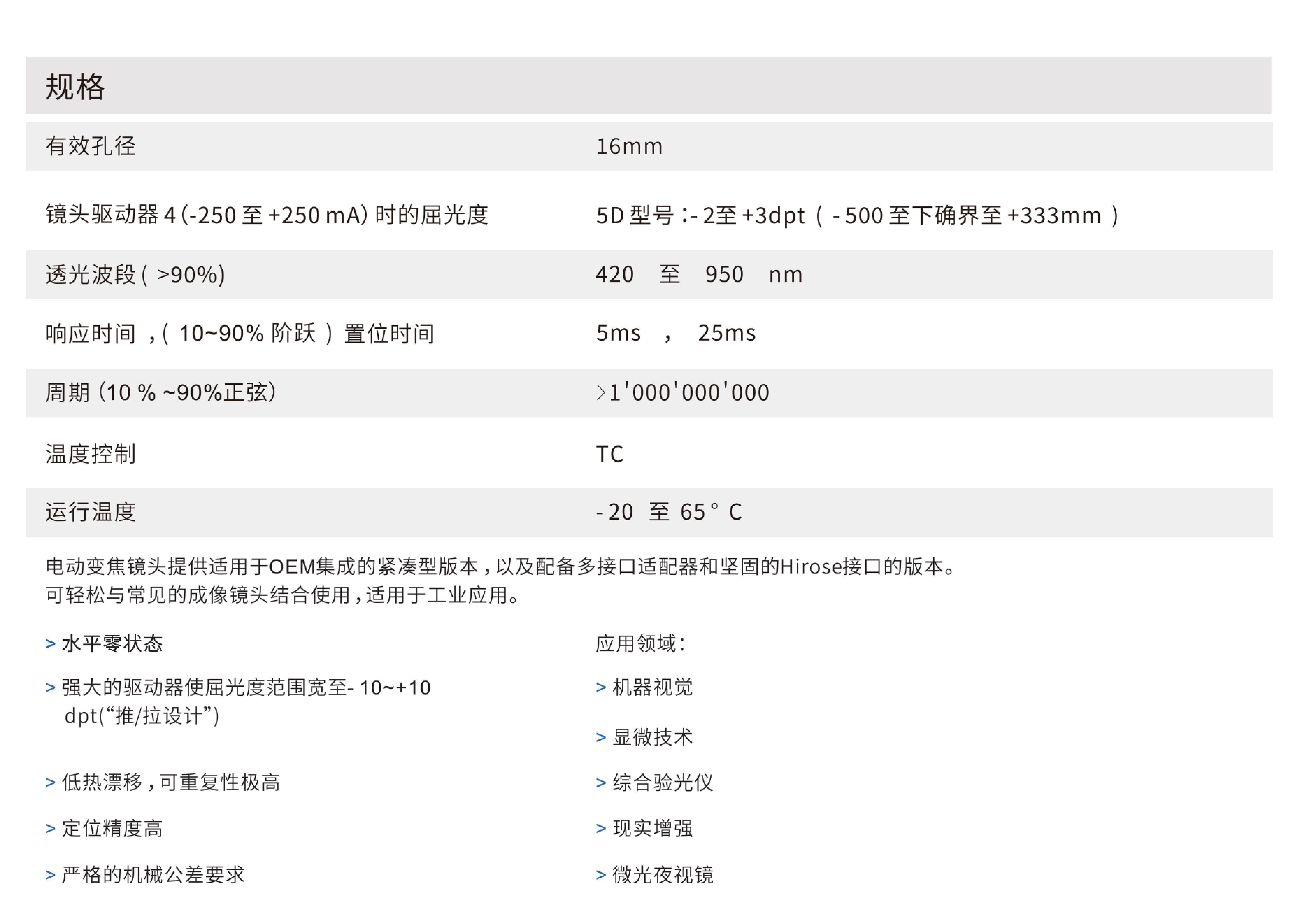

Specifications
| Parameter | Value |
|---|---|
| Effective Aperture | 16mm |
| Lens Driver Diopter at 4(-250 to +250mA) | 5D model: -2 to +3dpt (-500 to +333mm) |
| Transmission Wavelength (>90%) | 420-950nm |
| Response Time (10%-90% Step) Positioning Time | 5ms, 25ms |
| Cycle (10%-90% Sine) | ≥1'000'000'000 |
| Temperature Control | TC |
| Operating Temperature | -20°C to 65°C |
Applications
Key Features
Datasheet
