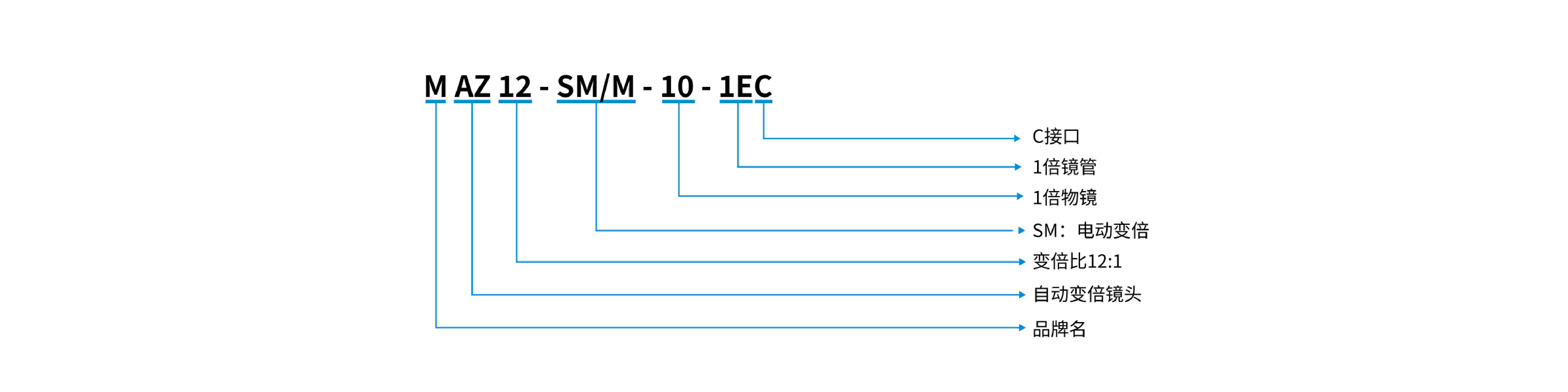

MAZ12-M-10-1EC
The MAZ12-M-10-1EC is an advanced optical zoom lens system designed for precision imaging applications. It features a motorized zoom mechanism with a 12:1 zoom ratio, ensuring high-quality magnification and adaptability for various industrial and scientific uses.
Save to Favorites
Overview

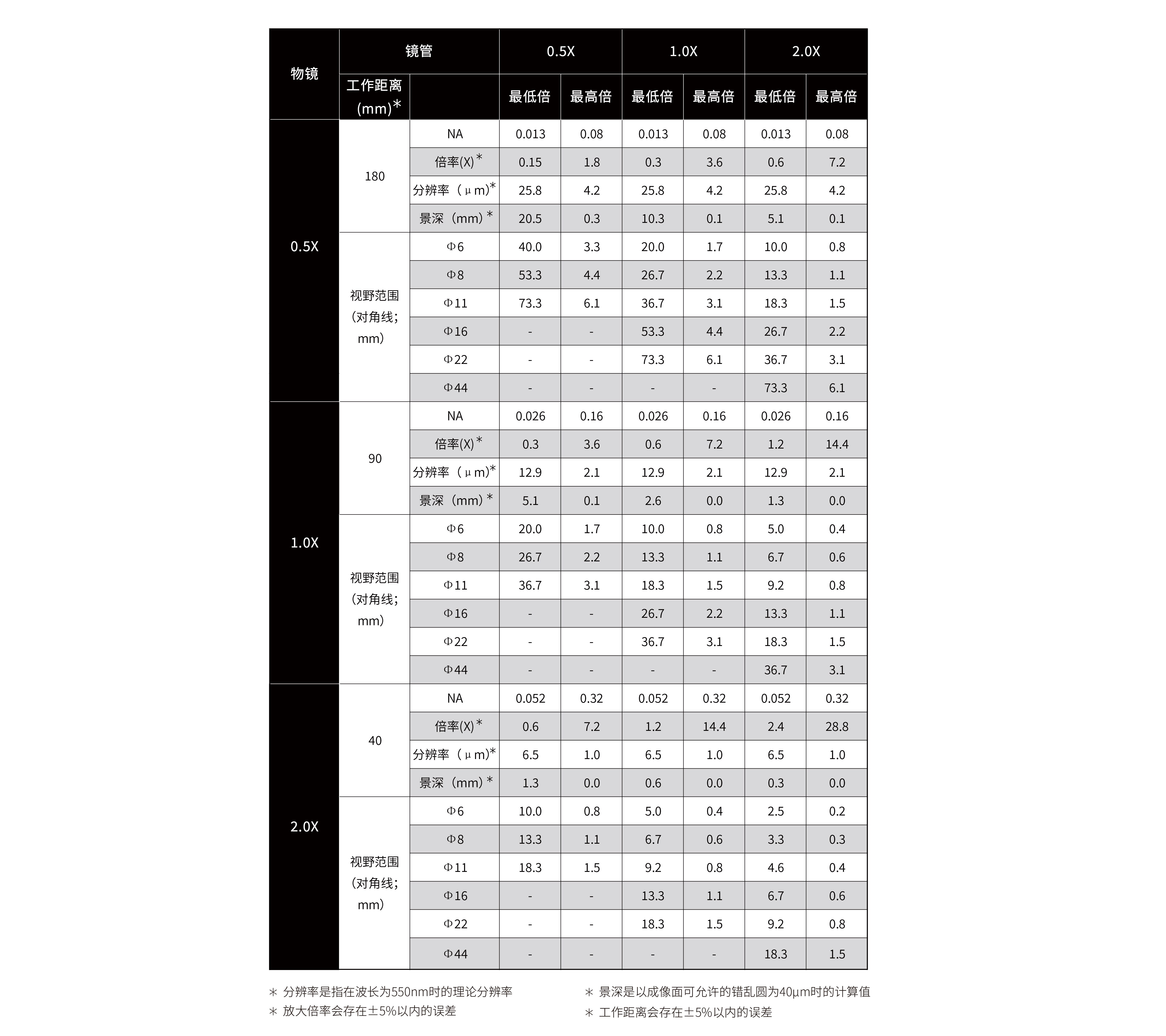

Specifications
| Parameter | Value |
|---|---|
| Working Distance (mm) 0.5X | 180, 90 |
| Working Distance (mm) 1.0X | 180, 90 |
| Working Distance (mm) 2.0X | 40 |
| Numerical Aperture (NA) 0.5X | 0.013-0.08 |
| Numerical Aperture (NA) 1.0X | 0.026-0.16 |
| Numerical Aperture (NA) 2.0X | 0.052-0.32 |
| Magnification (X) 0.5X | 0.15-7.2 |
| Magnification (X) 1.0X | 0.3-12 |
| Magnification (X) 2.0X | 0.6-24 |
| Resolution (μm) 0.5X | 25.8-4.2 |
| Resolution (μm) 1.0X | 12.9-2.1 |
| Resolution (μm) 2.0X | 6.4-1.1 |
| Depth of Field (mm) 0.5X | 20.5-0.8 |
| Depth of Field (mm) 1.0X | 5.1-0.2 |
| Depth of Field (mm) 2.0X | 1.3-0.1 |
| Field of View (Resolution; mm) 0.5X | Φ11-Φ44 |
| Field of View (Resolution; mm) 1.0X | Φ11-Φ44 |
| Field of View (Resolution; mm) 2.0X | Φ11-Φ44 |
