bizhub 7223i/7221i

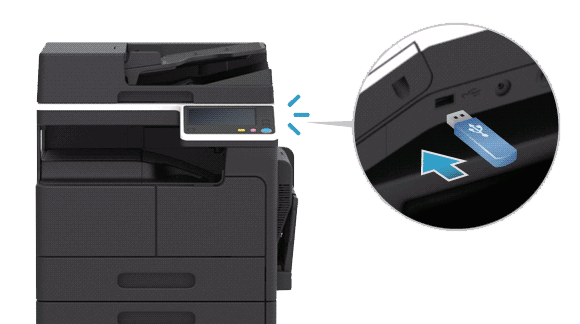

The bizhub 7223i/7221i is a high-performance black-and-white multifunction printer designed for efficient office use. It offers advanced features such as high-speed printing, scanning, and copying, along with a user-friendly 7-inch touch panel for seamless operation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Type | 黑白multipleFunction复合机 |
| Print Speed | 7223i: 23页/分钟, 7221i: 21页/分钟 |
| Print Resolution | 600dpi |
| Memory Capacity | 4GB |
| Hard Disk Capacity | 8GB |
| Maximum Original Size | A3 (11"×17") |
| Scan Resolution | 600dpi |
| Scan Speed | 55ppm (300dpi) |
| Supported Paper Size | A3-A5 |
| Paper Capacity | 350张 |
| Paper Weight | 64-157g/m² |
| Warm-up Time | 21秒以内 |
| Interface | USB2.0, USB3.0, Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Operating Systems | Windows Server 2008/2012/2016, Windows 7/8/10, Red Hat Enterprise Linux 7.x, Citrix |
| Dimensions | 627mm×615mm×458mm |
| Weight | 32kg |
| Power Requirements | AC220-240V, 6A, 50-60Hz |
| Fax Speed | 2.4kbps-33.6kbps |
| Fax Resolution | 100dpi/200dpi/300dpi/400dpi/600dpi |
| Fax Protocol | MH |
| Fax Protocol | MR |
| Fax Protocol | MMR |
| Fax Protocol | JBIG |
