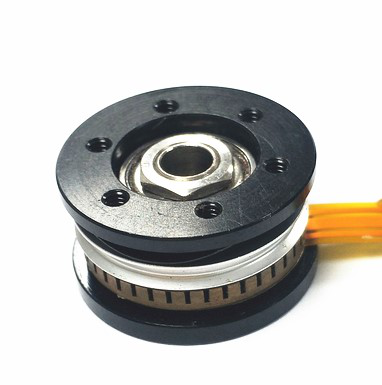

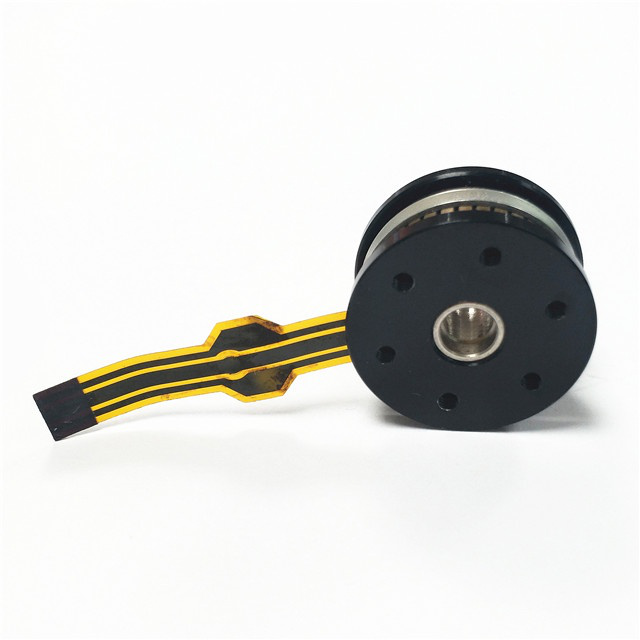

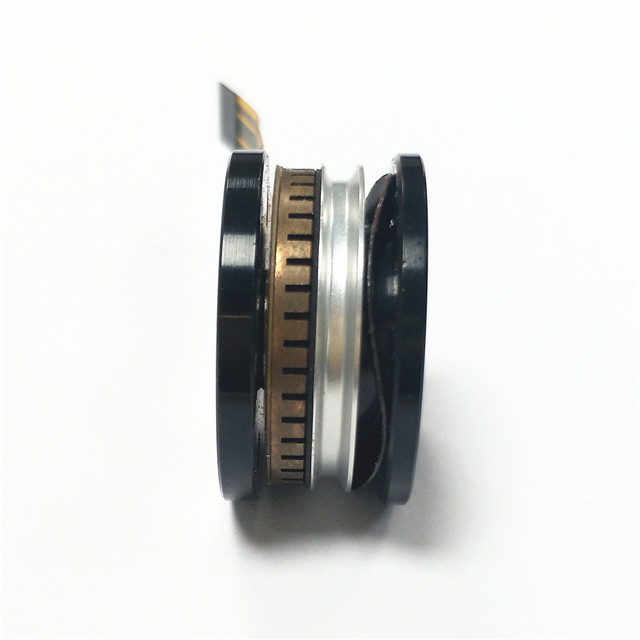

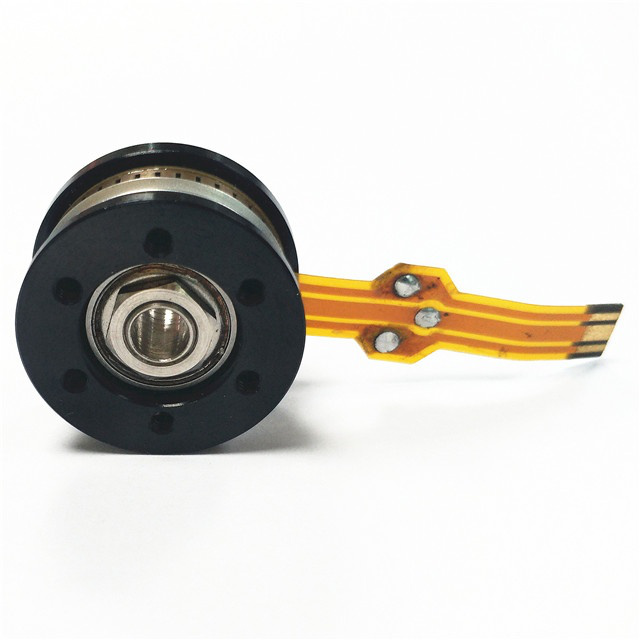

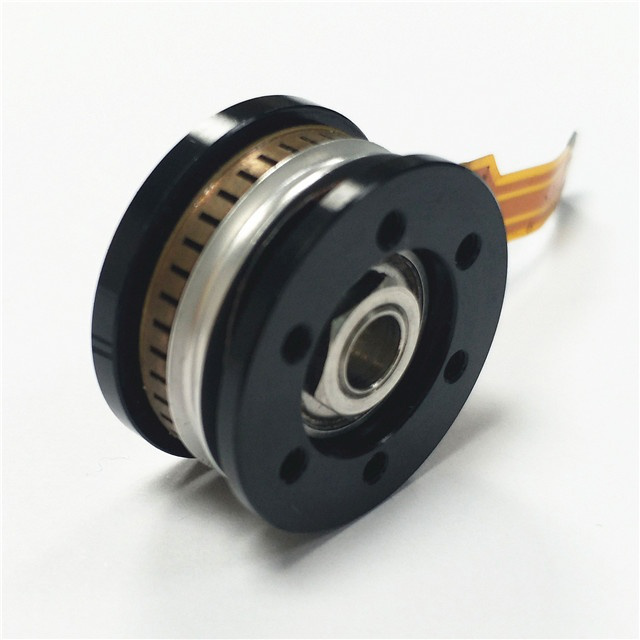

SJ-PXK-018-01

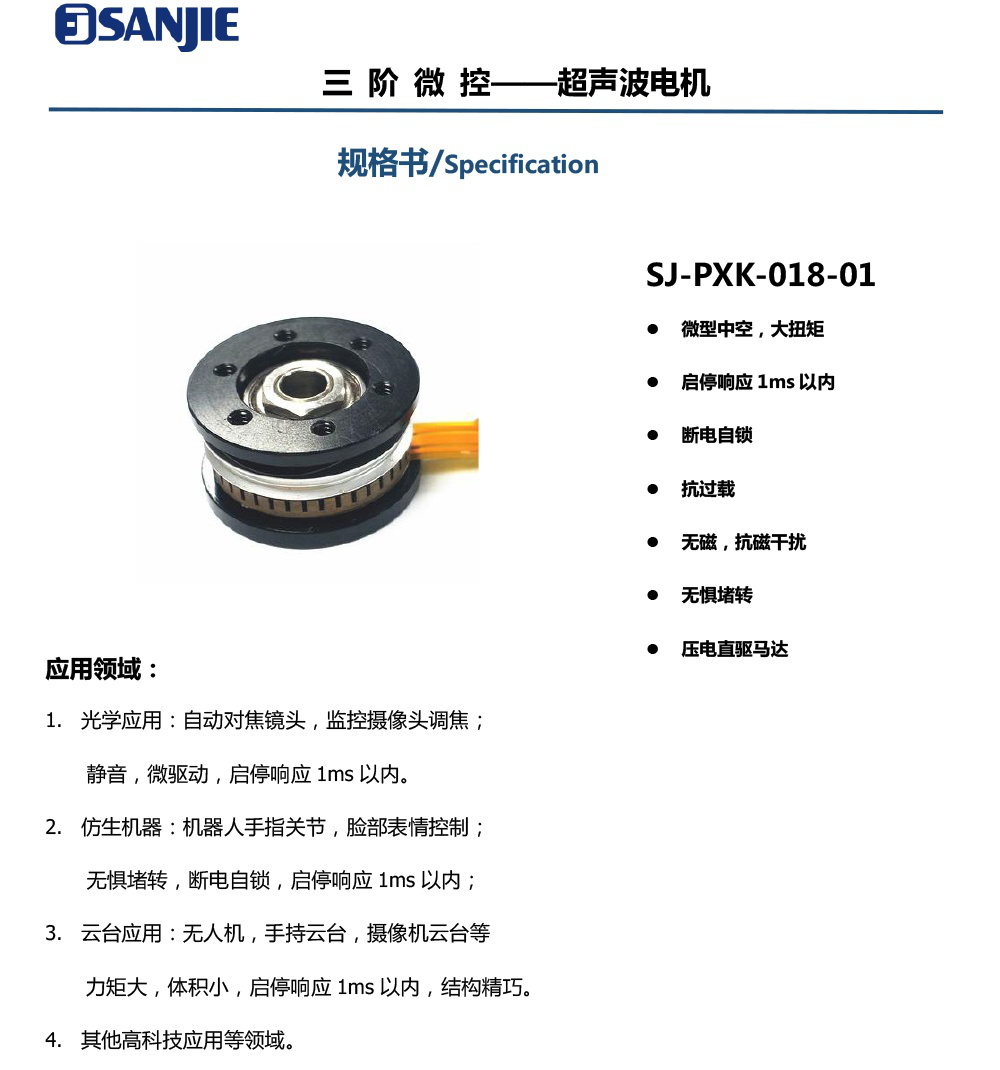

SJ-PXK-018-01 is a compact ultrasonic motor designed for precise control in optical, robotic, and drone applications. It features fast response time, anti-overload capabilities, and a magnetic-free design.
Save to Favorites
Overview

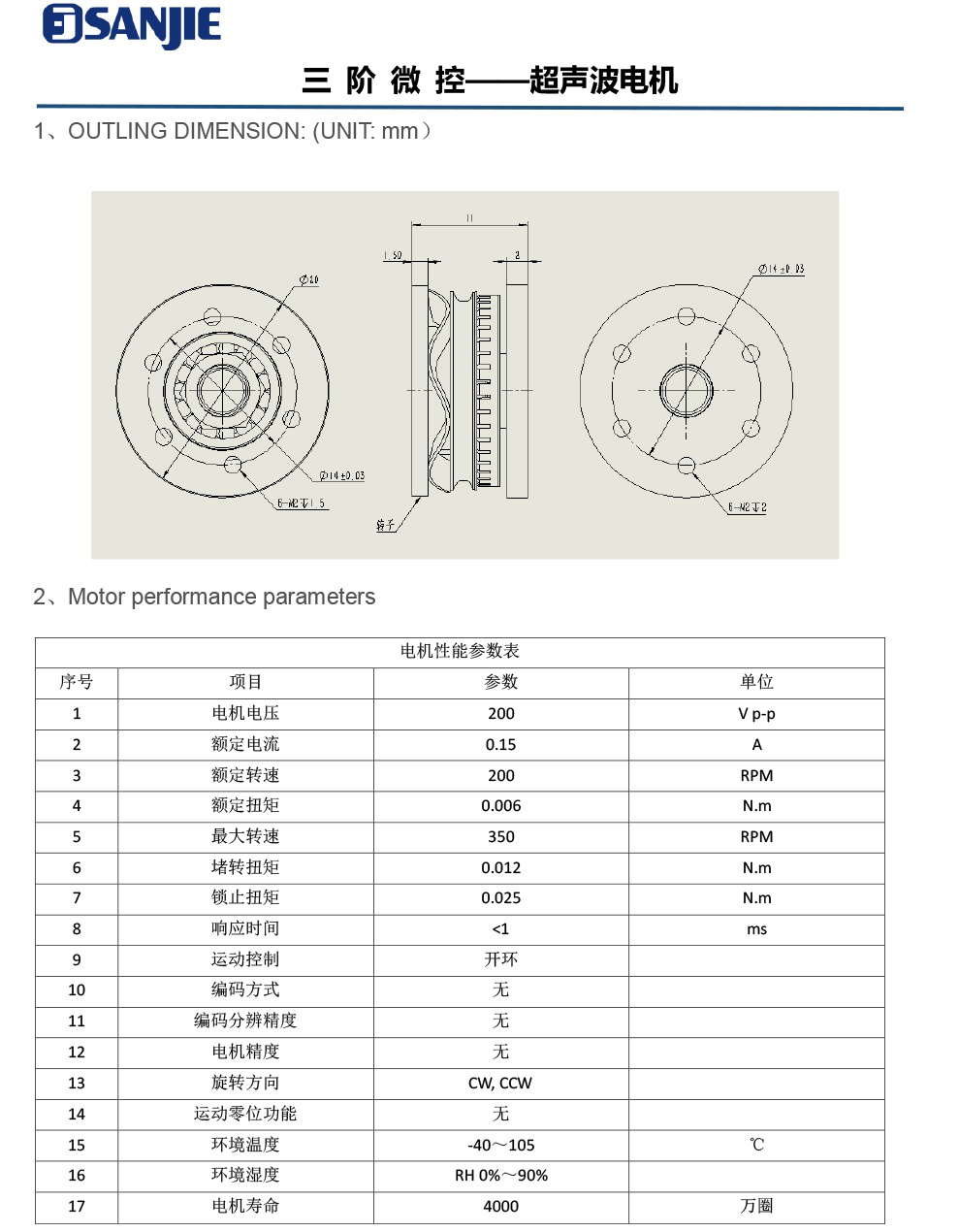

Specifications
| Parameter | Value |
|---|---|
| Motor Voltage | 200Vpp |
| Rated current | 0.15A |
| Rated Speed | 200RPM |
| Rated Torque | 0.006N·m |
| Maximum Speed | 350RPM |
| Stall Torque | 0.012N·m |
| Lock Torque | 0.025N·m |
| Response Time | <1ms |
| Motion Control | Open-loop |
| Encoding Method | None |
| Encoding Resolution | None |
| Motor Precision | None |
| Rotation Direction | CW |
| Rotation Direction | CCW |
| Zero Position Function | None |
| Operating Temperature | -40~105°C |
| Motor Lifetime | 4000 hours |
