SJ-PXS-012-15
The SJ-PXS-012-15 is a micro direct-drive ultrasonic motor with high precision and a compact design. It features a large torque-to-size ratio, anti-overload capability, and a quick response time of less than 1ms. The motor is designed for applications requiring high precision and reliability, such as optical systems, robotics, and drone gimbals.
Save to Favorites
Overview

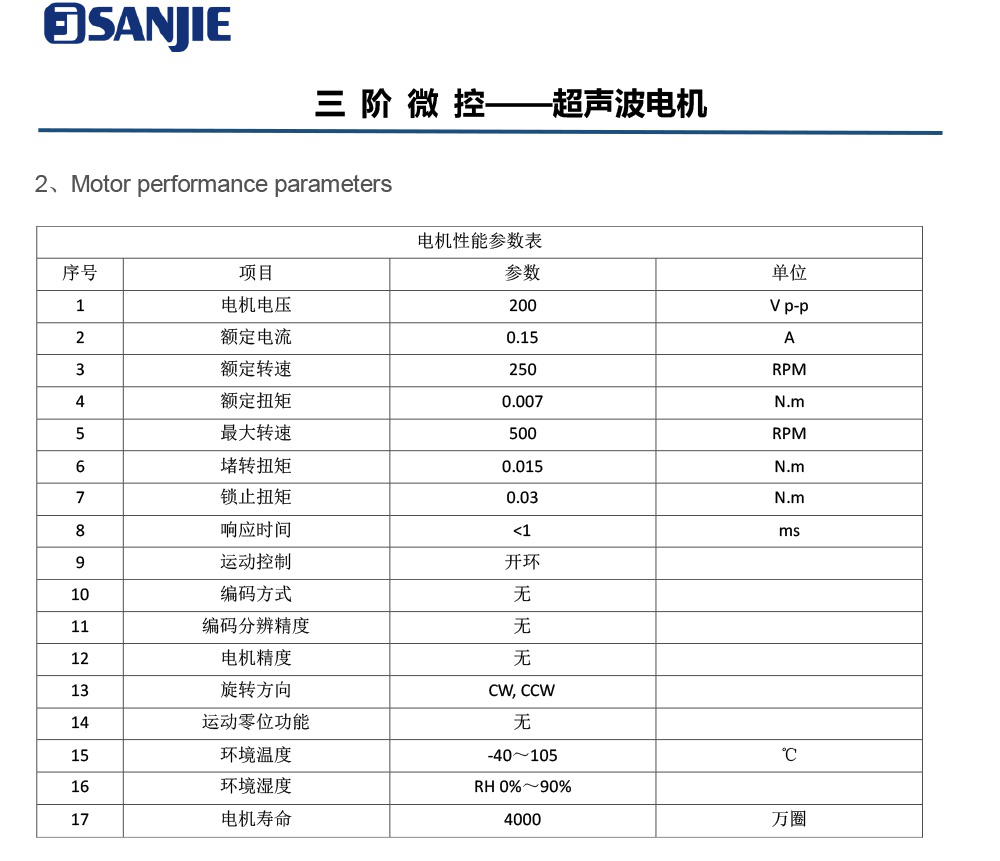

Specifications
| Parameter | Value |
|---|---|
| Motor Voltage | 200Vpp |
| Rated current | 0.15A |
| Rated Speed | 250RPM |
| Rated Torque | 0.007Nm |
| Maximum Speed | 500RPM |
| Stall Torque | 0.015Nm |
| Lock Torque | 0.03Nm |
| Response Time | <1ms |
| Motion Control | Open loop |
| Encoder Type | None |
| Encoder Resolution | None |
| Motor Accuracy | ±0.03° |
| Rotation Direction | CW |
| Rotation Direction | CCW |
| Zero Position Function | None |
| Operating Temperature | -40°C~105°C |
| Operating Humidity | RH 0%~90% |
| Motor Lifespan | 4000万圈 |
