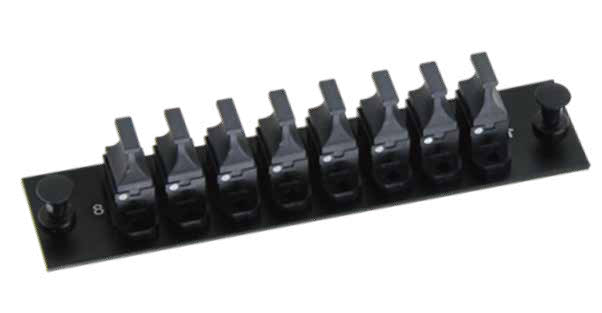

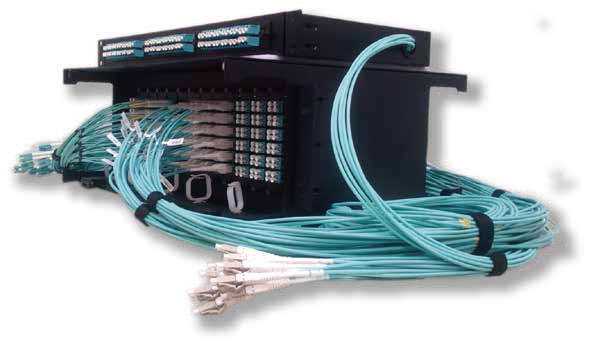

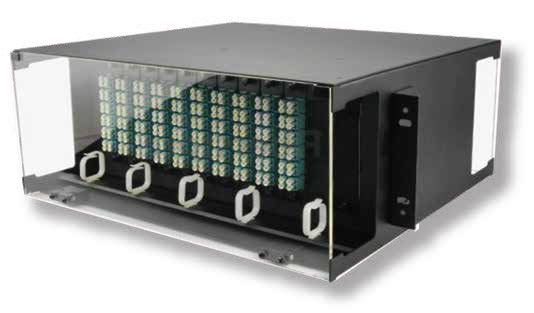

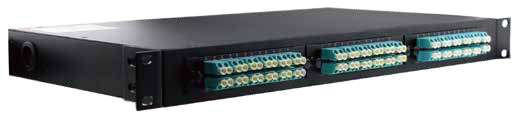

MTP Patch Panels

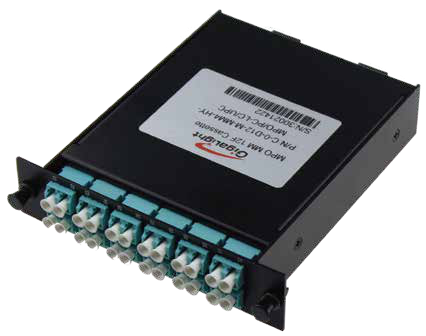

Gigalight's MTP patch panels are paired with MTP transition cassettes for high-density cabling management, supporting up to 576 fibers.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supported Fiber Count | 6, 8, 12, 18 |
| Adapter Type | MTP |
| Dimensions | Standard 19-inch rack mountable |
| Connection Type | MTP to MTP transition cassettes |
| Maximum Supported Fiber Count | 576 fibers |
Applications
Key Features
Datasheet
