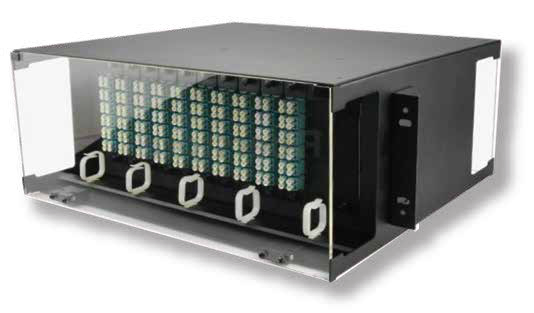

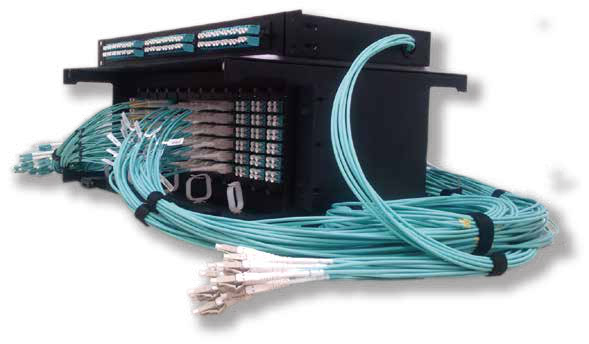

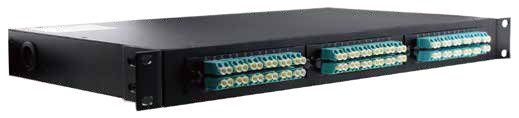

MTP Patch Panels

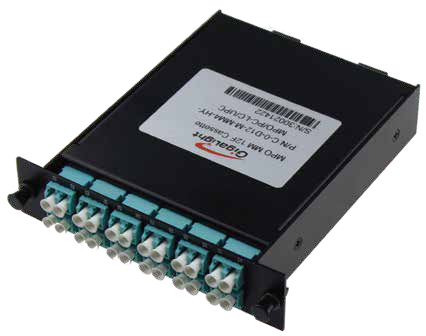

Gigalight's MTP patch panels are paired with MTP transition cassettes for high-density cabling management, supporting up to 576 fibers.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 19-inch standard |
| Fiber Count | Up to 576 fibers |
| Adapter Type | MTP |
| Panel Type | Rack-mounted |
| Connection Type | MTP to MTP transition cassettes |
| Material | Metal |
| Color | Black |
| Installation Method | Rack-mounted |
| Compatibility | Standard MTP connectors |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
Applications
Key Features
Datasheet
Supplier Information
