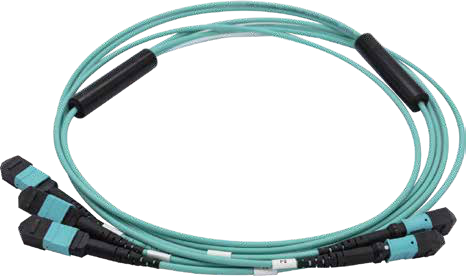

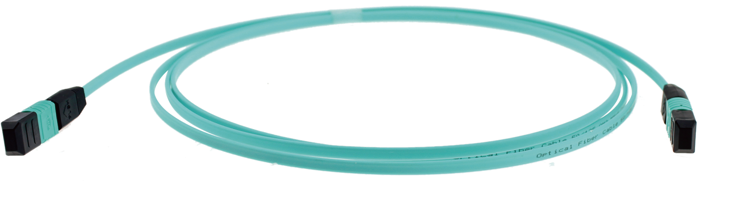

MTP Patch Cables

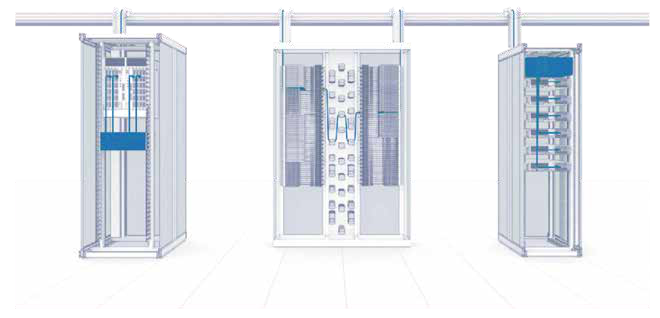

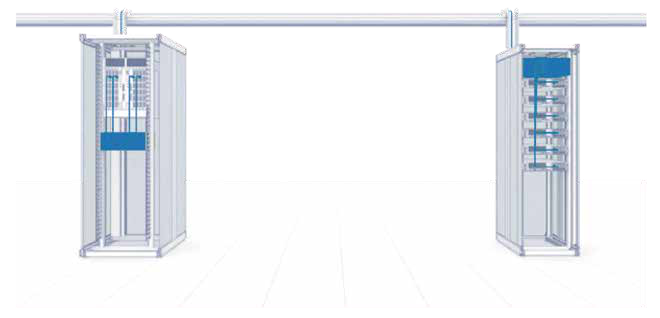

GIGALIGHT's MTP patch cables are designed for high-density data center cabling, supporting multimode and single-mode fiber connections with Base-8, Base-12, and Base-24 configurations.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Type | MMF/SMF |
| Fiber Count | 8/12/24 |
| Connector Type | MTP |
| Insertion Loss | ≤0.35dB |
| Return Loss | ≥20dB (MMF), ≥60dB (SMF) |
| Operating Temperature | -40°C to +85°C |
| Tensile Strength | ≥100N |
| Outer Jacket Material | LSZH/PVC |
| Length Range | 1m-100m |
| Wavelength Range | 850nm/1310nm |
Applications
Key Features
Datasheet
