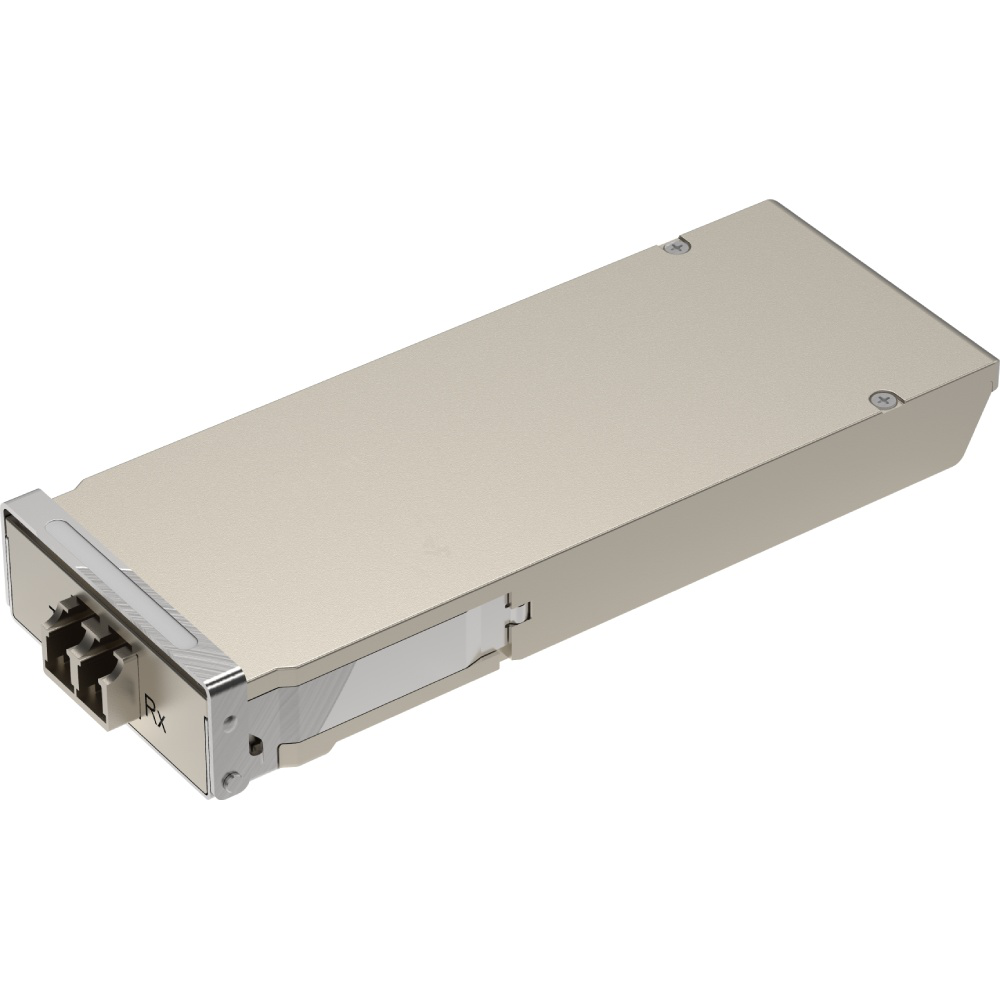

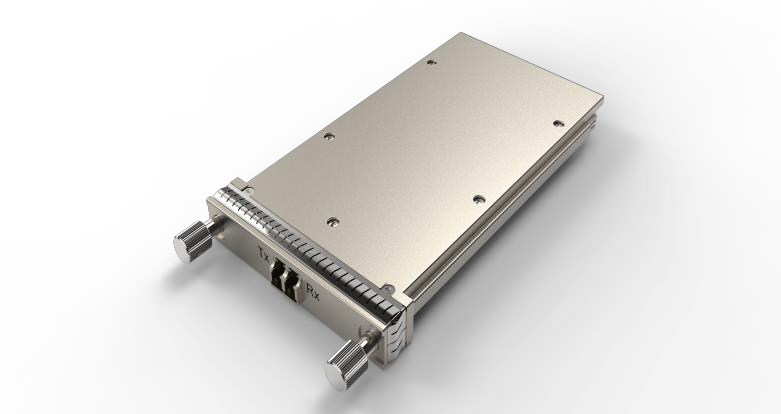

GIGALIGHT 100G CFP DCO Optical Transponder GCF-S101-xx-xTCA

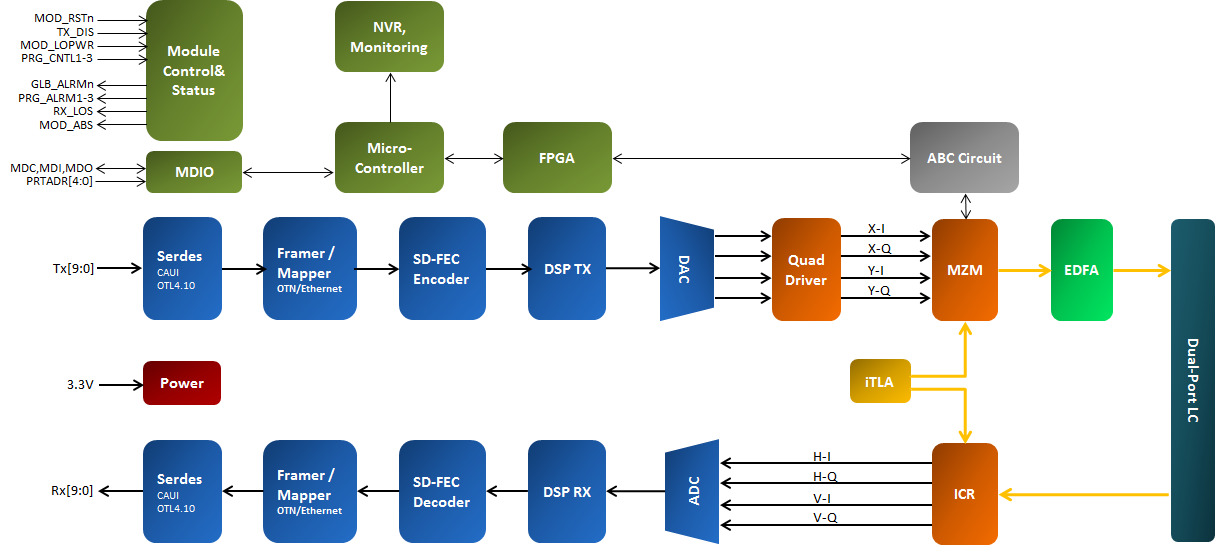

The GIGALIGHT 100G CFP DCO module is a hot-pluggable optical transponder designed for high-speed optical networking applications. It supports 100Gigabit Ethernet and OTU4 applications, offering CAUI and OTL4.10 electrical interfaces and MDIO module management. The module converts 10-lane OTU4/100GE electrical data streams to DP-D/QPSK optical signals in egress and vice versa in ingress.
Save to Favorites

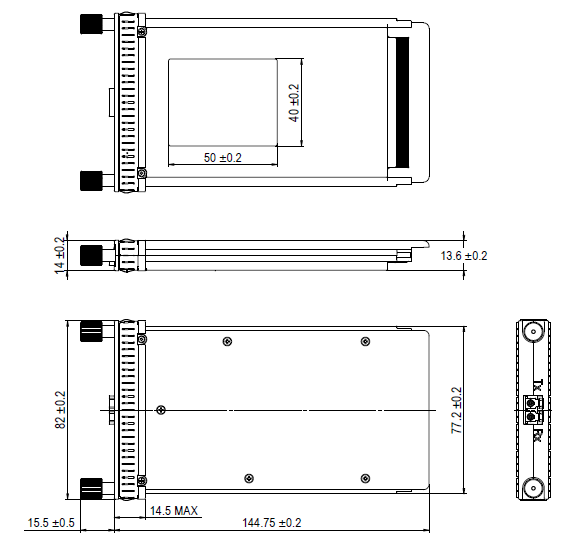

Overview
Specifications
| Parameter | Value |
|---|---|
| Operating optical data rate | up to 128Gbps |
| Transmission Distance | up to 2000km |
| CD tolerance | max. 40000ps/nm |
| DGD tolerance | 50ps |
| Operating case temperature range | 0°C to +70°C |
| Single power supply | 3.3V |
| Power dissipation | 21/28W |
| Signaling Rate for Each Lane (100GE) | 25.78125±100ppm |
| Signaling Rate for Each Lane (OTU4) | 27.95249±20ppm |
| Wavelength Range DWDM | 1529.16nm-1567.13nm |
| Channel Spacing | 50GHz |
| Laser Tuning Range | Full C-band 96 |
| Wavelength Accuracy | -2GHz to +2GHz |
| Output Power | -15dBm to +2dBm (With EDFA), -12dBm to -6dBm (Without EDFA) |
| Output Power Accuracy | -1dB to -2dB |
| Output Power Stability | -0.3dB to 0.3dB |
| Shutdown Optical Power | -40dBm |
| Spectral Width @-20dB | 50±3GHz |
| Transmitter OSNR | 35dB/0.1nm |
| Receive Rate for Each Lane (100GE) | 25.78125±100ppm |
| Receive Rate for Each Lane (OTU4) | 27.95249±20ppm |
| Receiver Optical Power | -18dBm |
| Receiver B2B Optical Power Sensitivity | -21dBm |
| Los Assert | -21dBm |
| Los De-assert | -18dBm |
| Los Hysteresis | 0.5dB |
| ZR OSNR | 17dB/0.1nm |
| MR OSNR | 15.5dB/0.1nm |
| LH OSNR | 13dB/0.1nm |
| Chromatic Dispersion Compensation | 2000ps/nm (ZR), 12000ps/nm (MR), 25000/40000ps/nm (LH) |
| Filter Tolerance | 30GHz to 45GHz |
| PMD Capability | 50ps |
| PDL Tolerance | 3dB |
| Polarization SOP Tracking | 20kHz |
| Receiver Cold-Start Turn-Up Time | 60s |
| Receiver Warm-Start Turn-Up Time | 30s |
| Hardware MOD_LOPWR assert | 10ms |
| TX Disable Assert Time | 10ms |
| Host Side RX_MONCLK Frequency | 174.7MHz (OTU4), 161.1MHz (100GE) |
| Output Differential Voltage | 600mV-1200mV |
| Return Loss | -12dB |
| Clock Duty Cycle | 40%-60% |
