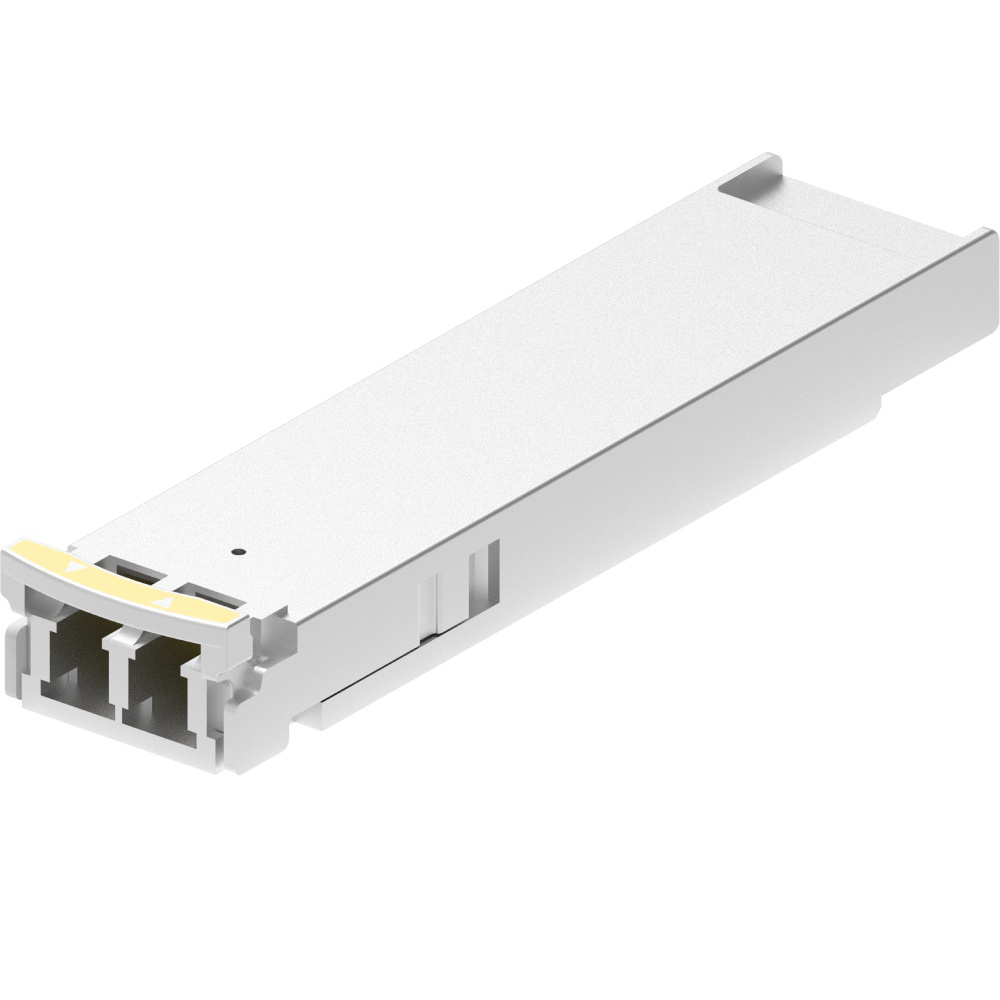

GX-858G-SRC

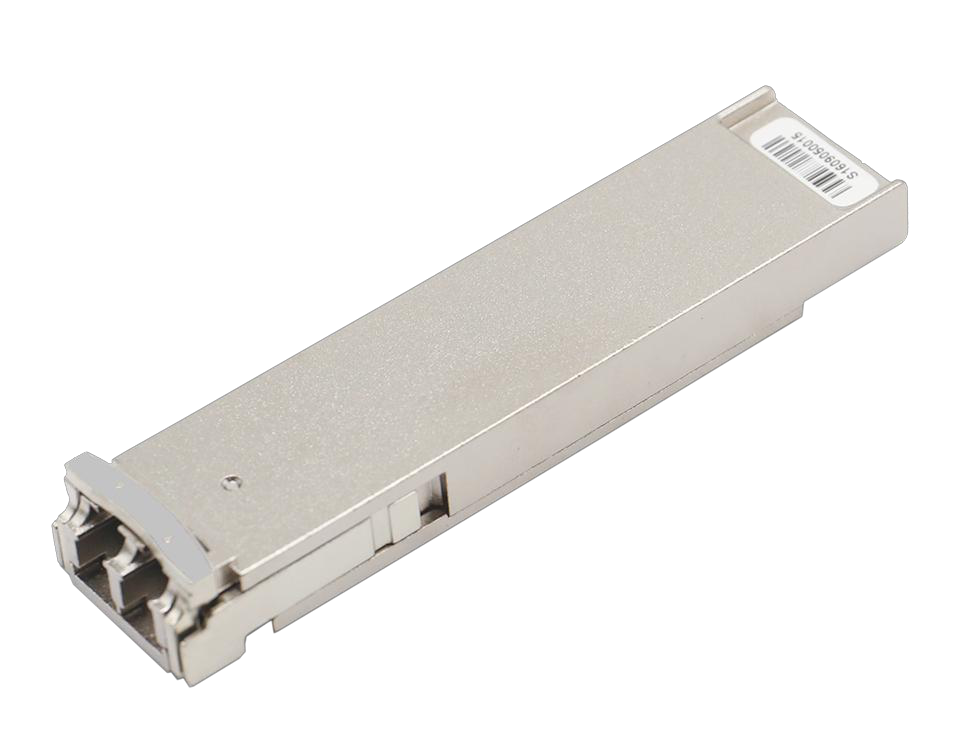

The Gigalight GX-858G-SRC is a high-performance XFP optical transceiver designed for 10G systems. It supports a data rate of 8.5Gbps and a transmission distance of up to 300m on 50μm MMF. The module features an 850nm VCSEL laser and PIN receiver, ensuring optimal heat dissipation and electromagnetic shielding.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Storage Temperature | -40°C~+85°C |
| Operating Relative Humidity | 0~85% |
| Supply Voltage | 3.13V~3.47V |
| Supply Current | 350mA |
| Module Power Dissipation | ≤1.5W |
| Input differential impedance | 100Ω |
| Differential Input Voltage Swing | 120mV~850mV |
| Transmit Disable Voltage | 2.0V~Vcc |
| Transmit Enable Voltage | GND~GND+0.8V |
| Transmit Disable Assert Time | ≤10μs |
| Center Wavelength (Transmitter) | 840nm~860nm |
| RMS Spectral Width | ≤0.65nm |
| Average Launch Power | -8dBm~0dBm |
| Optical Modulation Amplitude | -4.3dBm~1.5dBm |
| Extinction Ratio | ≥3.5dB |
| Relative Intensity Noise | ≤-128dB/Hz |
| Transmitter and Dispersion Penalty | ≤3.9dB |
| Center Wavelength (Receiver) | 840nm~860nm |
| Receiver Sensitivity in OMA | ≤-11.2dBm |
| Receiver Overload | ≤-1dBm |
| Stressed Receiver Sensitivity in OMA | ≤-7.5dBm |
| Los Assert | ≤-31dBm |
| Los Hysteresis | 0.5dB |
| Min Modal Bandwidth (MHz·Km) | 160 |
| Min Modal Bandwidth (MHz·Km) | 500 |
| Operating Range | 2m~26m |
| Operating Range | 2m~300m |
| Bit Rate | 8.5Gbps |
| Bit Error Ratio | 10^-12 |
