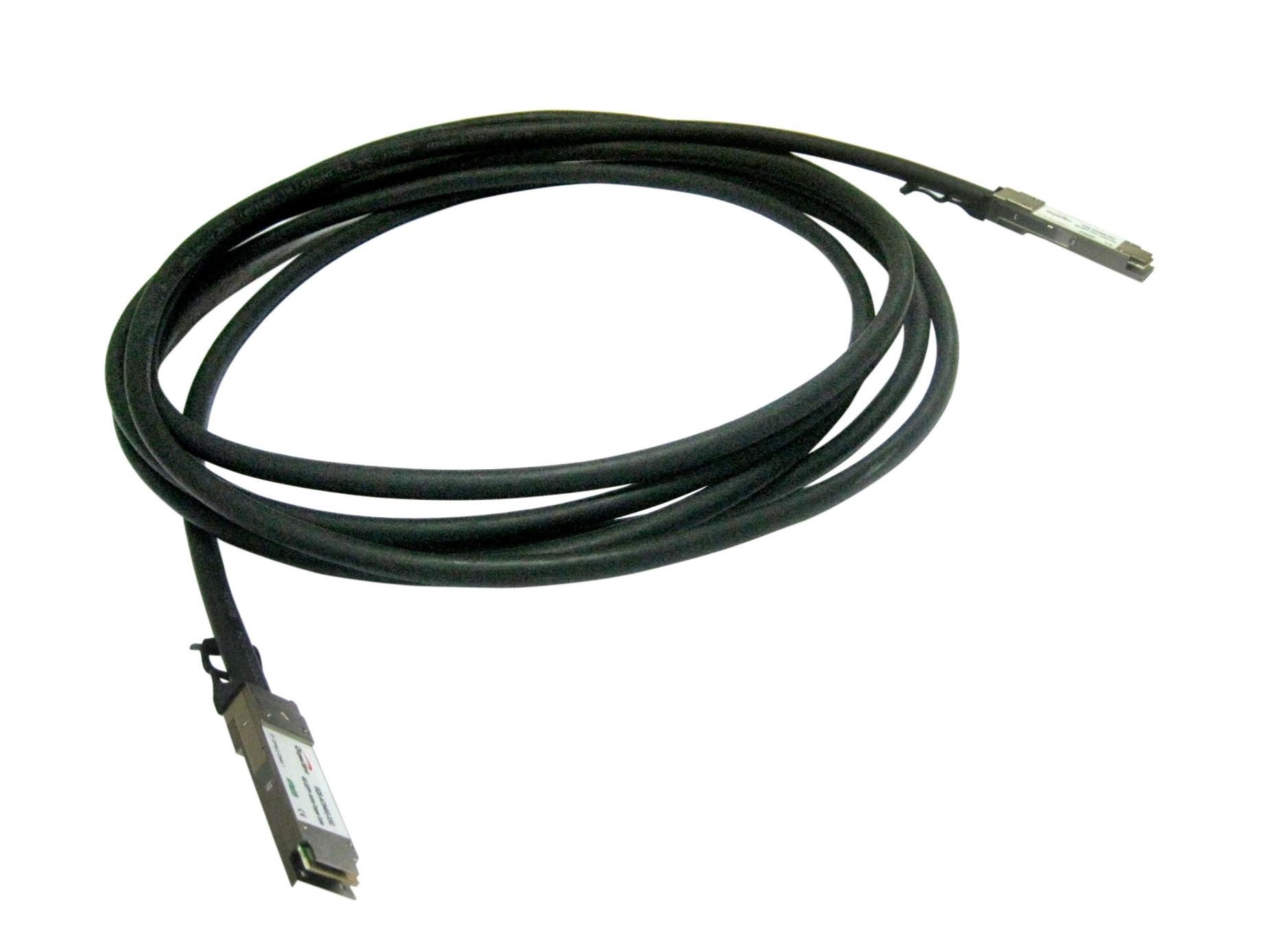

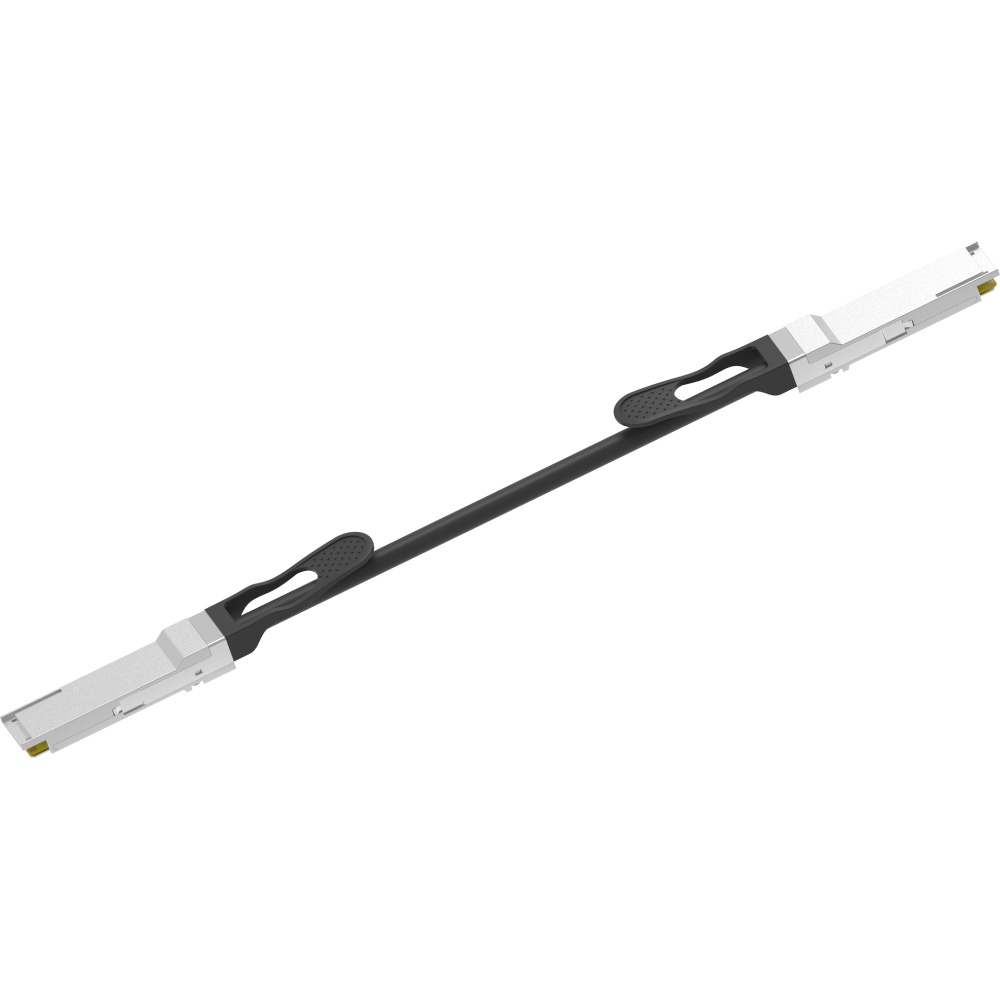

QSFP+ Direct Attach Passive Copper Cable
The QSFP+ Direct Attach Passive Copper Cable is a high-performance, cost-effective I/O solution for 56G LAN, HPC, and SAN applications. It is compliant with SFF-8436 and designed for short-reach interconnect applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| QSFP+ conforms to the Small Form Factor SFF-8436 | Yes |
| Number of Channels | 4 |
| Maximum Aggregate Data Rate | 56Gb/s (4x14.02Gb/s) |
| Copper link length | ≤5m |

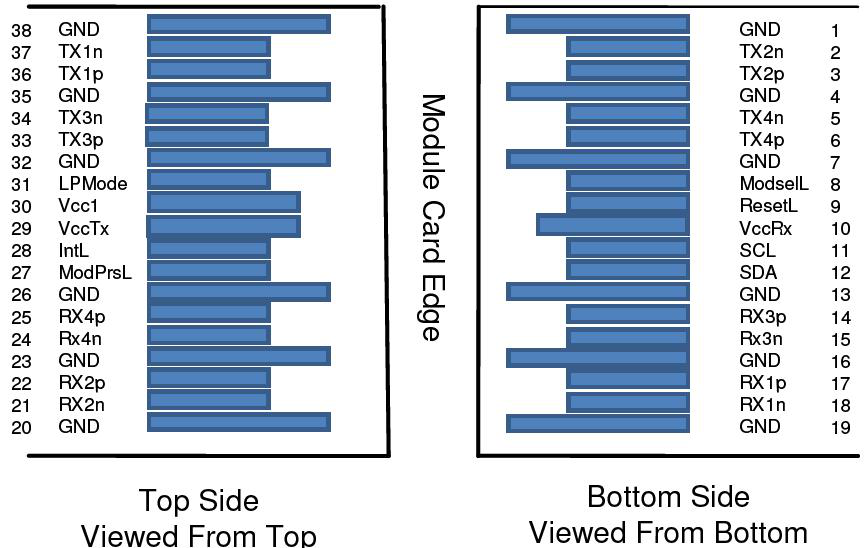

| High-Density QSFP 38-PIN Connector | Yes |
| Insertion Loss | Low |
| Power Consumption | 0.02W (typ.) |
| Power Supply Voltage | 3.14V-3.47V |
| Storage Ambient Temperature | -40°C to +85°C |
| Operating Case Temperature | 0°C to +70°C |
| Minimum Bend Radius | 8.25mm (AWG30), 43.5mm (AWG26) |
