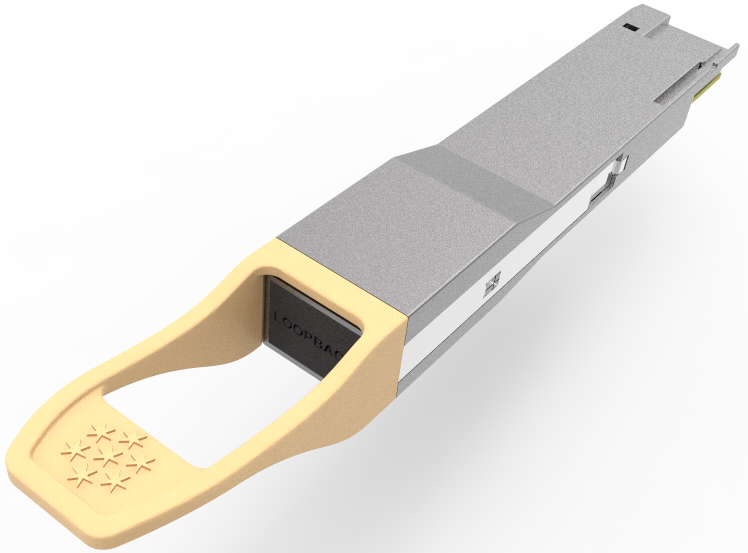

400G QSFP-DD Active Electrical Loopback Module
The GQD-MPO401-LP8C QSFP-DD active electrical loopback is designed for testing 400G QSFP-DD transceiver ports in board-level tests. It provides a cost-effective and low-loss method for QSFP-DD port testing, substituting full-featured transceivers.
Save to Favorites

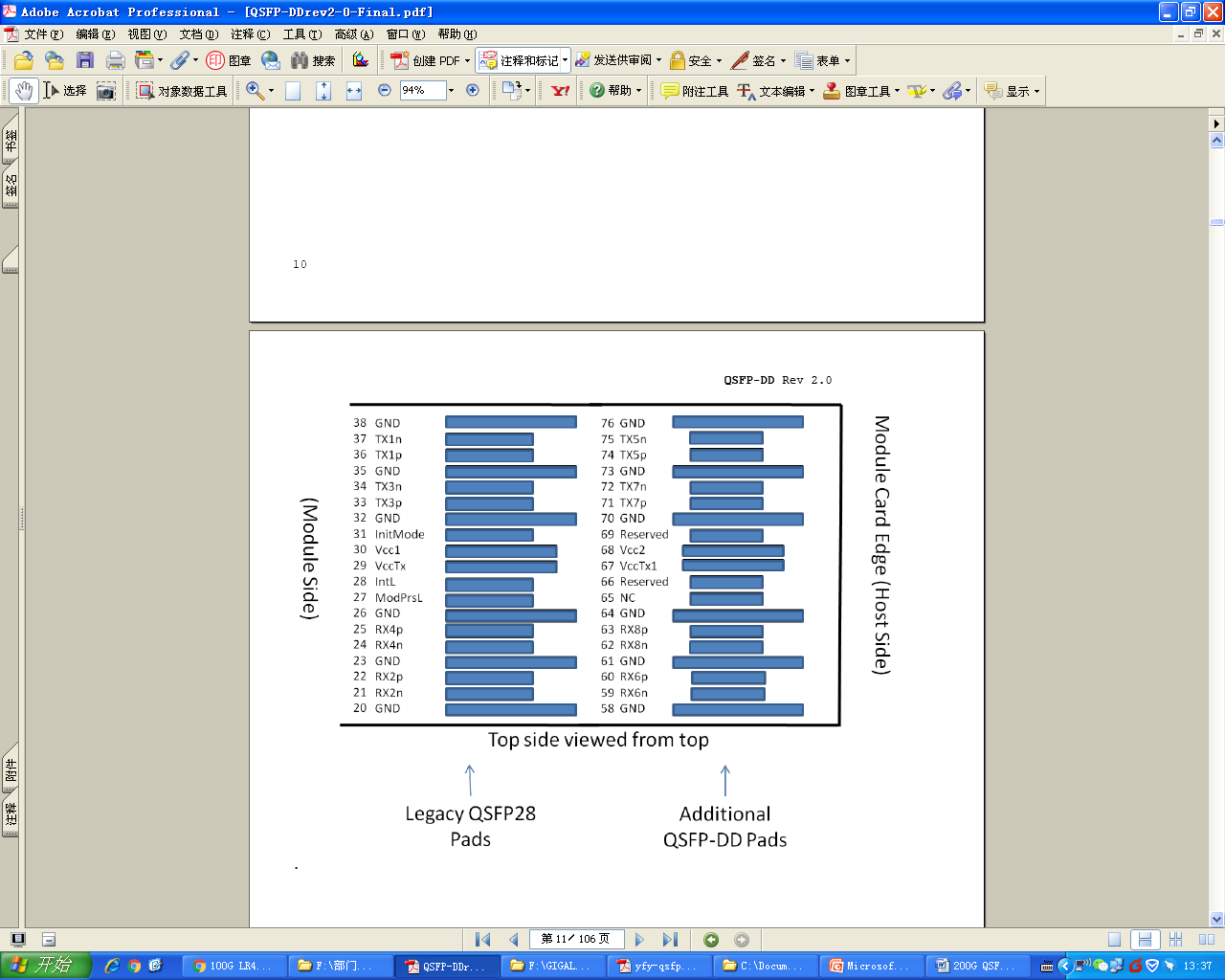

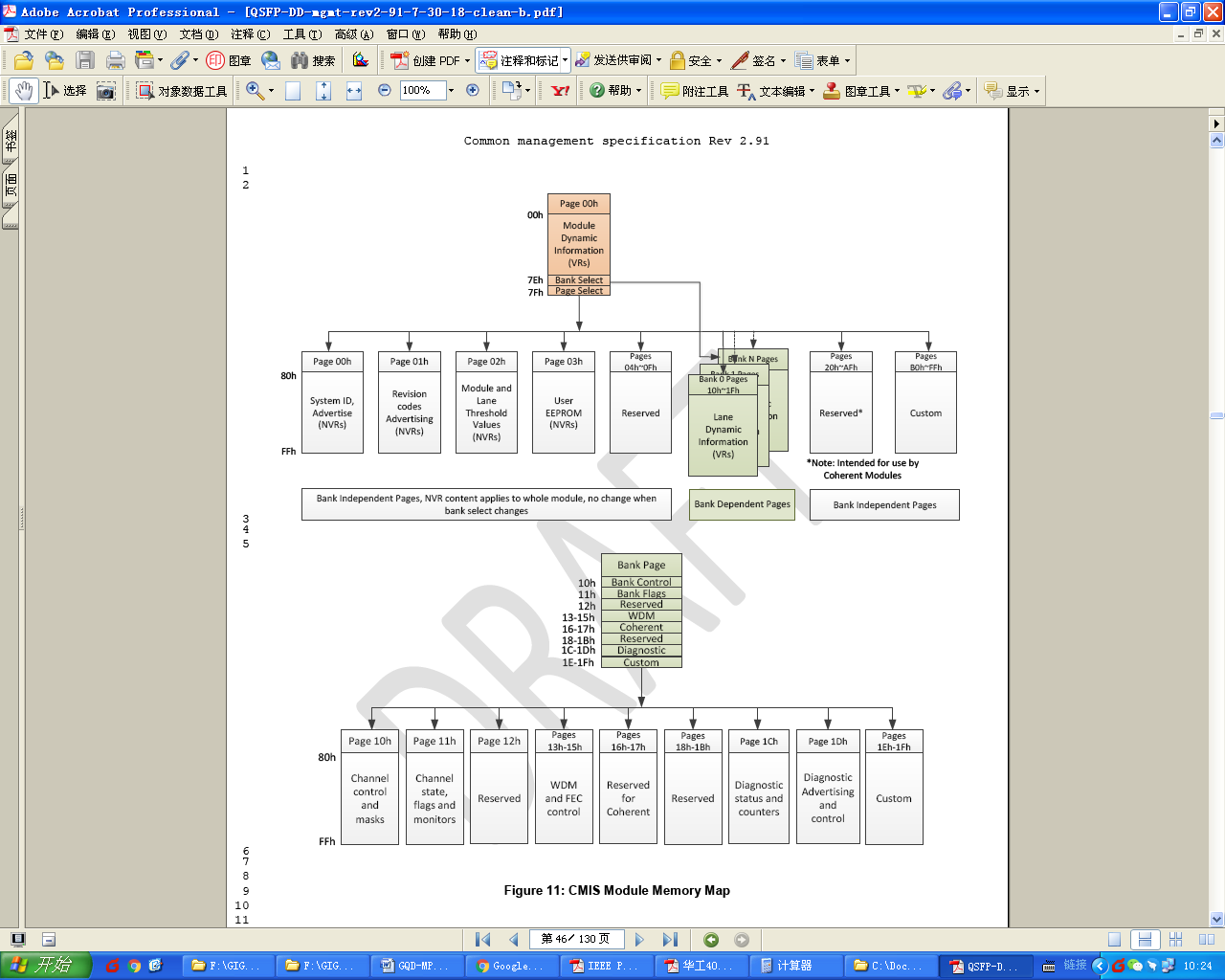

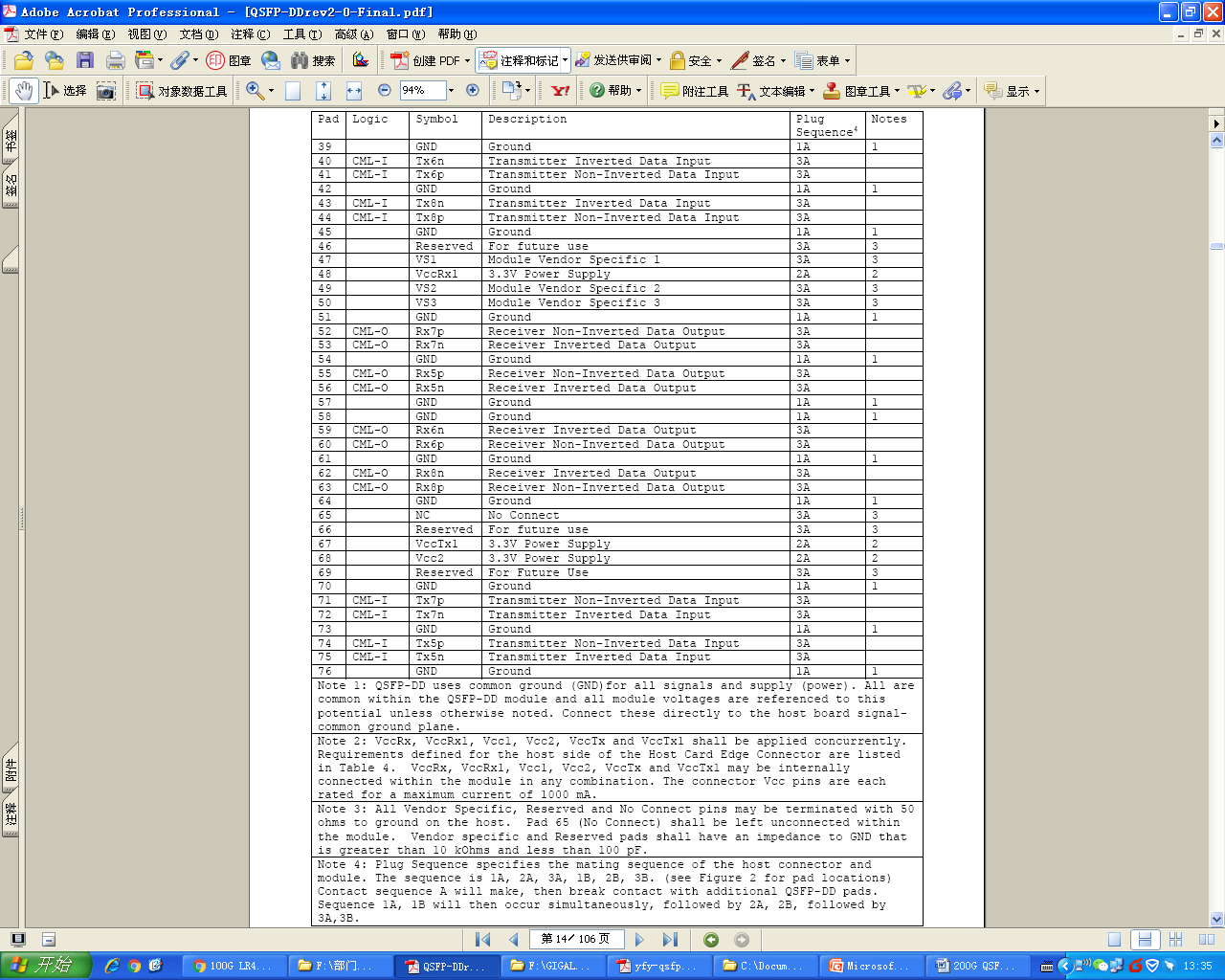

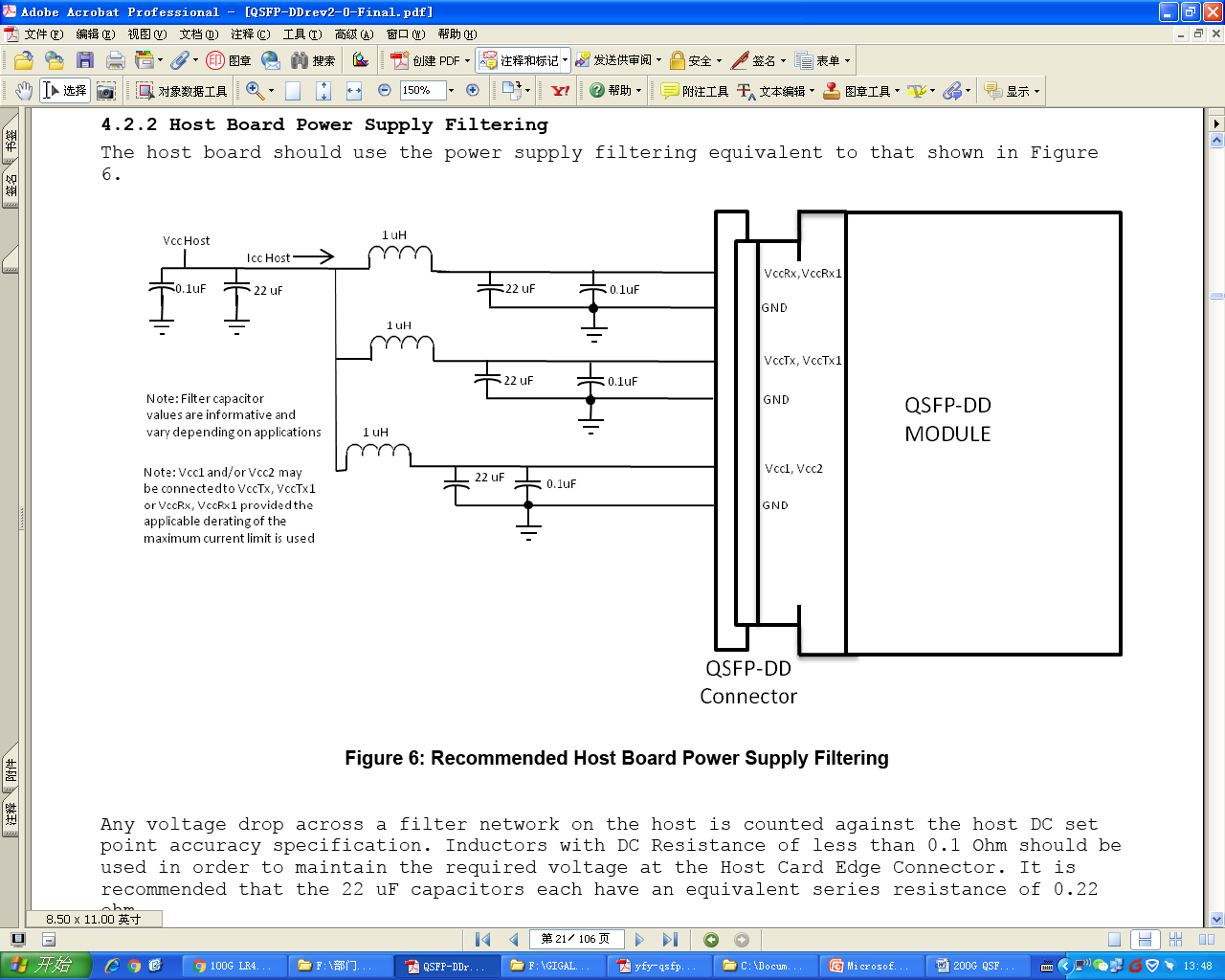

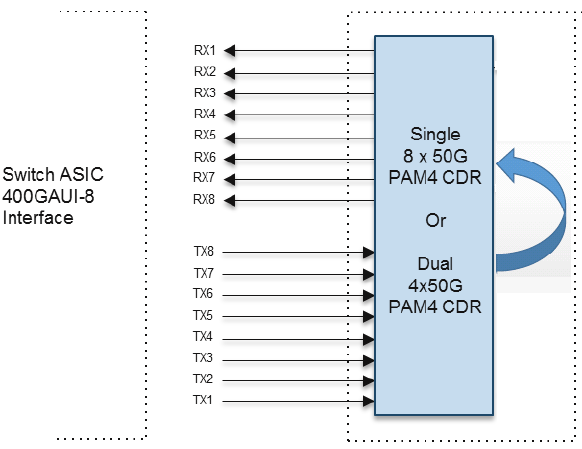

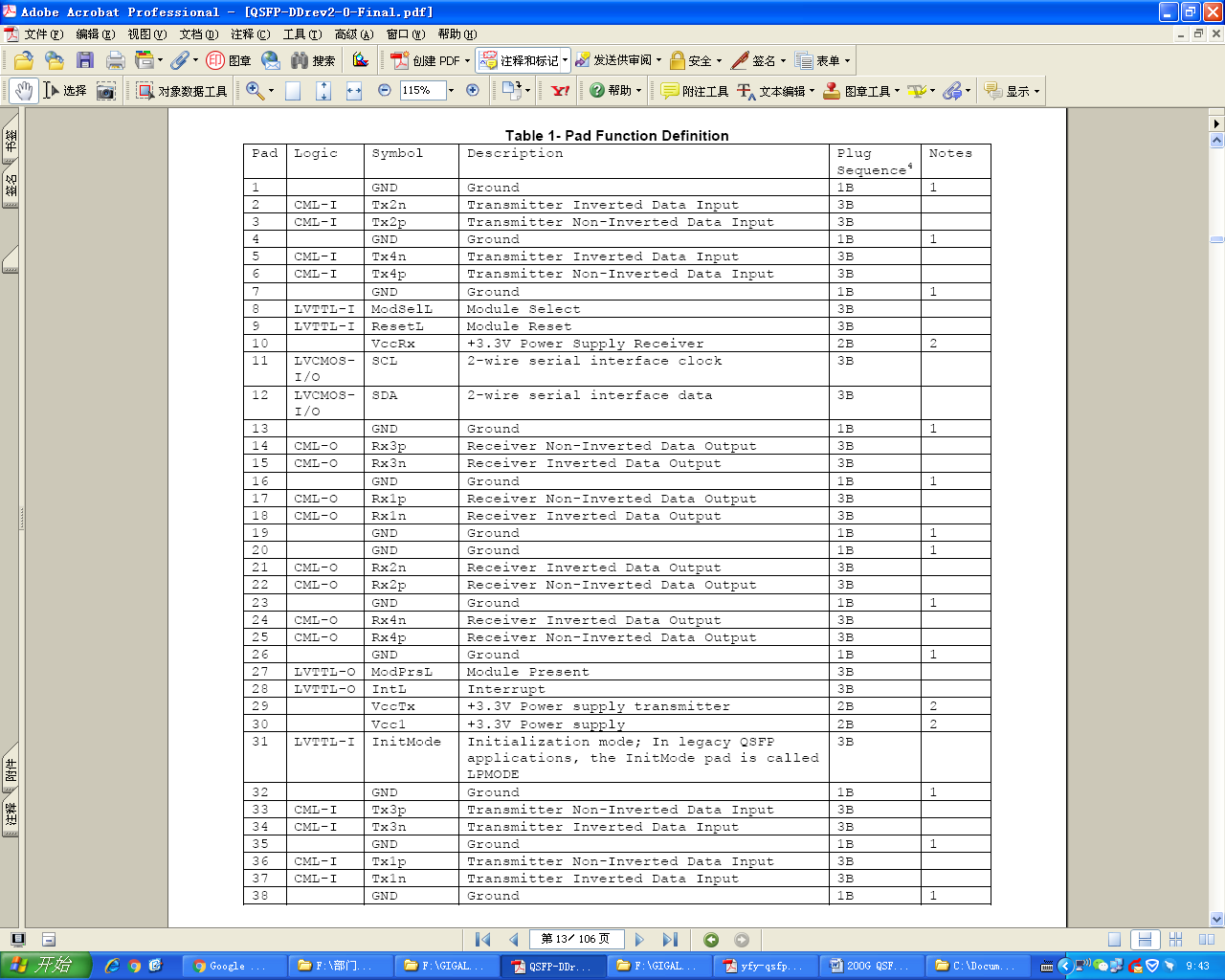

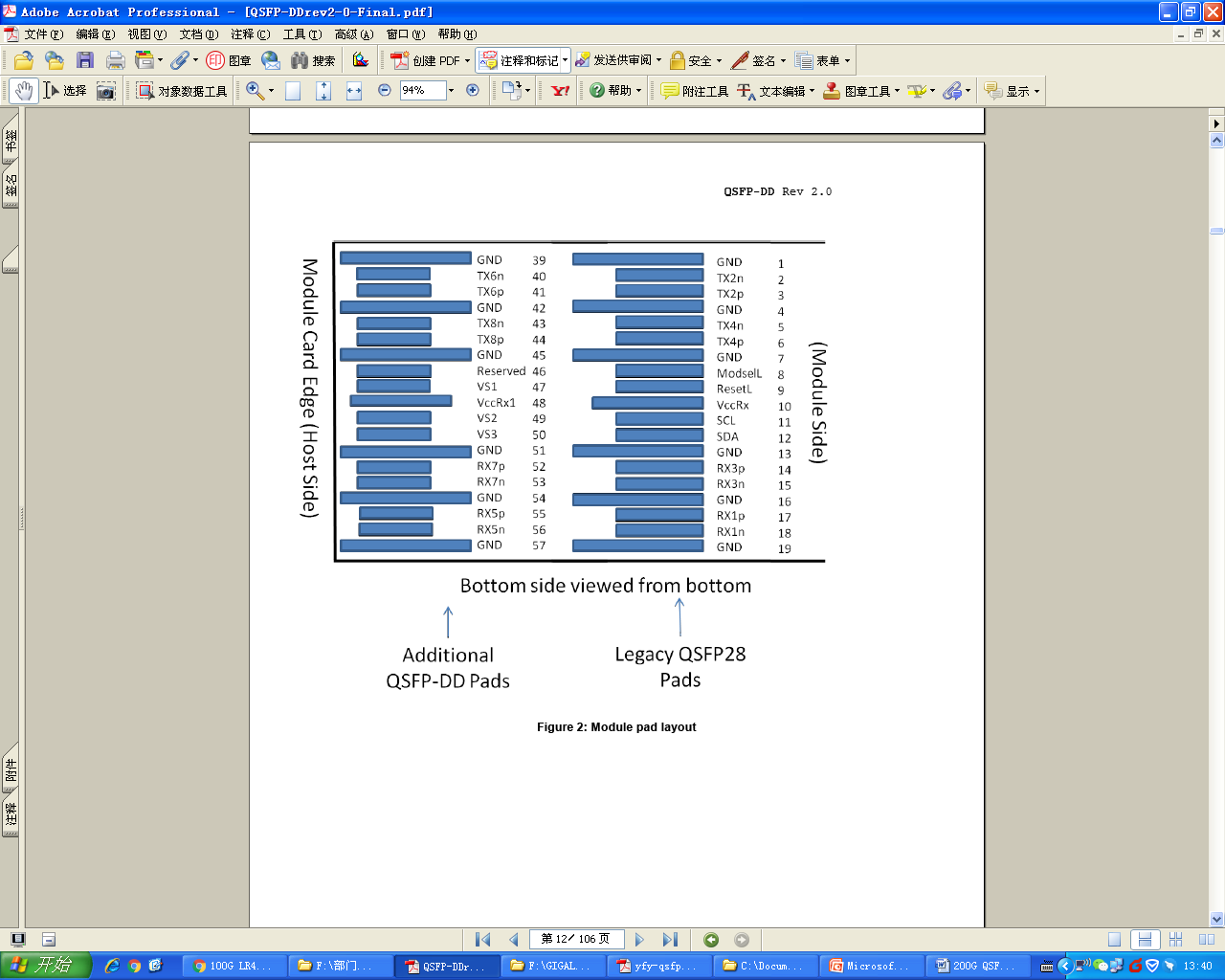

Overview

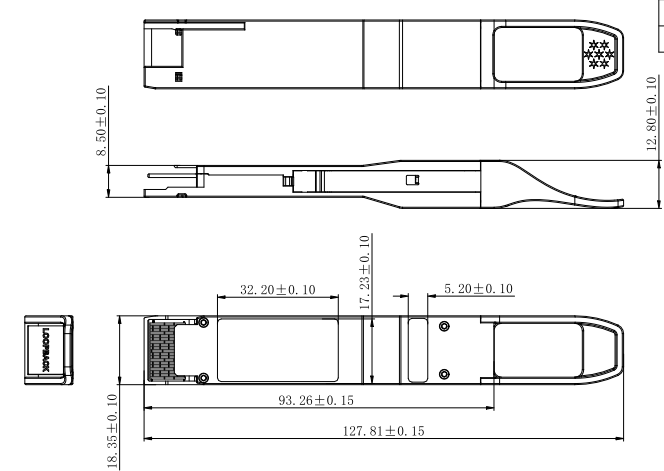

Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 3.13-3.47V |
| Operating Case Temperature | 0-70°C |
| Baud Rate per Lane (PAM4) | 26.5625GBaud/s |
| Humidity (non-condensing) | 5-95% |
| Power Dissipation | <5W |
| Differential Input Impedance | 90-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 300-1100mVpp |
| Differential Output Voltage Amplitude | 300-900mVpp |
| Bit Error Rate | E-12 |
| Input Logic Level High | 2.0V |
| Input Logic Level Low | 0-0.8V |
| Output Logic Level High | Vcc-0.5V |
| Output Logic Level Low | 0-0.4V |
| Storage Temperature | -40-85°C |
