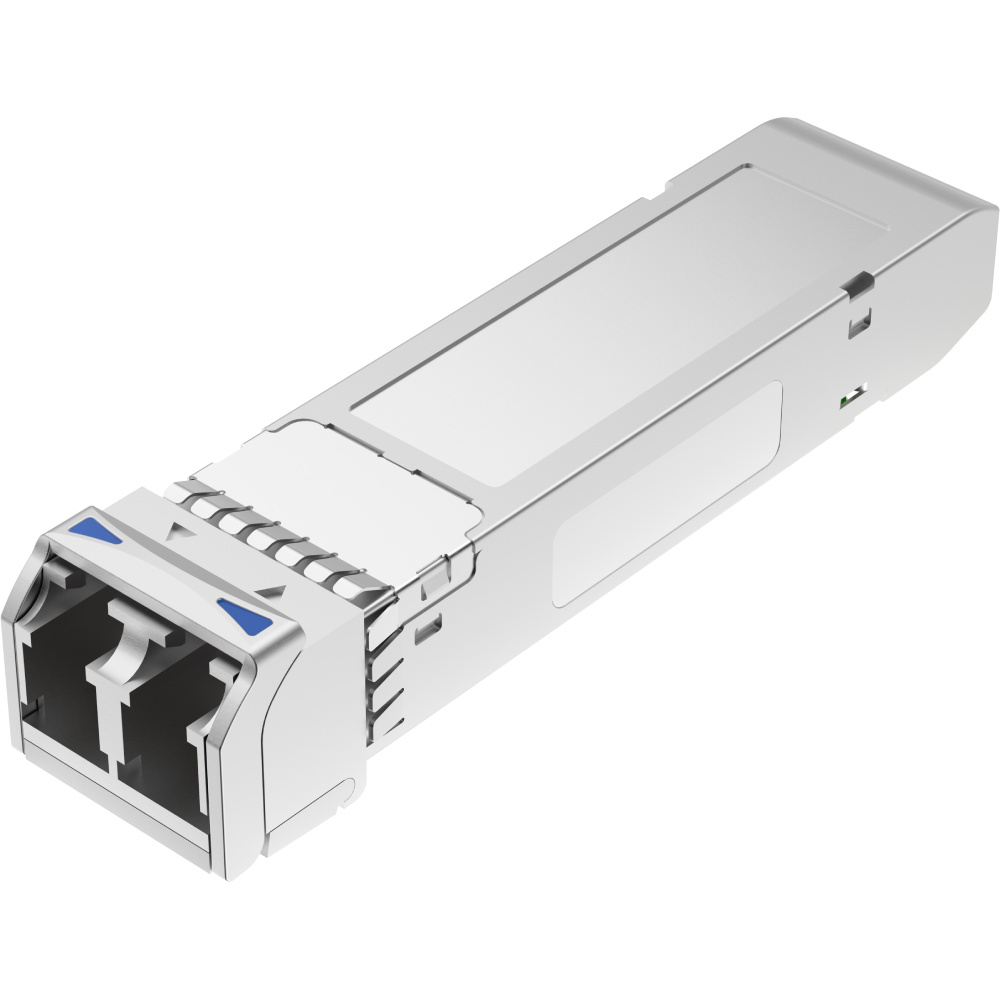

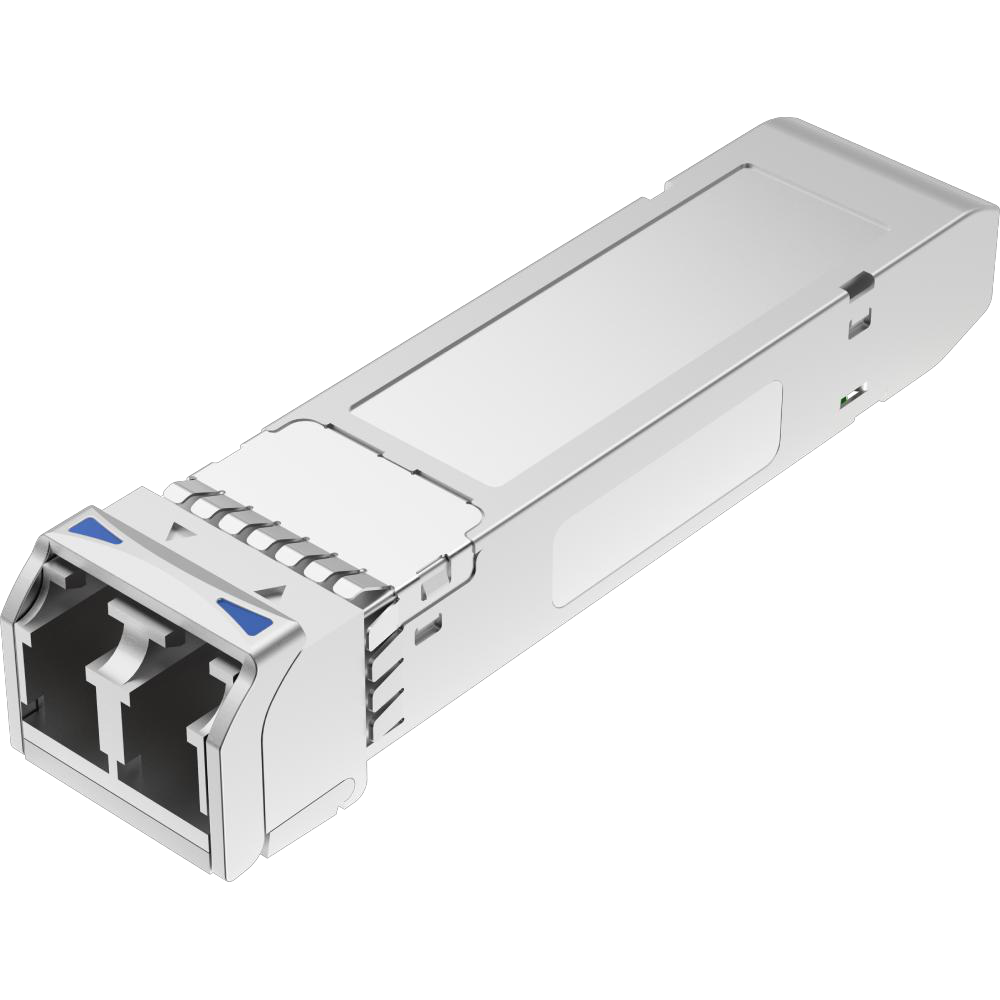

GHP-313G-02x(D)
The GHP-313G-02x(D) is a high-performance, cost-effective module designed for duplex video transmission over single-mode fiber. It supports data rates from 50Mbps to 2.97Gbps and complies with SMPTE standards, ensuring robust performance in SDI pathological patterns.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Centre Wavelength | 1260-1360nm |
| Spectral Width (RMS) | - |
| Average Output Power | -8 to -3dBm |
| Extinction Ratio | 5dB |
| Optical Rise/Fall Time (20%-80%) | - |
| Data Input Swing Differential | 400-1800mV |
| Input differential impedance | 100Ω |
| TX Disable | 0.8V |
| TX Fault | 2.0V |
| Receiver Wavelength | 1260-1580nm |
| Receiver Sensitivity (SD-SDI) | -16dBm |
| Receiver Sensitivity (HD-SDI) | -15dBm |
| Receiver Sensitivity (3G-SDI) | -14dBm |
| Receiver Overload | -3dBm |
| Los De-assert | -22dBm |
| Los Assert | -30dBm |
| Los Hysteresis | 1-4dB |
| Data Output Swing Differential | 650-1000mV |
| LOS High | 2.0V |
| LOS Low | 0.8V |
| Operating Case Temperature (Standard) | 0 to +70°C |
| Operating Case Temperature (Industrial) | -40 to +85°C |
| Power Supply Voltage | 3.13-3.47V |
| Power Supply Current | 400mA |
| Data Rate | 3Gbps |
| Storage Temperature | -40 to +85°C |
| Operating Humidity | 5-85% |
Applications
Key Features
Datasheet
