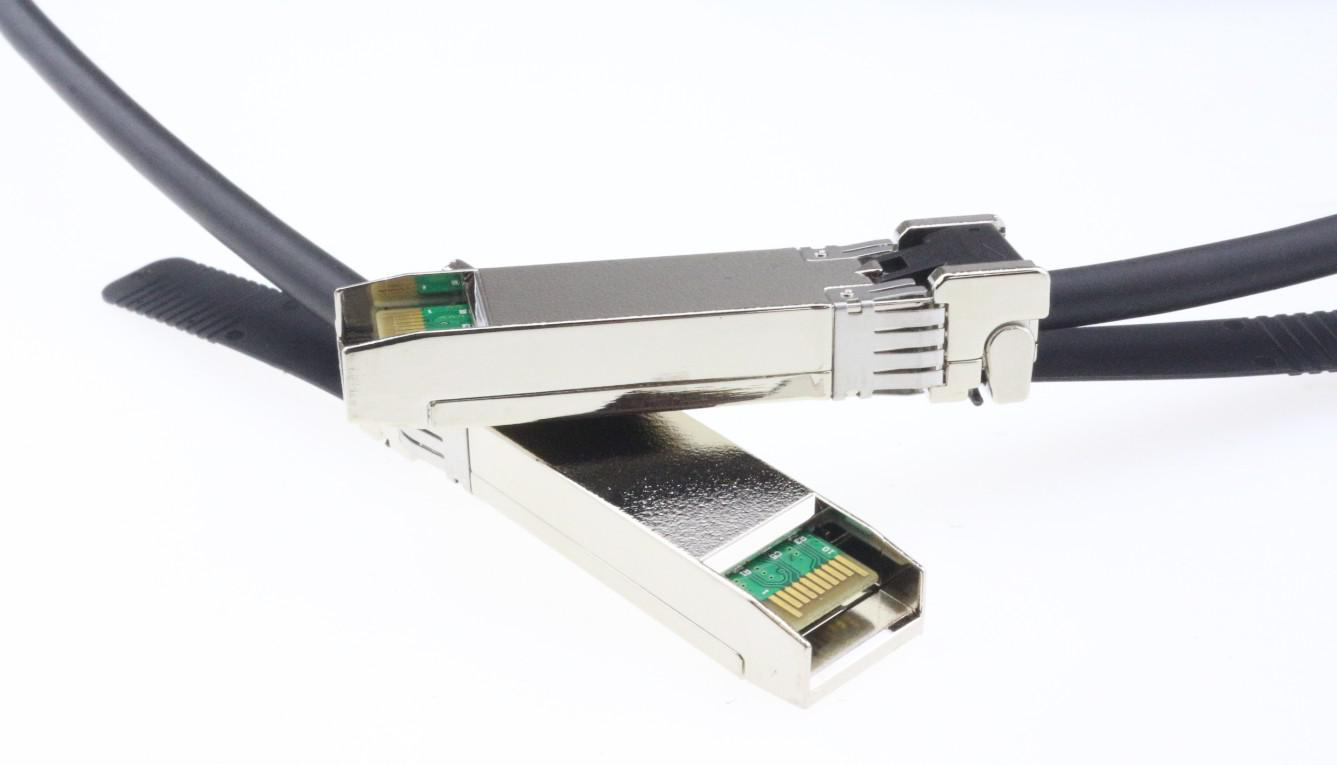

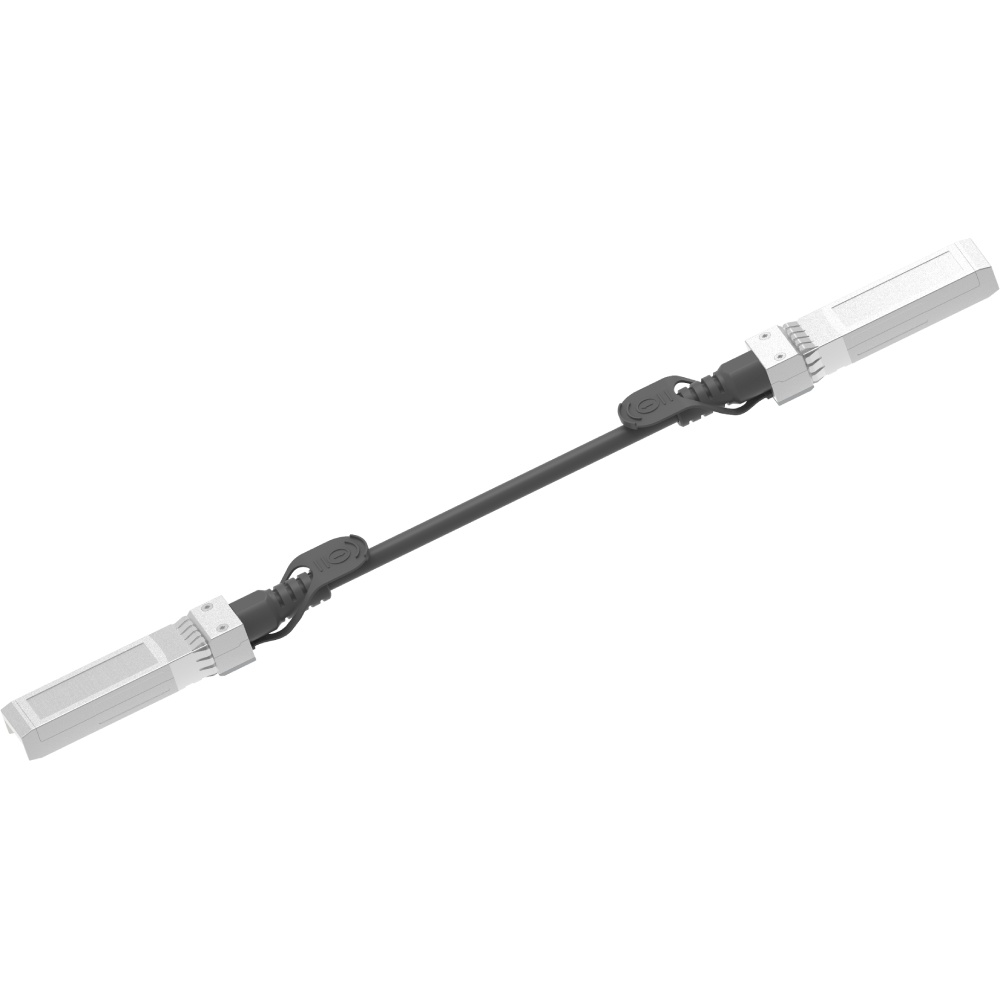

25GE SFP28 Direct Attach Passive Copper Cables
The SFP28 passive cable assemblies are high-performance, cost-effective I/O solutions for 25G Ethernet. SFP28 copper cables allow hardware manufacturers to achieve high port density, configurability, and utilization at a very low cost and reduced power budget.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 25.78125Gbps |
| Transmission Distance | Up to 5m |
| Hot-pluggable SFP28 20PIN footprint | Yes |
| Improved Pluggable Form Factor (IPF) | Compliant for enhanced EMI/EMC performance |
| Compatible with SFP28 MSA | Yes |
| Compatible with SFF-8402 and SFF-8432 | Yes |
| Power Consumption | <0.1W |
| Operating Temperature Range | 0°C to 70°C |
| Storage Ambient Temperature | -40°C to +85°C |
| Operating Case Temperature | 0°C to +70°C |
| Power Supply Voltage | 3.14V to 3.47V |
| Differential Impedance (bulk cable) | 95Ω to 110Ω |
| Differential Impedance (Mated connector) | 90Ω to 110Ω |
| Differential Impedance (cable termination) | 85Ω to 110Ω |
| Insertion Loss | 22.48dB at 12.8906GHz |
| Differential Return Loss | See Note 1 at 0.05 to 4.1GHz |
| Common-mode to common-mode output return loss | 2dB at 0.2 to 19GHz |
| Differential to common-mode return loss | 6.3dB at 15.7 to 19GHz |
| Channel Operating Margin | 3dB |
