25G SFP28 Active Electrical Loopback Module

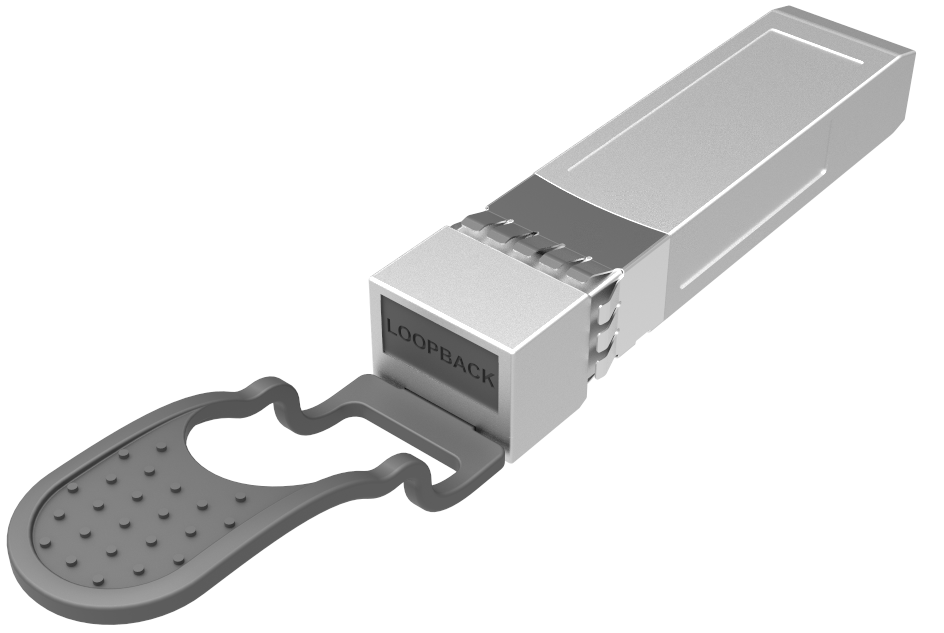

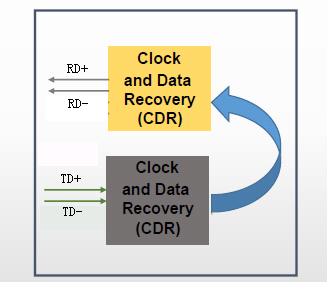

The GSS-MPO250-LP SFP28 active electrical loopback module is designed for testing 25G SFP28 transceiver ports at the board level. It provides a cost-effective and low-loss method for SFP28 port testing by substituting a full-featured SFP28 transceiver. The module is packaged in a standard MSA housing compatible with all SFP28 ports, routing transmit data from the host internally to the receive data outputs and back to the host. It is ideal for R&D validation, production testing, and field testing.
Save to Favorites
Overview
Specifications

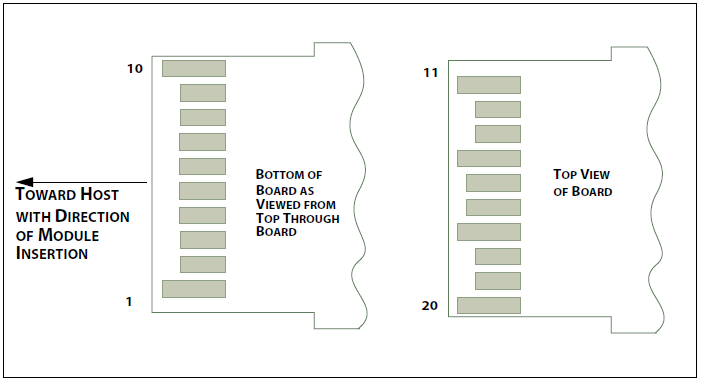

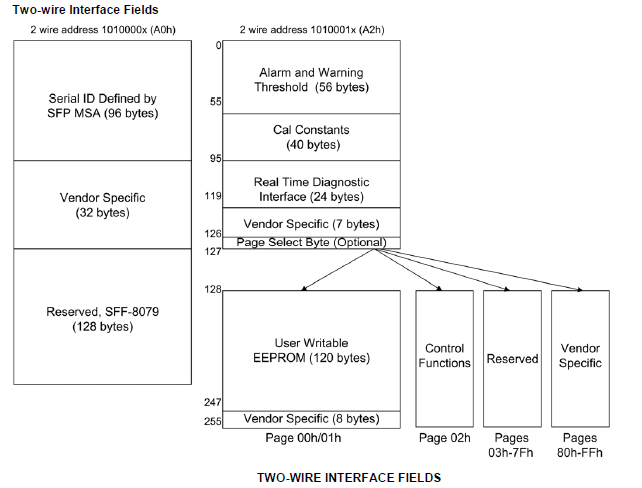

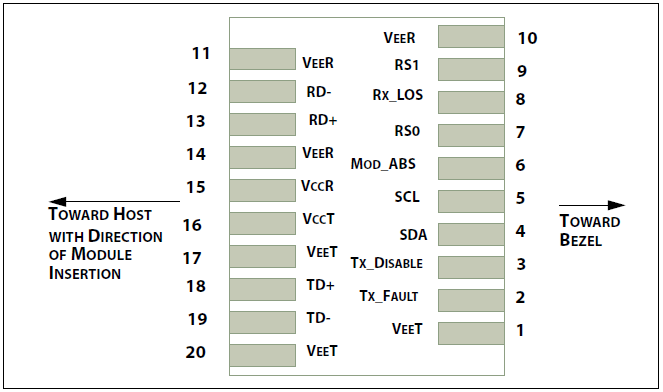

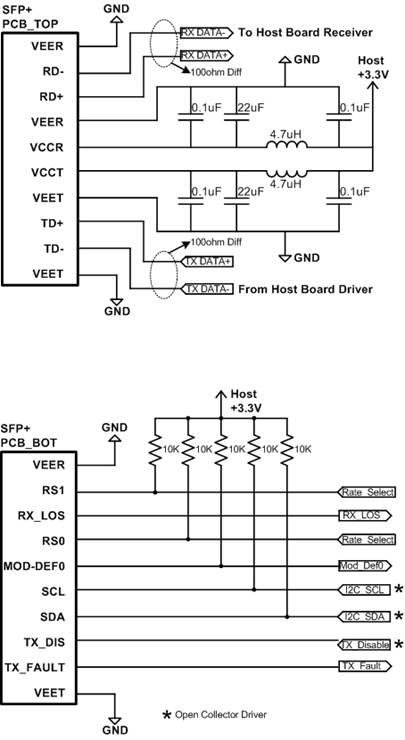

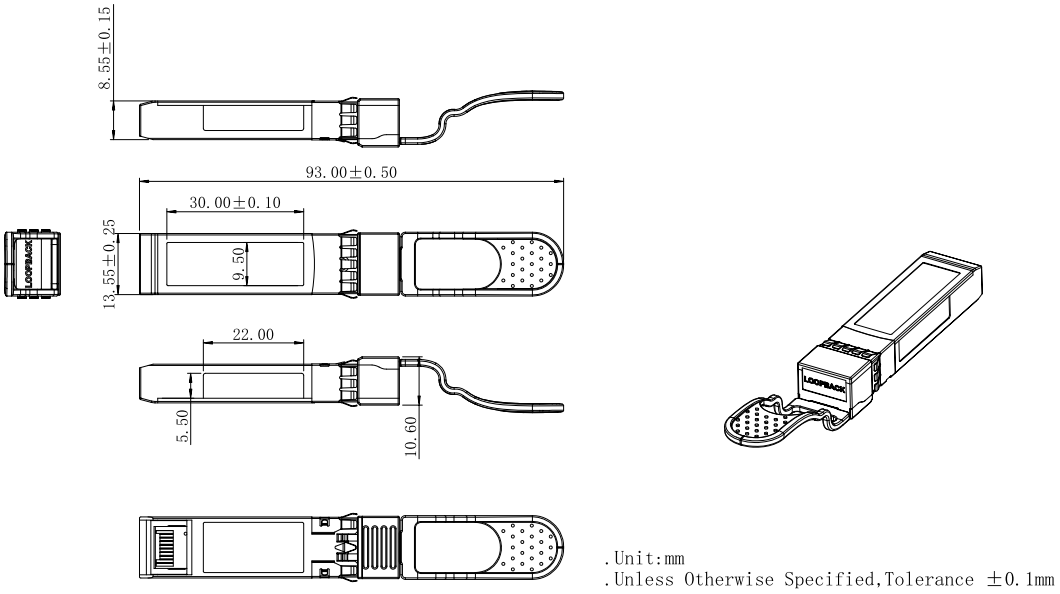

| Parameter | Value |
|---|---|
| Supply Voltage | -0.3~3.6V |
| Input Voltage | -0.3~Vcc+0.3V |
| Storage Temperature | -40~85°C |
| Case Operating Temperature | 0~70°C |
| Humidity (non-condensing) | 5~95% |
| Supply Voltage (Recommended) | 3.13~3.47V |
| Case Operating Temperature (Recommended) | 0~70°C |
| Data Rate Per Lane | 25.78125Gb/s |
| Humidity (Recommended) | 5~85% |
| Power Dissipation | <1W |
| Differential Input Impedance | 90~110ohm |
| Differential Output Impedance | 90~110ohm |
| Differential Input Voltage Amplitude | 300~900mVpp |
| Differential Output Voltage Amplitude | 300~800mVpp |
| Bit Error Rate | E-12 |
| Input Logic Level High | 2.0~VccV |
| Input Logic Level Low | 0~0.8V |
| Output Logic Level High | Vcc-0.5V |
| Output Logic Level Low | 0~0.4V |
