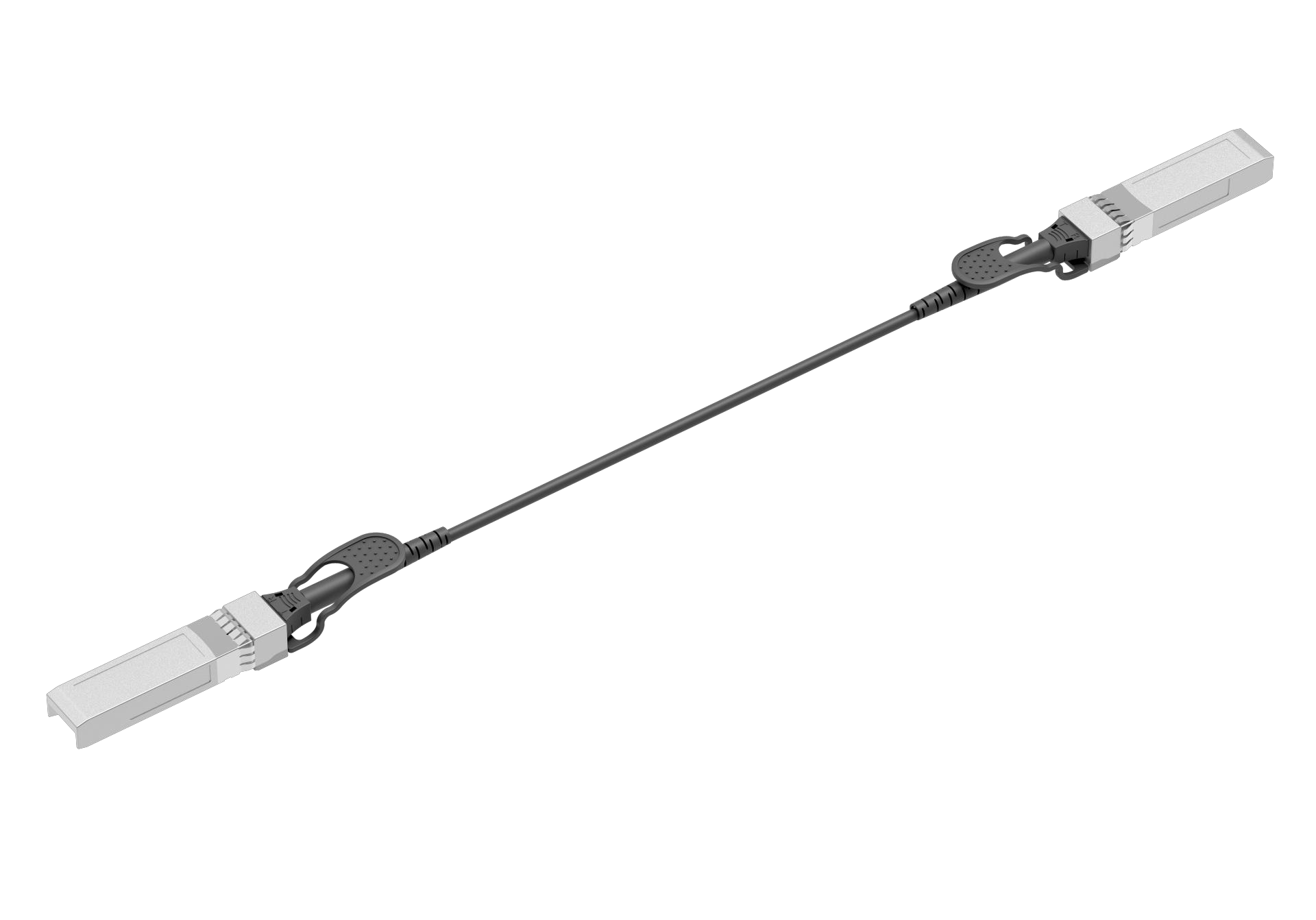

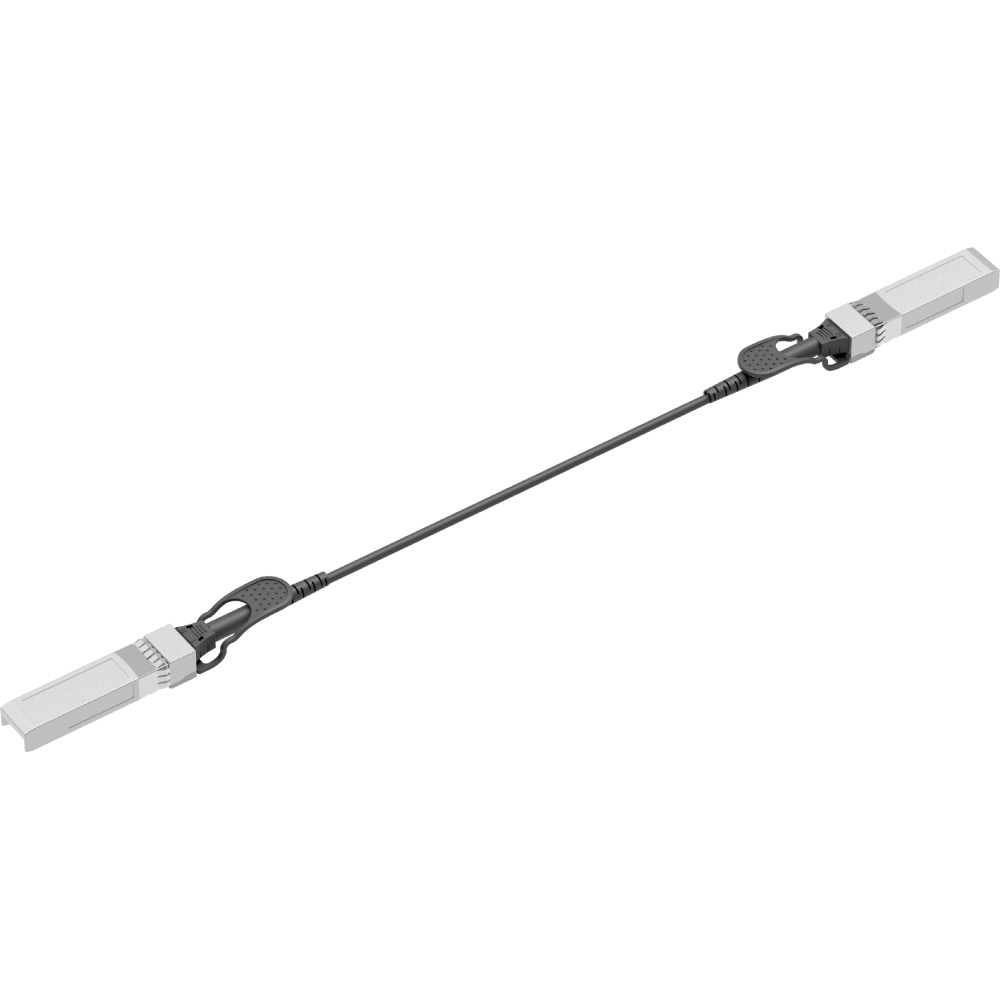

GIGALIGHT 25Gbps SFP28 Hardened Active Optical Cable
GIGALIGHT SFP28 Hardened Active Optical Cable is a cost-effective solution for short-distance and strengthened applications within racks and adjacent racks. It features a robust design with stainless steel metal tube, Kevlar strengthening, and LSZH jacket, supporting up to 70 meters on OM3 MMF.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

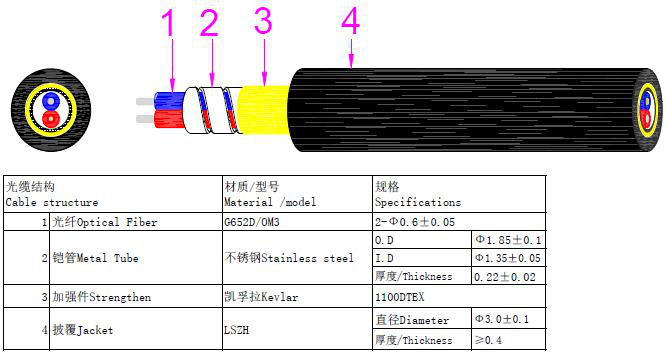

| Optical Fiber | G652D/OM3 |
| Metal Tube | Stainless steel, Φ1.85±0.1mm |
| Strengthen | Kevlar, 1100DTEX |
| Jacket | LSZH, Φ3.0±0.1mm, ≥0.4mm |
| Power Supply Voltage | 3.13-3.47V |
| Supply Current | 300mA |
| Channel Data Rate | 25.78Gbps |
| Optical Cable Outer Diameter | 3.0mm |
| Optical Cable Loss | 3.5dB/km OM3 |
| Tensile 1 | 300N Long Term |
| Tensile 2 | 600N Short Term |
| Crush Resistance 1 | 2000N/100mm Long Term |
| Crush Resistance 2 | 3000N/100mm Short Term |
| Data Rate | 25.78Gbps |
| Centre Wavelength | 840-860nm |
| Spectral Width (-20dB) | 0.6nm |
| Average Output Power | -8.4 to -2.4dBm |
| Optical Power OMA | -6.4 to 3dBm |
| Extinction Ratio | 2dB |
| Differential data input swing | 40-1000mV |
| Input differential impedance | 90-110Ω |
| TX Disable | 2.0V |
| TX Enable | 0.8V |
| TX Fault | 2.0V |
| TX Normal | 0.8V |
| Receiver Sensitivity (OMA) | -10dBm |
| Stressed Sensitivity (OMA) | -5.2dBm |
| Receiver Power (OMA) | 3dBm |
| Los De-assert | -13dBm |
| Los Assert | -30dBm |
| Los Hysteresis | 0.5dB |
| Differential Data Output | 300-850mV |
| Temperature | -40 to +85°C |
| Voltage | 3.0 to 3.6V |
| Bias Current | 0 to 20mA |
| TX Power | -8 to 3dBm |
| RX Power | -14 to 0dBm |
