GSS-MPO250-SRC

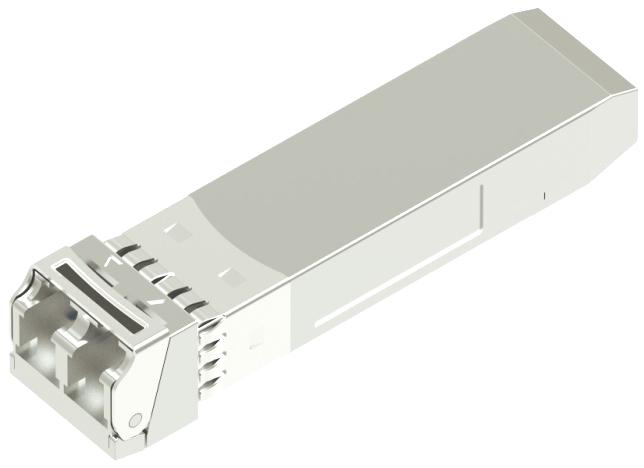

The GSS-MPO250-SRC is a high-performance, single-channel, pluggable SFP28 optical transceiver designed for short-range data communication and interconnect applications. It operates at 25Gbps and supports multimode fiber systems with a nominal wavelength of 850nm.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate (Gbps) | 25.78 |
| Centre Wavelength (nm) | 840-860 |
| Spectral Width (-20dB) | <0.6nm |
| Average Output Power (dBm) | -8.4 |
| Optical Power OMA (dBm) | -6.4 |
| Extinction Ratio (dB) | 2 |
| Differential Data Input Swing (mV) | 400 |
| Input Differential Impedance (Ω) | 90-100 |
| TX Disable Voltage (V) | 2.0 |
| TX Fault Voltage (V) | 2.0 |
| Receiver Power OMA (dBm) | -5.2 to 3 |
| Receiver Power (dBm) | -13 to -3 |
| Differential Data Output Swing (mV) | 300-850 |
| LOS High Voltage (V) | 2.0 |
| LOS Low Voltage (V) | 0.8 |
| Operating Case Temperature (°C) | 0 to +70 |
| Storage Temperature (°C) | -40 to +85 |
| Operating Humidity (%) | 5-85 |
| Power Supply Voltage (V) | 3.13-3.47 |
| Power Supply Current (mA) | 300 |
| Fiber Length on 50/125μm high-bandwidth (OM3 MMF) (m) | 70 |
| Fiber Length on 50/125μm high-bandwidth (OM4 MMF) (m) | 100 |
| Temperature Range (°C) | 0 to +70 |
| Voltage Range (V) | 3.0 to 3.6 |
| Bias Current (mA) | 0 to 20 |
| TX Power (dBm) | -8 to 3 |
| RX Power (dBm) | -14 to 0 |
