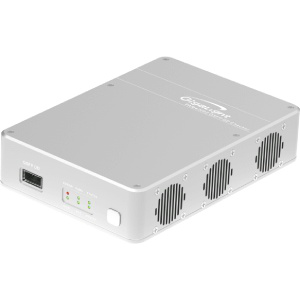

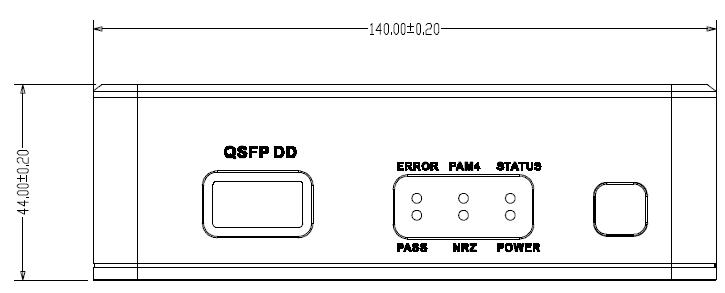

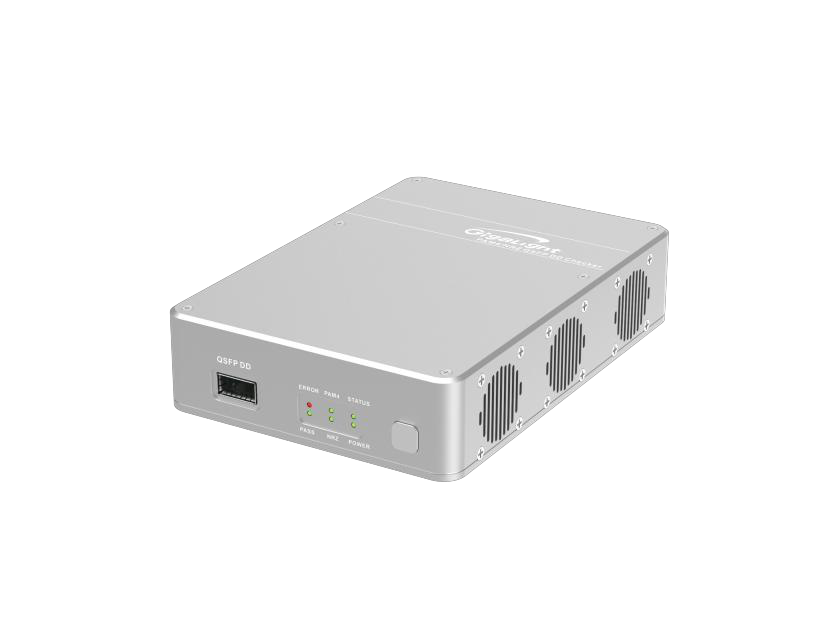

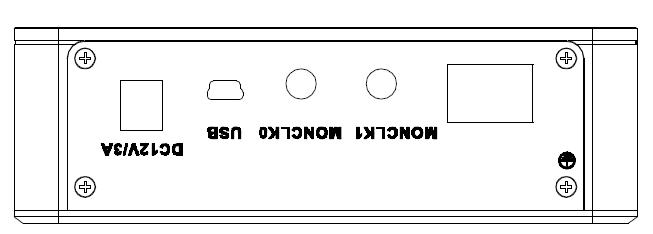

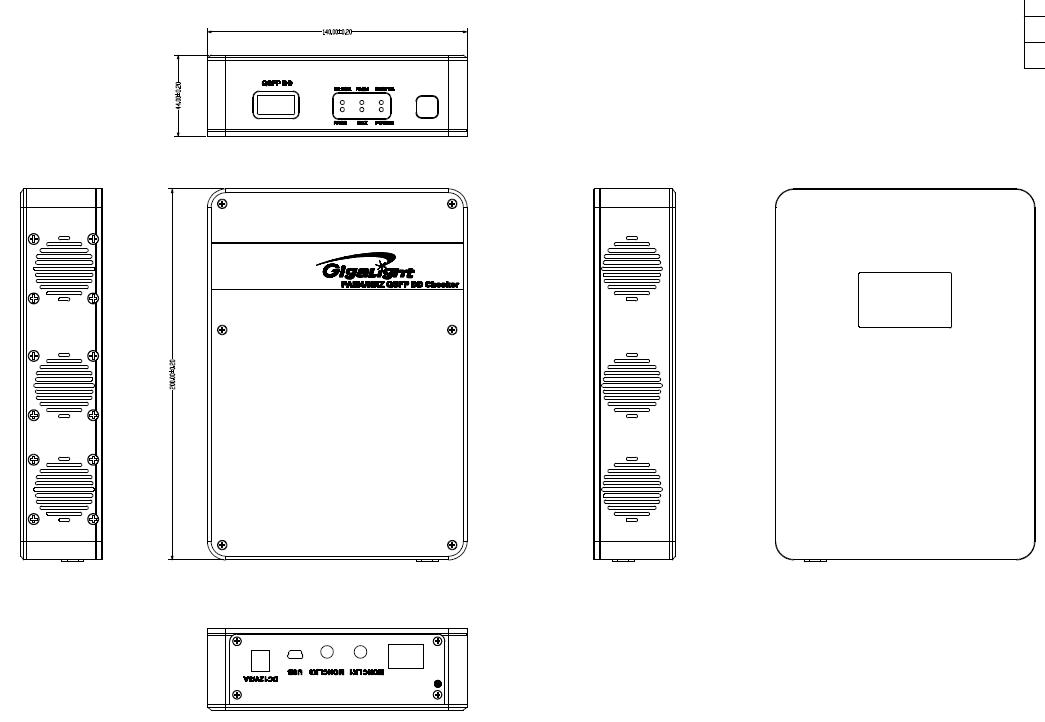

200G QSFP56 Checker
The 200G QSFP56 Checker is an advanced instrument designed to test QSFP modules, providing functionalities such as bit error rate testing, DDM information monitoring, and EEPROM data reading. It supports both NRZ and PAM4 transmission rates and offers a user-friendly GUI for efficient operation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 9-19V |
| Storage Temperature | -20-85°C |
| Operating Case Temperature | 0-70°C |
| Humidity (non-condensing) | 5-95% |
| Data Rate Per Lane | 25.78125Gbps NRZ, 26.5625GBd PAM4 |
| Power Dissipation | 25W |
| Differential Input Impedance | 90-110ohm |
| Differential Output Impedance | 90-110ohm |
| Differential Input Voltage Amplitude | 900mVp-p |
| Differential Output Voltage Amplitude | 900mVp-p |
| Skew | 300ps |
| Near-end Eye Width at 10^-6 probability | 0.265UI |
| Near-end Eye Height at 10^-6 probability | 70mV |
| Far-end Eye Width at 10^-6 probability | 0.20UI |
| Far-end Eye Height at 10^-6 probability | 30mV |
| Near-end Eye Linearity | 0.85 |
| QSFP Ports | QSFP |
| Transmission Rate | 25.78125Gbps NRZ, 26.5625GBd PAM4 |
| Module Power Measured | 0-4000mA |
| Accuracy | ±15% |
| Working Mode | NRZ and PAM4 |
