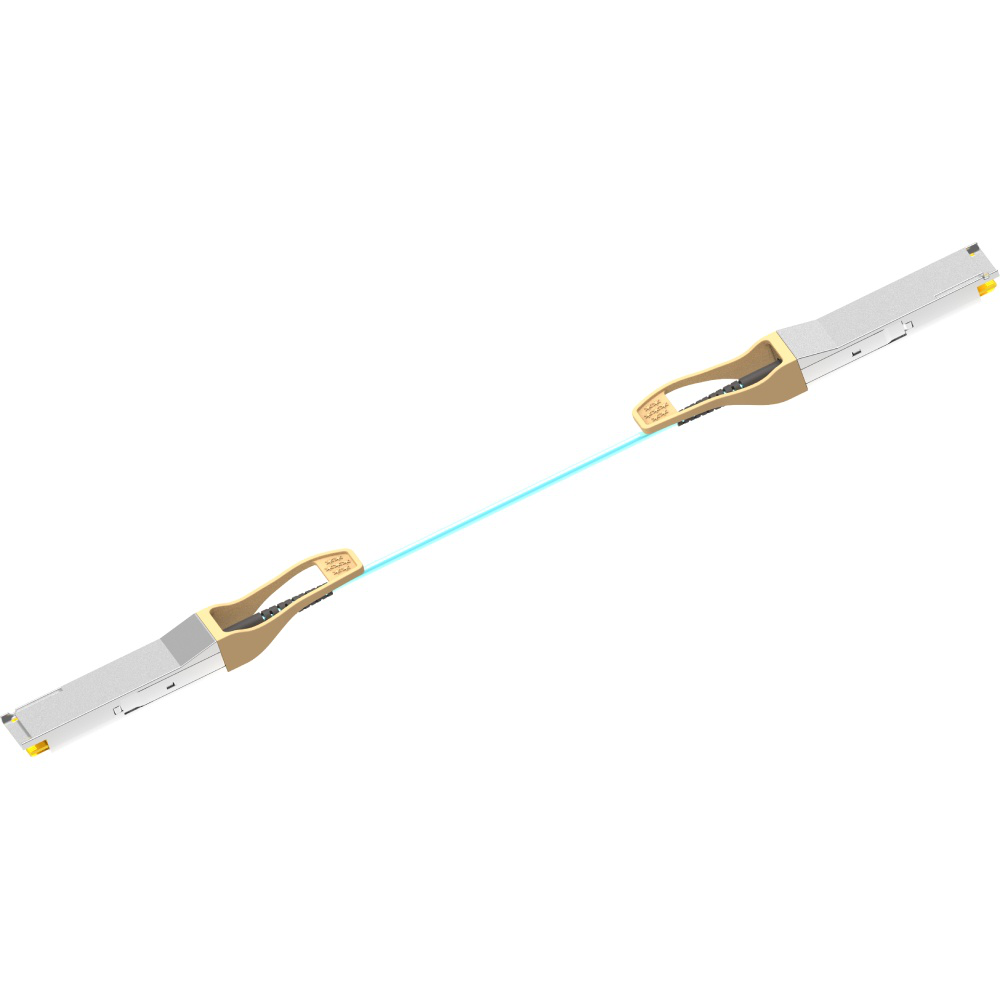

200G QSFP56 AOC Lite
The 200G QSFP56 AOC Lite is an active optical cable designed for high-speed data transmission in data centers and cloud networks. It supports up to 50Gbps data rate per channel using PAM4 modulation and integrates an 850nm VCSEL array and PD array.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Case Operating Temperature | 0~70°C |
| Storage Temperature Range | -40~85°C |
| Relative Humidity | 0~85% |
| Power Supply Voltage | 3.135~3.465V |
| Operating Case Temperature Range | 0~70°C |
| Bit Rate (Per Channel) | 26.5625Gbps |
| Supply Voltage | 3.135~3.465V |
| Power Consumption | 4.5W per end |
| Input differential impedance | 80~120Ω |
| Single Ended Data Input Swing | 90~500mVp-p |
| Transmit Disable Voltage | 2V |
| Transmit Enable Voltage | VEE~VEE+0.8V |
| Transmit Fault Assert Voltage | 2V |
| Transmit Fault De-Assert Voltage | VEE~VEE+0.8V |
| Single Ended Data Output Swing | 200~500mVp-p |
| LOS Fault Voltage | 2V |
| LOS Normal Voltage | VEE~VEE+0.8V |
| Differential Termination Mismatch | 10% |
| IIC Clock Frequency | 100~400kHz |
| Clock Stretching | 500μs |
Applications
Key Features
Datasheet
