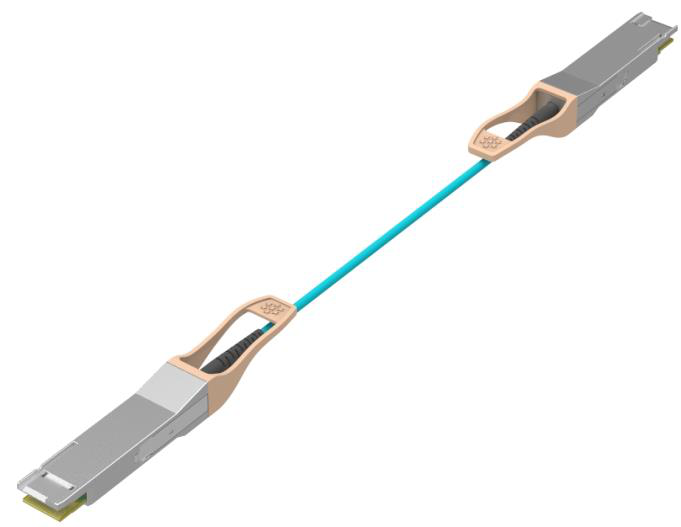

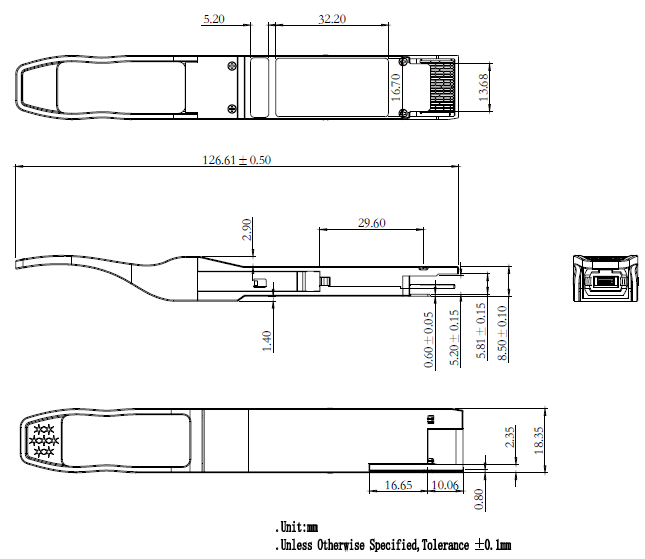

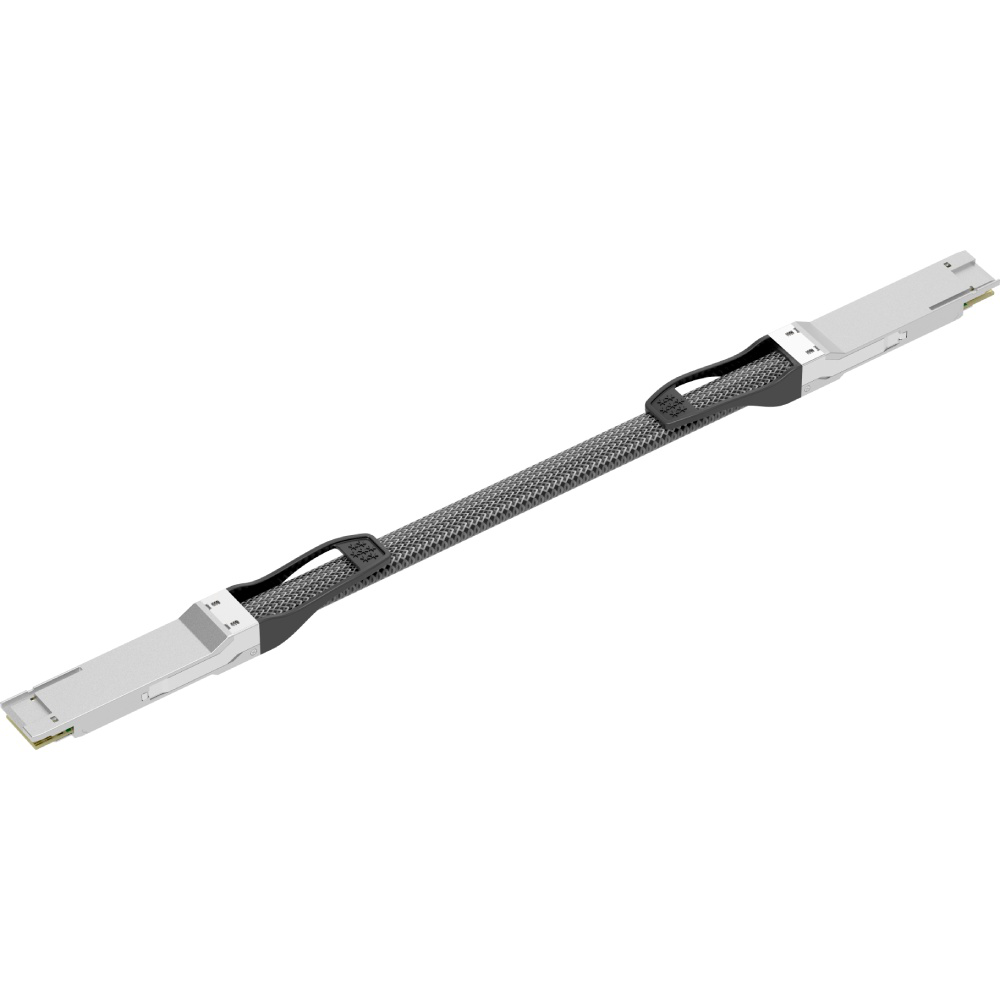

GIGALIGHT 2x100GBASE-SR4 QSFP-DD Active Optical Cable

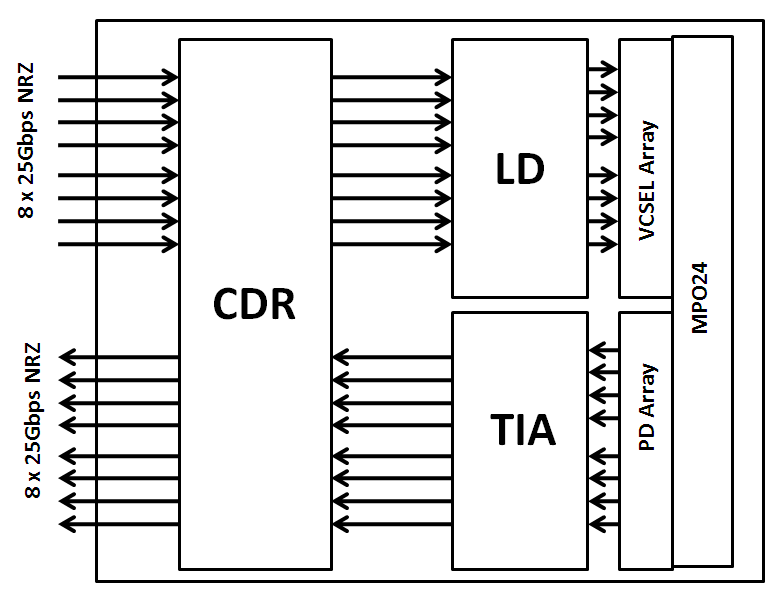

The GIGALIGHT 2x100GBASE-SR4 QSFP-DD Active Optical Cable is an eight-channel, pluggable, parallel, fiber-optic transceiver designed for double density 2x100 Gigabit Ethernet applications. It integrates eight data lanes in each direction with 8x25.78125Gbps bandwidth, operating over multimode fiber systems with a nominal wavelength of 850nm. It is ideal for short-range multi-lane data communication and interconnection applications.
Save to Favorites

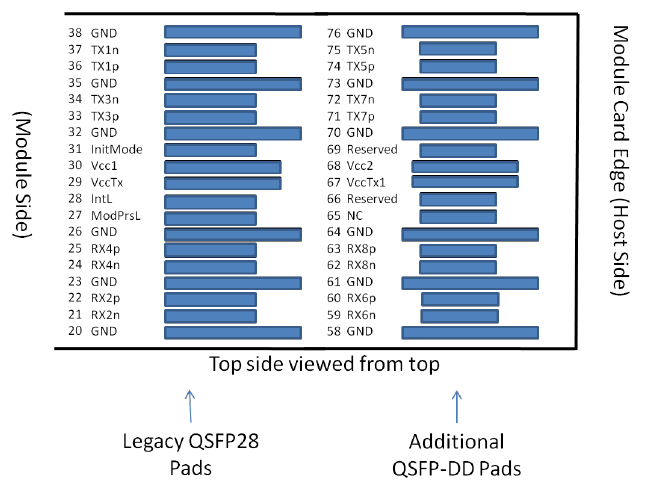

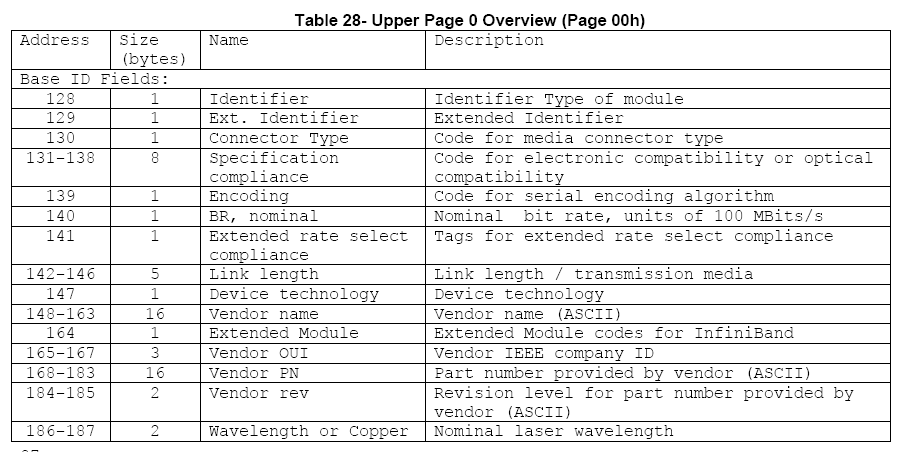

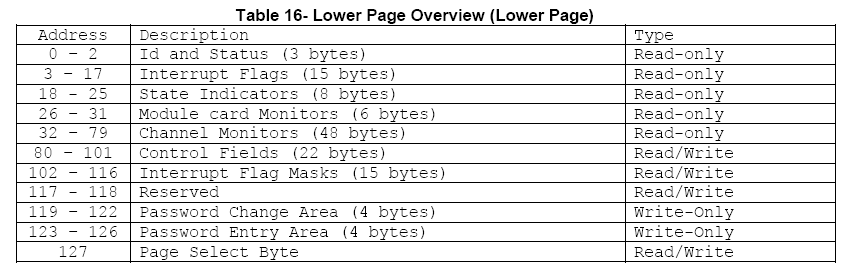

Overview

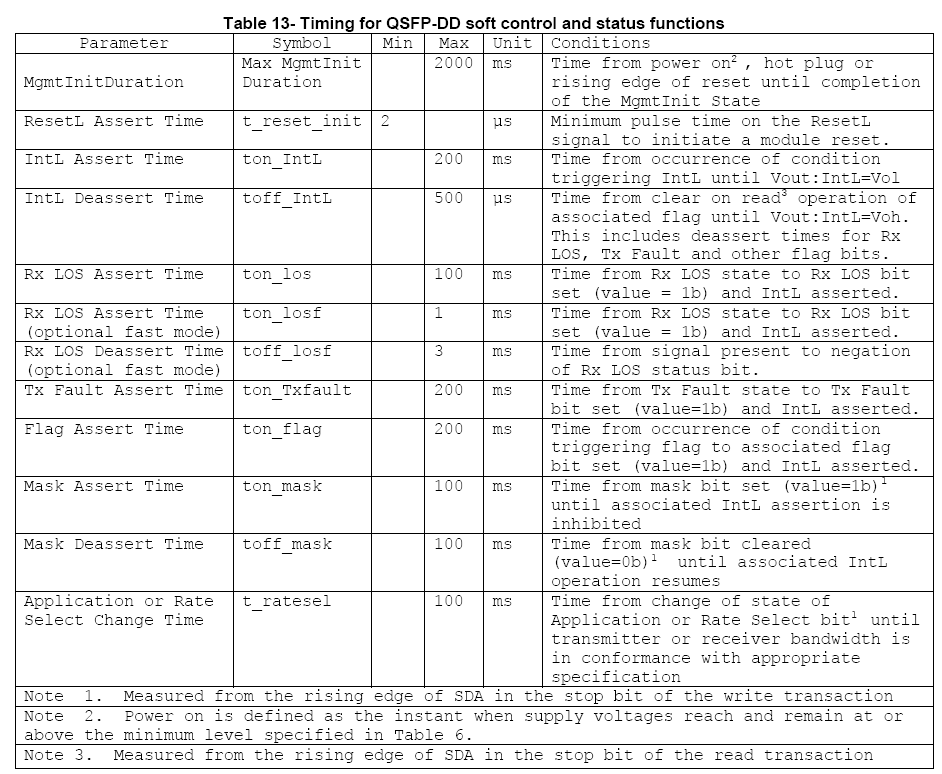

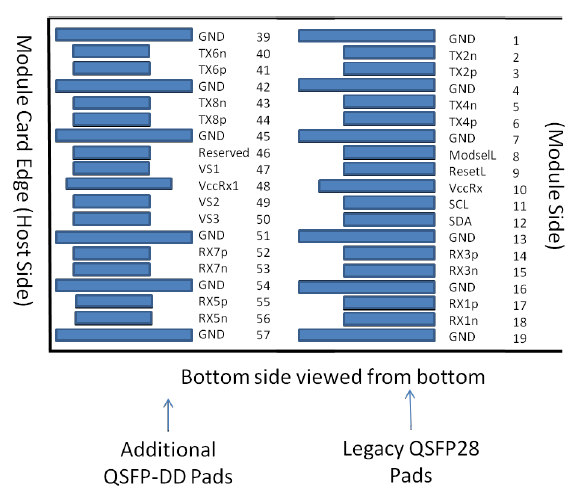

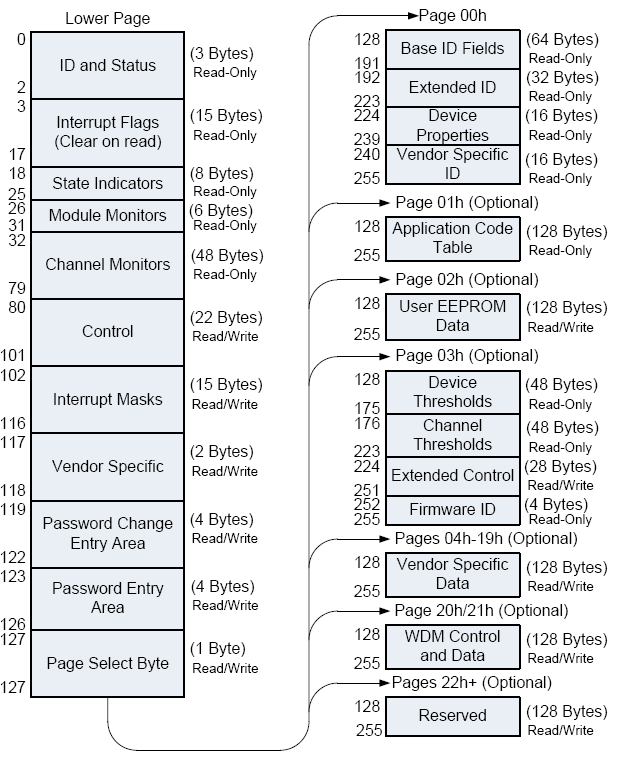

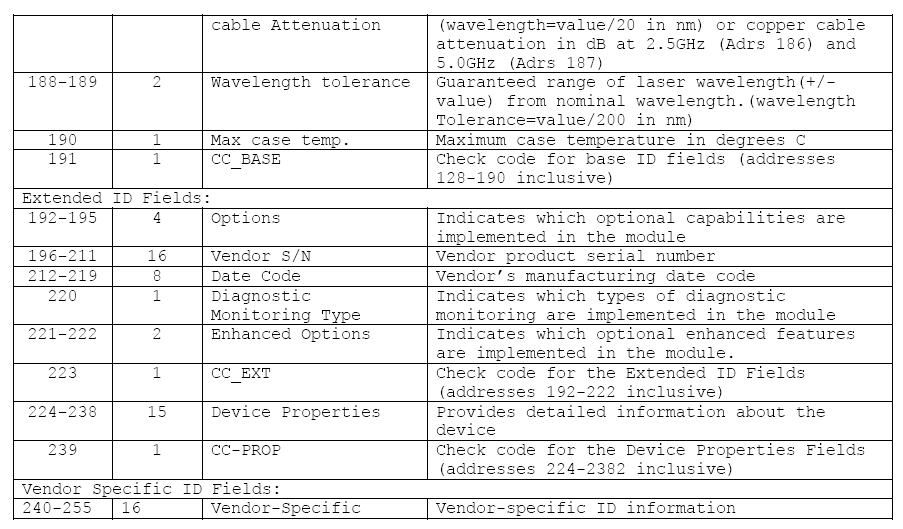

Specifications

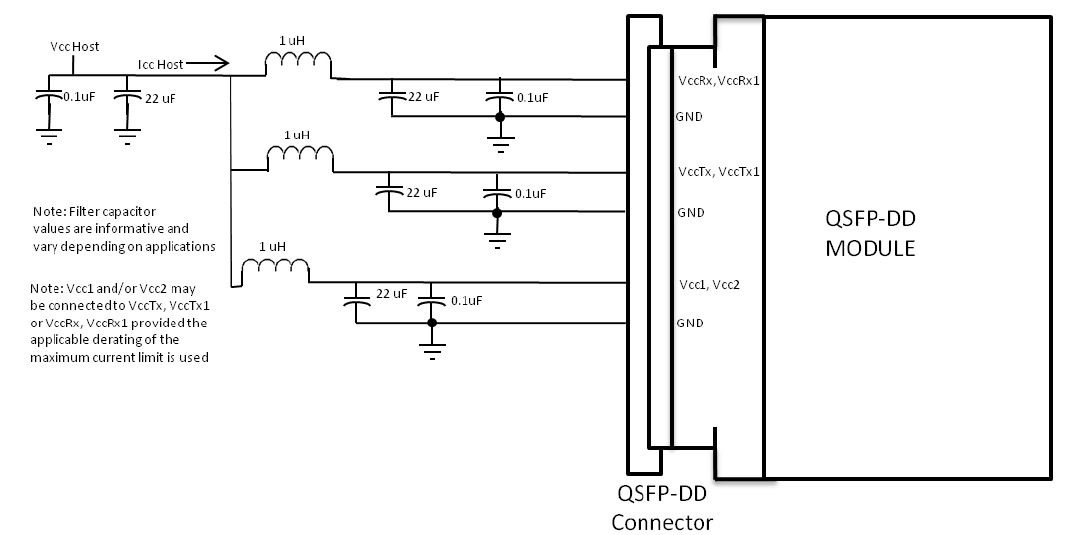

| Parameter | Value |
|---|---|
| Supply Voltage | -0.3~3.6V |
| Input Voltage | -0.3~Vcc+0.3V |
| Storage Temperature | -20~85°C |
| Case Operating Temperature | 0~70°C |
| Humidity (non-condensing) | 5~95% |
| Recommended Supply Voltage | 3.13~3.47V |
| Recommended Operating Case Temperature | 0~70°C |
| Recommended Data Rate Per Lane | 25.78125Gbps |
| Recommended Humidity | 5~85% |
| Recommended Power Dissipation | <4W |
| Recommended Fiber Bend Radius | 3cm |
| Differential Input Impedance | 90~110ohm |
| Differential Input Voltage Amplitude1 | 300~1100mVp-p |
| Differential Output Voltage Amplitude2 | 500~800mVp-p |
| Skew | 300ps |
| Bit Error Rate | 5E-5 |
| Input Logic Level High | VCC |
| Input Logic Level Low | 0~0.8V |
| Output Logic Level High | VCC-0.5V |
| Output Logic Level Low | 0~0.4V |
| Transmitter Center Wavelength | 840~860nm |
| Transmitter RMS Spectral Width | - |
| Average Launch Power (each lane) | -8.4~2.4dBm |
| Optical Modulation Amplitude (each lane) | -6.4~3.0dBm |
| Transmitter and Dispersion Eye Closure (each lane) | 4.3dB |
| Transmitter Extinction Ratio | 3dB |
| Average Launch Power of OFF Transmitter (each lane) | -30dBm |
| Receiver Center Wavelength | 840~860nm |
| Stressed Receiver Sensitivity in OMA2 | -5.2dBm |
| Average Power at Receiver | -10.3~2.4dBm |
| Receiver Reflectance | -12dBm |
| Receiver LOS Assert – OMA | -30dBm |
| Receiver LOS De-Assert – OMA | -7.5dBm |
| Receiver LOS Hysteresis | 0.5dB |
