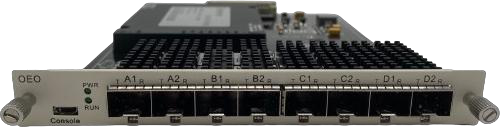

1G&10G SFP OEO Card
The 1G&10G SFP OEO Card is an optical signal regeneration conversion device based on the O-E-O principle. It is designed for optical signal wavelength conversion, single-mode conversion, relay amplification, and signal regeneration, making it widely applicable in optical communication fields.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Working Wavelength 9.95-11.3Gbps 850nm | 850 |
| Working Wavelength 9.95-11.3Gbps 1310nm | 1310 |
| Working Wavelength 9.95-11.3Gbps 1550/CWDM/DWDM 1550nm | 1550/CWDM/DWDM 1550 |
| Transmission Distance 9.95-11.3Gbps 850nm | 0.3km |
| Transmission Distance 9.95-11.3Gbps 1310nm | 10km |
| Transmission Distance 9.95-11.3Gbps 1550/CWDM/DWDM 1550nm | 40/80km |
| Input Power Range (dBm) 9.95-11.3Gbps 850nm | -11~1 |
| Input Power Range (dBm) 9.95-11.3Gbps 1310nm | -14~0 |
| Input Power Range (dBm) 9.95-11.3Gbps 1550/CWDM/DWDM 1550nm | -16~0/-24~7 |
| Output Power Range (dBm) 9.95-11.3Gbps 850nm | -6~1 |
| Output Power Range (dBm) 9.95-11.3Gbps 1310nm | -6~0 |
| Output Power Range (dBm) 9.95-11.3Gbps 1550/CWDM/DWDM 1550nm | -1~+3/0~+4 |
| Working Wavelength 2.5Gbps 1310nm | 1310 |
| Working Wavelength 2.5Gbps 1550/CWDM/DWDM 1550nm | 1550/CWDM/DWDM 1550 |
| Transmission Distance 2.5Gbps 1310nm | 20km |
| Transmission Distance 2.5Gbps 1550/CWDM/DWDM 1550nm | 40/80/120km |
| Input Power Range (dBm) 2.5Gbps 1310nm | -18~0 |
| Input Power Range (dBm) 2.5Gbps 1550/CWDM/DWDM 1550nm | -28~10/-30~10 |
| Output Power Range (dBm) 2.5Gbps 1310nm | -5~0/-2~+3 |
| Output Power Range (dBm) 2.5Gbps 1550/CWDM/DWDM 1550nm | 0~+5 |
| Working Wavelength 1.25Gbps 850nm | 850 |
| Working Wavelength 1.25Gbps 1310nm | 1310 |
| Working Wavelength 1.25Gbps 1550/CWDM/DWDM 1550nm | 1550/CWDM/DWDM 1550 |
| Transmission Distance 1.25Gbps 850nm | 0.55km |
| Transmission Distance 1.25Gbps 1310nm | 10km |
| Transmission Distance 1.25Gbps 1550/CWDM/DWDM 1550nm | 40/80/120km |
| Input Power Range (dBm) 1.25Gbps 850nm | -18~3 |
| Input Power Range (dBm) 1.25Gbps 1310nm | -24~1 |
| Input Power Range (dBm) 1.25Gbps 1550/CWDM/DWDM 1550nm | -24~1/-31~9 |
| Output Power Range (dBm) 1.25Gbps 850nm | -9~3 |
| Output Power Range (dBm) 1.25Gbps 1310nm | -5~0 |
| Output Power Range (dBm) 1.25Gbps 1550/CWDM/DWDM 1550nm | 0~+5 |
| Working Wavelength 622Mbps 1310nm | 1310 |
| Working Wavelength 622Mbps 1550/CWDM/DWDM 1550nm | 1550/CWDM/DWDM 1550 |
| Transmission Distance 622Mbps 1310nm | 20km |
| Transmission Distance 622Mbps 1550/CWDM/DWDM 1550nm | 40/80km |
| Input Power Range (dBm) 622Mbps 1310nm | -28~8 |
| Input Power Range (dBm) 622Mbps 1550/CWDM/DWDM 1550nm | -28~8/-31~9 |
| Output Power Range (dBm) 622Mbps 1310nm | -14~8/-5~0 |
| Output Power Range (dBm) 622Mbps 1550/CWDM/DWDM 1550nm | -3~+2/0~+5 |
| Working Wavelength 155Mbps 1310nm | 1310 |
| Working Wavelength 155Mbps 1550/CWDM 1550nm | 1550/CWDM 1550 |
| Transmission Distance 155Mbps 1310nm | 20km |
| Transmission Distance 155Mbps 1550/CWDM 1550nm | 40/80/120km |
| Input Power Range (dBm) 155Mbps 1310nm | -32~3 |
| Input Power Range (dBm) 155Mbps 1550/CWDM 1550nm | -34~9/-34~9 |
| Output Power Range (dBm) 155Mbps 1310nm | -14~8/-7~2 |
| Output Power Range (dBm) 155Mbps 1550/CWDM 1550nm | -5~0/0~+5 |
| Extinction Ratio | ≥10 |
| Dithering Performance | Conform ITU-T G.825 (2000) |
| SMSR | ≥30 |
| Consumption | <15 |
