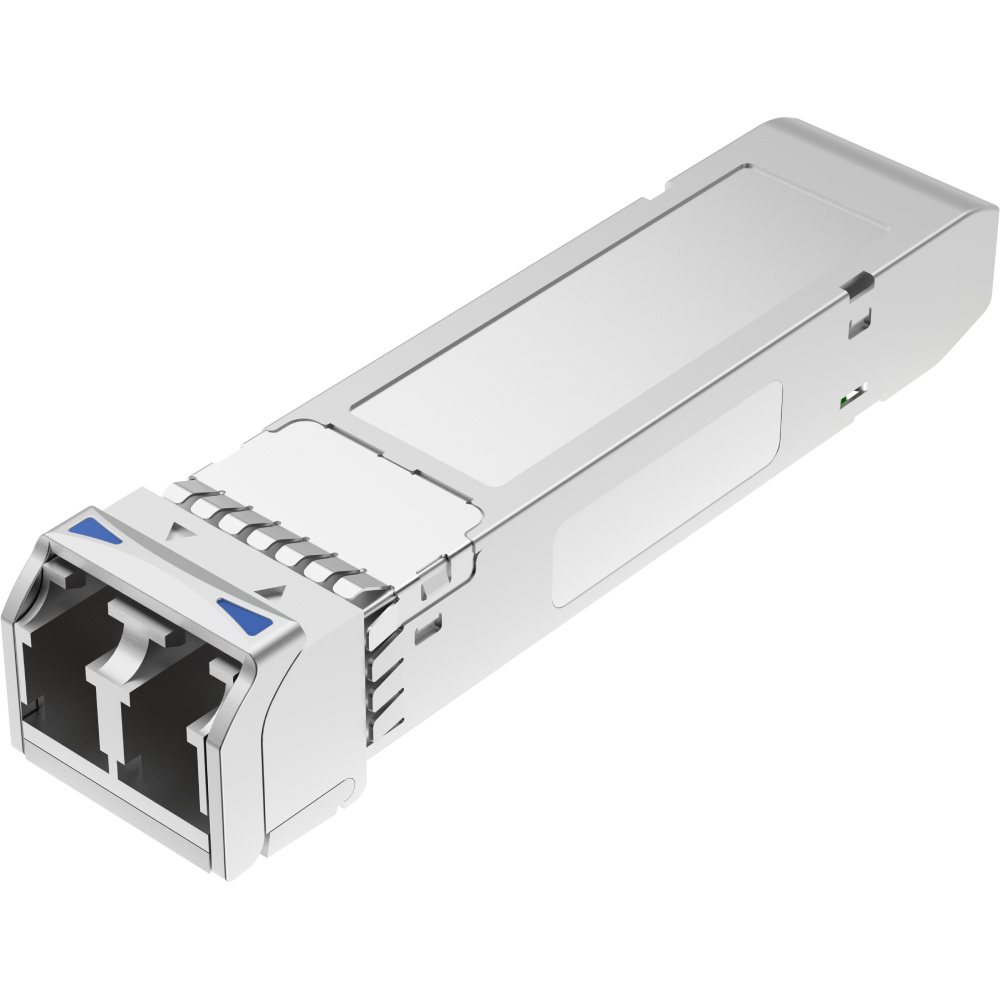

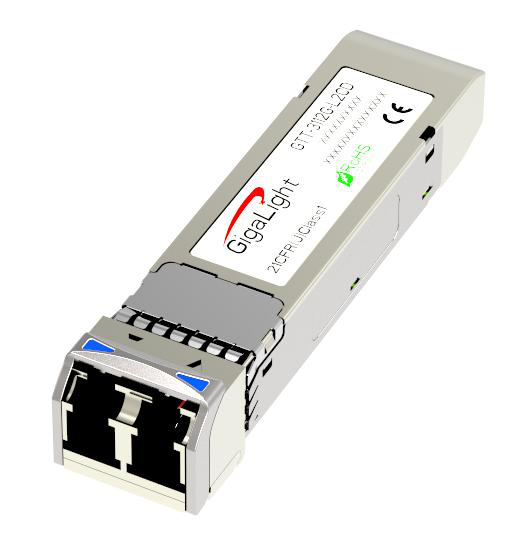

12Gbps Video SFP Optical Transceiver, 20km Reach GHP-3112G-L2CDM
Gigalight's Video transceiver is designed to transmit/receive data rates from 50Mbps to 11.88Gbps, compliant with SMPTE standards for UHD-SDI, HD-SDI, and SD-SDI applications. It supports SDI pathological patterns and includes a DFB laser, PIN photodiode, TIA preamplifier, reclocker, and MCU controller.
Save to Favorites
Overview

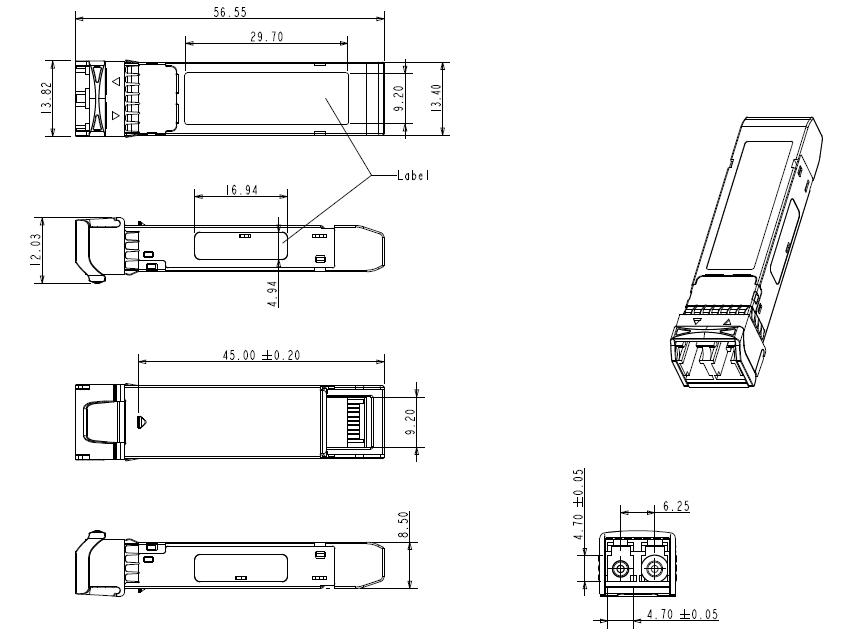

Specifications

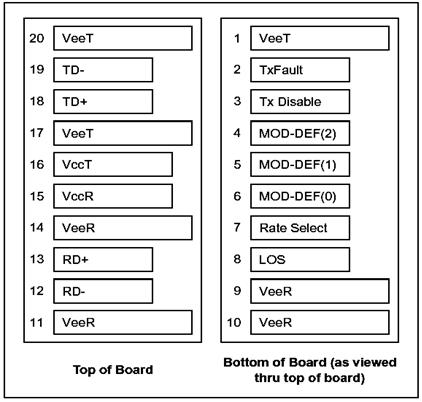

| Parameter | Value |
|---|---|
| Operating Case Temperature | 0~+70°C |
| Power Supply Voltage | 3.13~3.47V |
| Power Supply Current | 300~450mA |
| Data Rate | 12Gbps |
| Center Wavelength | 1300~1310~1320nm |
| Spectral Width (-20dB) | 1nm |
| Side Mode Suppression Ratio (SMSR) | 30dB |
| Average Output Power | -3~1dBm |
| Extinction Ratio | 3.5dB |
| Data Input Swing Differential | 400~1000mV |
| Input differential impedance | 90~100~110Ω |
| Receiver Sensitivity @11.88Gbps | -11dBm |
| Receiver Sensitivity @5.94Gbps | -13dBm |
| Receiver Sensitivity @2.97Gbps | -15dBm |
| Receiver Overload | 1dBm |
| Los Assert | -28dBm |
| Los Hysteresis | 4dB |
| Data Output Swing Differential | 400~800mV |
| LOS High | 2.0V |
| LOS Low | 0.8V |
| TX Disable Negate Time | 1ms |
| Tx Disable Assert Time | 10μs |
| Time To Initialize, including Reset of Tx Fault | 300ms |
| Tx Fault Assert Time | 100μs |
| Tx Disable To Reset | 10μs |
| LOS Assert Time | 100μs |
| LOS De-assert Time | 100μs |
| Serial ID Clock Rate | 100kHz |
| MOD_DEF (0:2)-High | 2V |
| MOD_DEF (0:2)-Low | 0.8V |
Applications
Key Features
Datasheet
