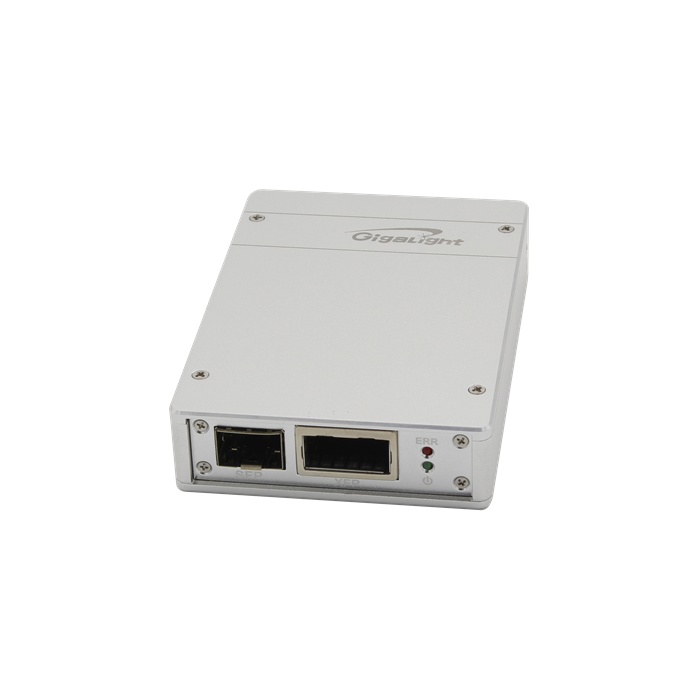

10G SFP+/XFP Tunable Box

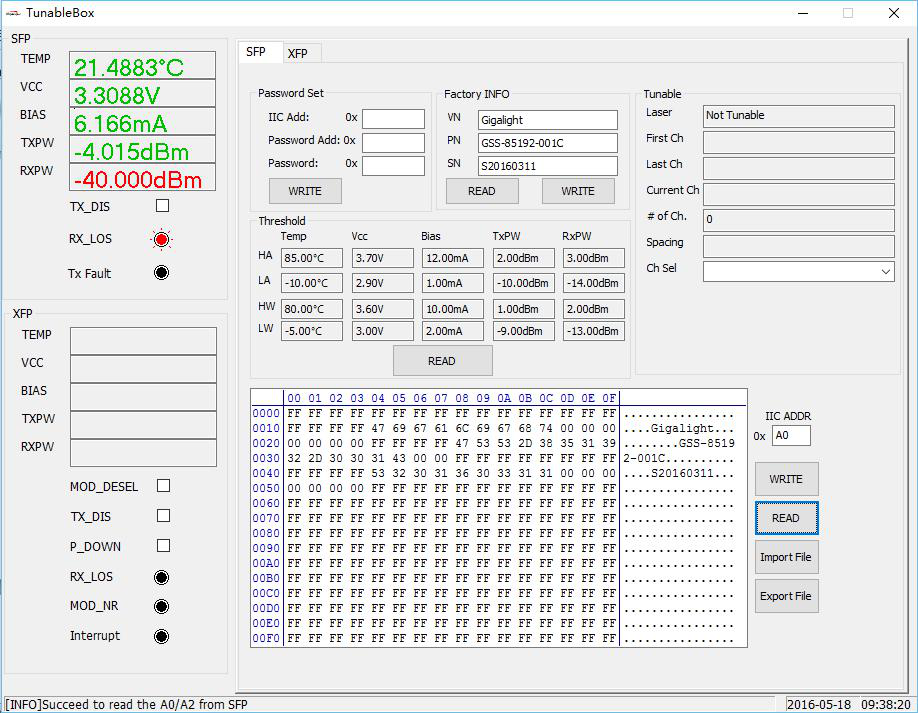

The Tunable Box is designed to change the wavelength of tunable SFP+ and XFP modules, monitor DDM information, and read/write the internal memory EEPROM of the module. It displays details of the EEPROM, such as part number, vendor name, description, and range, and allows users to modify the EEPROM with the write-protect password.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage (V) | -0.5~6 |
| Storage Temperature (°C) | -10~+70 |
| Operating Case Temperature (°C) | 0~+50 |
| Operating Humidity | 5~75non-condensing |
| Power Supply Voltage (V) | 4.5~5~5.5 |

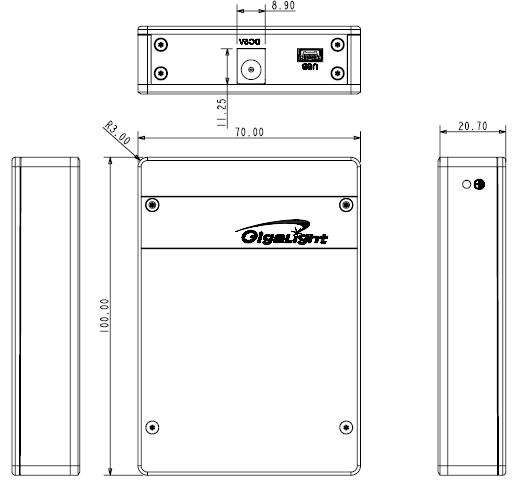

| Physical Dimensions (mm) | 100(W)×70(D)×21(H) |
